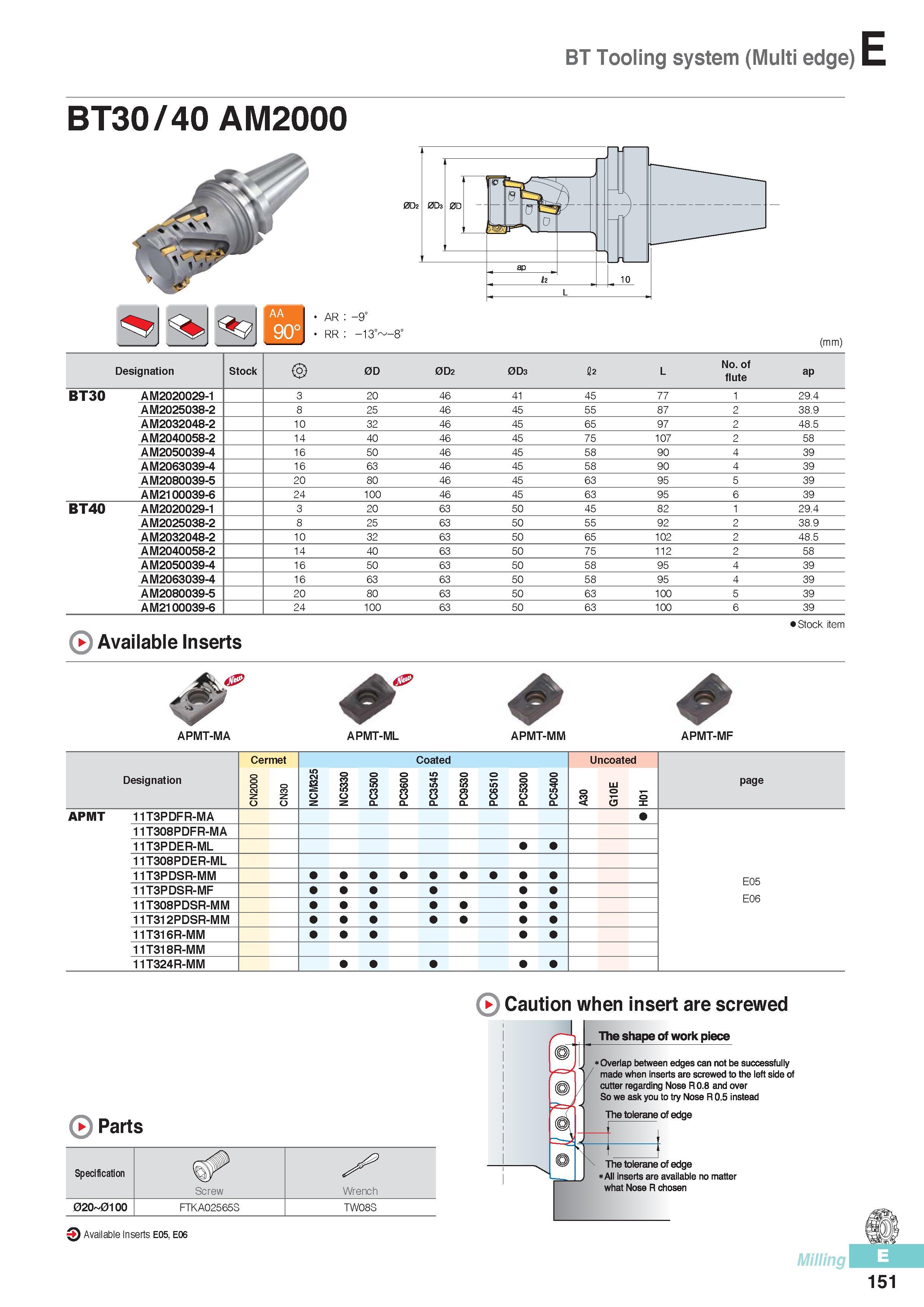

BT Tooling system (Multi edge) BT30 /40 AM2000 AR -9° RR -13° -8 (mm) Designation Stock 0D 0D2 0D3 12 L No. of flute ap BT30 AM2020029-1 3 20 46 41 45 77 1 29.4 AM2025038-2 8 25 46 45 55 87 2 38.9 AM2032048-2 10 32 46 45 65 97 2 48.5 AM2040058-2 14 40 46 45 75 107 2 58 AM2050039-4 16 50 46 45 58 90 4 39 AM2063039-4 16 63 46 45 58 90 4 39 AM2080039-5 20 80 46 45 63 95 5 39 AM2100039-6 24 100 46 45 63 95 6 39 BT40 AM2020029-1 3 20 63 50 45 82 1 29.4 AM2025038-2 8 25 63 50 55 92 2 38.9 AM2032048-2 10 32 63 50 65 102 2 48.5 AM2040058-2 14 40 63 50 75 112 2 58 AM2050039-4 16 50 63 50 58 95 4 39 AM2063039-4 16 63 63 50 58 95 4 39 AM2080039-5 20 80 63 50 63 100 5 39 AM2100039-6 24 100 63 50 63 100 6 39 Available Inserts Stock item A APMT-MA APMT-ML APMT-MM APMT-MF Cermet Coated Uncoated Designation CN2000 CN30 NCM325 NC5330 PC3500 PC3600 PC3545 PC9530 PC6510 PC5300 PC5400 o 3 G10E 01 X page APMT 11T3PDFR-MA E05 E06 11T308PDFR-MA 11T3PDER-ML 11T308PDER-ML 11T3PDSR-MM 11T3PDSR-MF 11T308PDSR-MM 11T312PDSR-MM 11T316R-MM 11T318R-MM 11T324R-MM > Parts Specification Screw Wrench 020 0100 FTKA02565S TW08S O Available Inserts E05, E06 Caution when insert are screwed A The shape of work piece Overlap between edges can not be successfully made when inserts are screwed to the left side of cutter regarding Nose R 0.8 and over So we ask you to try Nose R 0.5 instead The tolerane of edge The tolerane of edge All inserts are available no matter what Nose R chosen Milling 151
