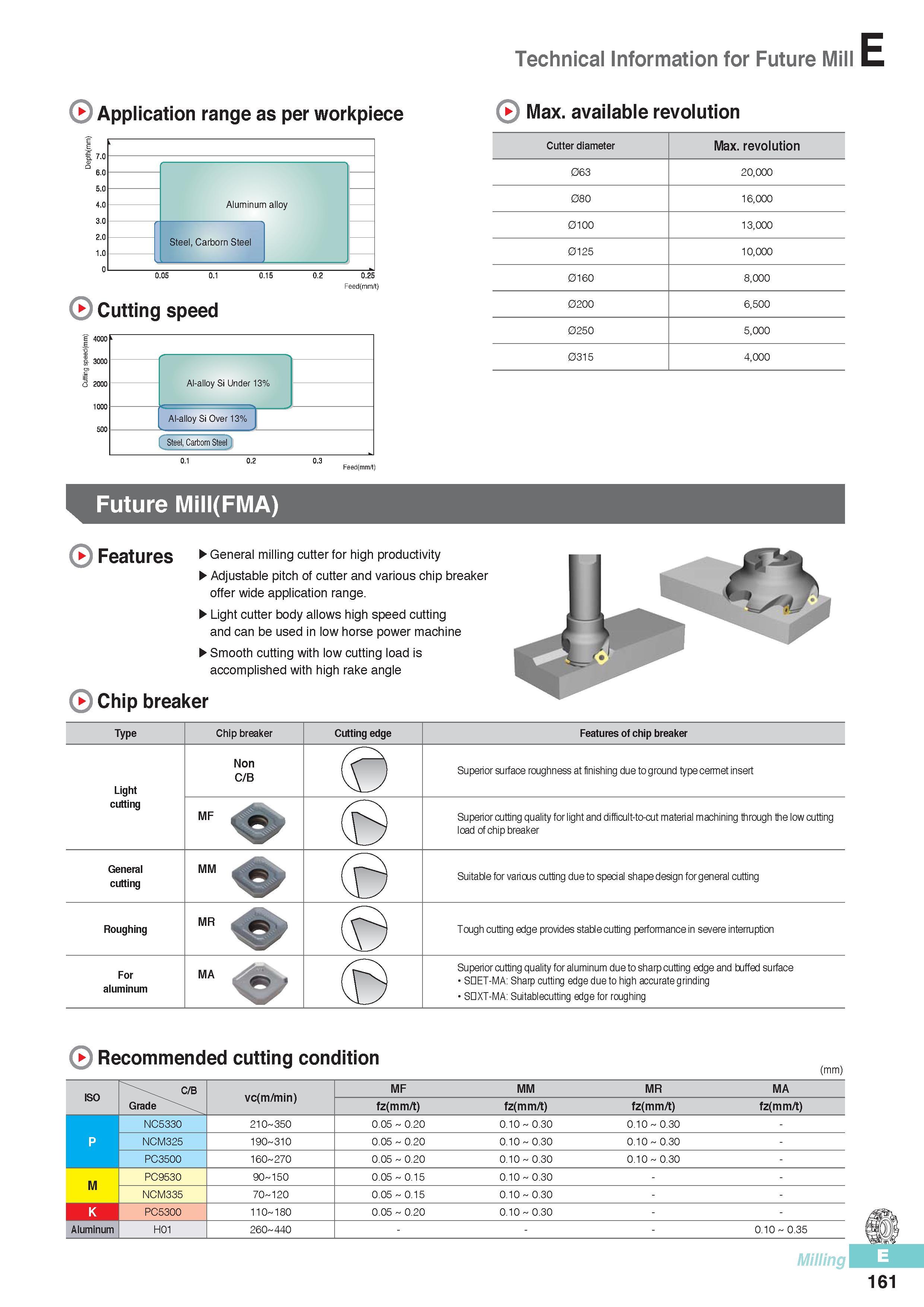

Technical Information for Future Mill Application range as per workpiece Max. available revolution 7.0 B-U 5.0 4.0 3.0 2.0 1 n 0 Cutting speed E 4000 12 3000 3 2000 1000 500 Aluminum alloy Steel, Carborn Steel 0.25 Feed(mm/t) Al-alloy Si Under 13% Al-alloy Si Over 13% Steel, Carborn Steel Cutter diameter Max. revolution 063 20,000 080 16,000 0100 13,000 0125 10,000 0160 8,000 0200 6,500 0250 5,000 0315 4,000 Future Mill(FMA) Features General milling cutter for high productivity Adjustable pitch of cutter and various chip breaker offer wide application range. Light cutter body allows high speed cutting and can be used in low horse power machine Smooth cutting with low cutting load is accomplished with high rake angle Chip breaker Type Chip breaker Cutting edge Features of chip breaker Non C/B Superior surface roughness at finishing due to ground type cermet insert Light vl cutting MF Superior cutting quality for light and difficult-to-cut material machining through the low cutting load of chip breaker General cutting V Suitable for various cutting due to special shape design for general cutting Roughing MR Tough cutting edge provides stable cutting performance in severe interruption For aluminum MA Superior cutting quality for aluminum due to sharp cutting edge and buffed surface S0ET-MA: Sharp cutting edgedueto high accurate grinding S0XT-MA: Suitabiecutting edge for roughing Feed(mm/t) Recommended cutting condition (mm) ISO C/B vc(m/min) MF MM MR MA Grade fz(mm/t) fz(mm/t) fz(mm/t) fz(mm/t) NC5330 210 350 0.05 0.20 0.10 0.30 0.10 0.30 - P NCM325 190 310 0.05 0.20 0.10 0.30 0.10 0.30 - PC3500 160 270 0.05 0.20 0.10 0.30 0.10 0.30 - M PC9530 90 150 0.05 0.15 0.10 0.30 NCM335 70 120 0.05 0.15 0.10 0.30 K PC5300 110 180 0.05 0.20 0.10 0.30 Aluminum H01 260 440 - 0.10 0.35 Milling 161
