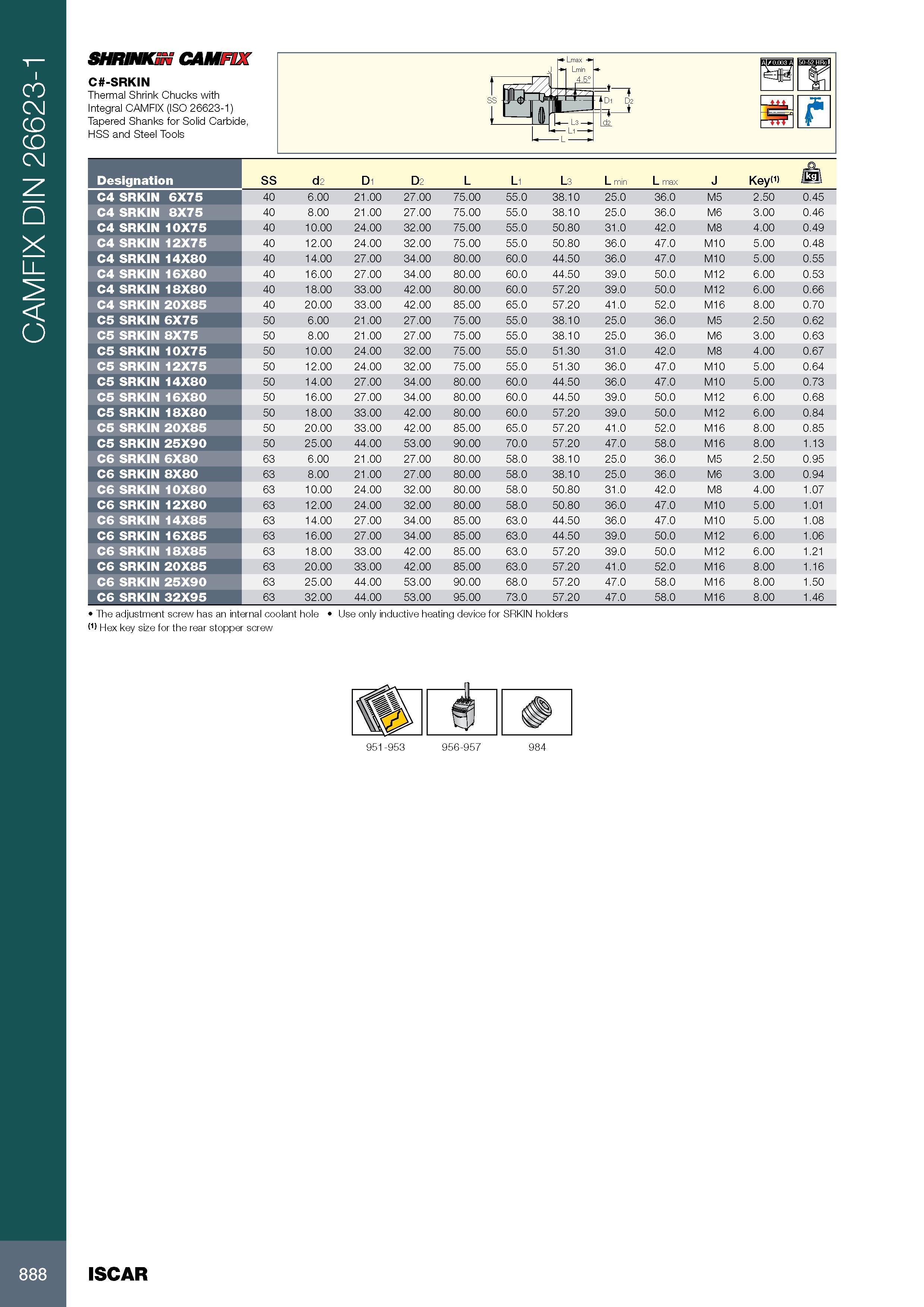

CAMFIX DIN 26623-1 SHRINKiN CAMFIX C -SRKIN Thermal Shrink Chucks with Integral CAMFIX (ISO 26623-1) Tapered Shanks for Solid Carbide, HSS and Steel Tools m in D2 Обозначение Designation SS d2 D1 D2 L L1 L3 L min L max J Key 1) /k l\ C4 SRKIN 6X75 40 6.00 21.00 27.00 75.00 55.0 38.10 25.0 36.0 M5 2.50 0.45 C4 SRKIN 8X75 40 8.00 21.00 27.00 75.00 55.0 38.10 25.0 36.0 M6 3.00 0.46 C4 SRKIN 10X75 40 10.00 24.00 32.00 75.00 55.0 50.80 31.0 42.0 M8 4.00 0.49 C4 SRKIN 12X75 40 12.00 24.00 32.00 75.00 55.0 50.80 36.0 47.0 M10 5.00 0.48 C4 SRKIN 14X80 40 14.00 27.00 34.00 80.00 60.0 44.50 36.0 47.0 M10 5.00 0.55 C4 SRKIN 16X80 40 16.00 27.00 34.00 80.00 60.0 44.50 39.0 50.0 M12 6.00 0.53 C4 SRKIN 18X80 40 18.00 33.00 42.00 80.00 60.0 57.20 39.0 50.0 M12 6.00 0.66 C4 SRKIN 20X85 40 20.00 33.00 42.00 85.00 65.0 57.20 41.0 52.0 M16 8.00 0.70 C5 SRKIN 6X75 50 6.00 21.00 27.00 75.00 55.0 38.10 25.0 36.0 M5 2.50 0.62 C5 SRKIN 8X75 50 8.00 21.00 27.00 75.00 55.0 38.10 25.0 36.0 M6 3.00 0.63 C5 SRKIN 10X75 50 10.00 24.00 32.00 75.00 55.0 51.30 31.0 42.0 M8 4.00 0.67 C5 SRKIN 12X75 50 12.00 24.00 32.00 75.00 55.0 51.30 36.0 47.0 M10 5.00 0.64 C5 SRKIN 14X80 50 14.00 27.00 34.00 80.00 60.0 44.50 36.0 47.0 M10 5.00 0.73 C5 SRKIN 16X80 50 16.00 27.00 34.00 80.00 60.0 44.50 39.0 50.0 M12 6.00 0.68 C5 SRKIN 18X80 50 18.00 33.00 42.00 80.00 60.0 57.20 39.0 50.0 M12 6.00 0.84 C5 SRKIN 20X85 50 20.00 33.00 42.00 85.00 65.0 57.20 41.0 52.0 M16 8.00 0.85 C5 SRKIN 25X90 50 25.00 44.00 53.00 90.00 70.0 57.20 47.0 58.0 M16 8.00 1.13 C6 SRKIN 6X80 63 6.00 21.00 27.00 80.00 58.0 38.10 25.0 36.0 M5 2.50 0.95 C6 SRKIN 8X80 63 8.00 21.00 27.00 80.00 58.0 38.10 25.0 36.0 M6 3.00 0.94 C6 SRKIN 10X80 63 10.00 24.00 32.00 80.00 58.0 50.80 31.0 42.0 M8 4.00 1.07 C6 SRKIN 12X80 63 12.00 24.00 32.00 80.00 58.0 50.80 36.0 47.0 M10 5.00 1.01 C6 SRKIN 14X85 63 14.00 27.00 34.00 85.00 63.0 44.50 36.0 47.0 M10 5.00 1.08 C6 SRKIN 16X85 63 16.00 27.00 34.00 85.00 63.0 44.50 39.0 50.0 M12 6.00 1.06 C6 SRKIN 18X85 63 18.00 33.00 42.00 85.00 63.0 57.20 39.0 50.0 M12 6.00 1.21 C6 SRKIN 20X85 63 20.00 33.00 42.00 85.00 63.0 57.20 41.0 52.0 M16 8.00 1.16 C6 SRKIN 25X90 63 25.00 44.00 53.00 90.00 68.0 57.20 47.0 58.0 M16 8.00 1.50 C6 SRKIN 32X95 63 32.00 44.00 53.00 95.00 73.0 57.20 47.0 58.0 M16 8.00 1.46 The adjustment screw has an internal coolant hole (1) Hex key size for the rear stopper screw Use only inductive heating device for SRKIN holders 888 ISCAR
