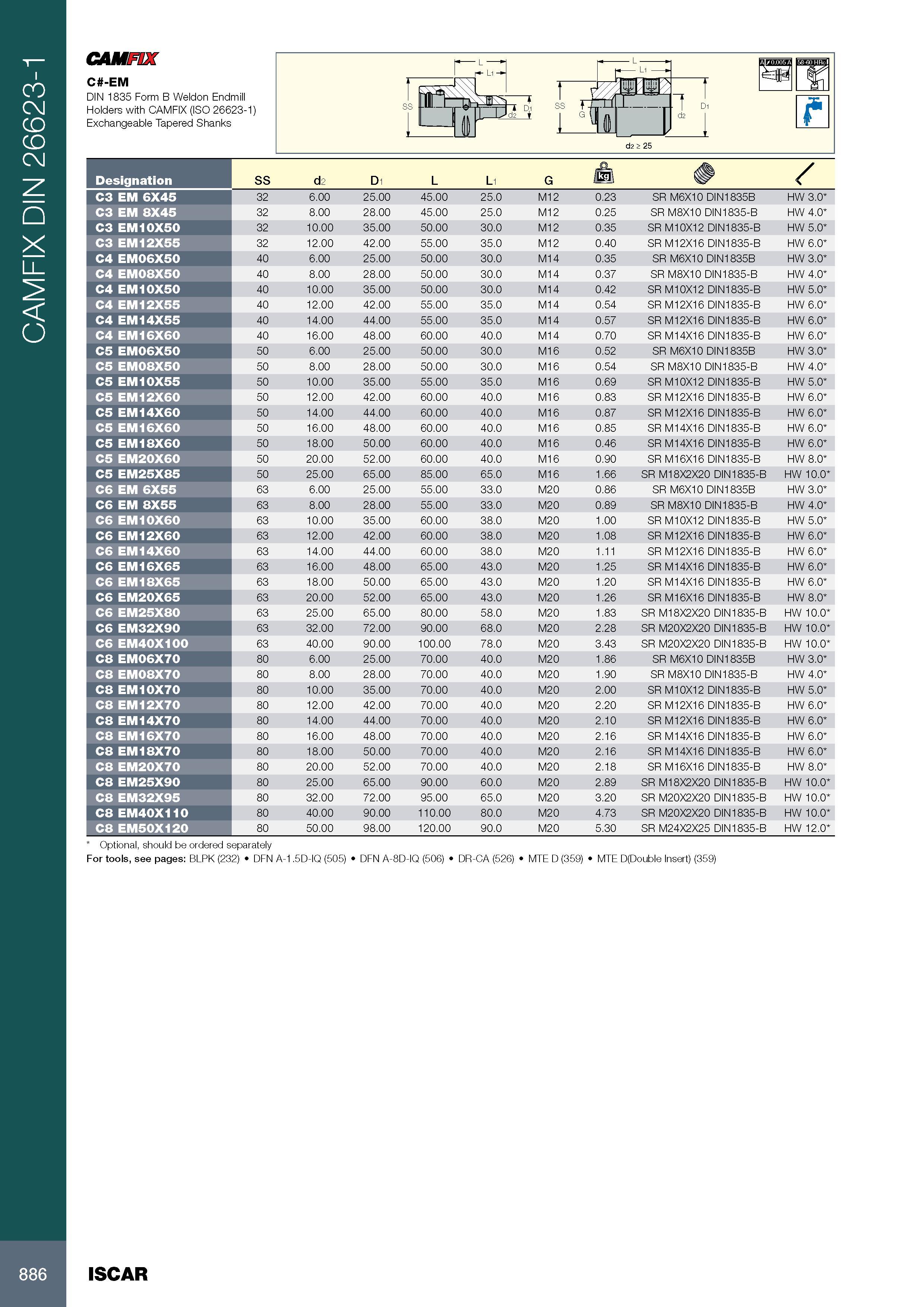

CAMFIX DIN 26623-1 CAMFIX C -EM DIN 1835 Form B Weldon Endmill Holders with CAMFIX (ISO 26623-1) Exchangeable Tapered Shanks Обозначение Designation SS d2 D1 L L1 G / kgi\ / C3 EM 6X45 32 6.00 25.00 45.00 25.0 M12 0.23 SR M6X10 DIN1835B HW 3.0 C3 EM 8X45 32 8.00 28.00 45.00 25.0 M12 0.25 SR M8X10 DIN1835-B HW 4.0 C3 EM10X50 32 10.00 35.00 50.00 30.0 M12 0.35 SR M10X12 DIN1835-B HW 5.0 C3 EM12X55 32 12.00 42.00 55.00 35.0 M12 0.40 SR M12X16 DIN1835-B HW 6.0 C4 EM06X50 40 6.00 25.00 50.00 30.0 M14 0.35 SR M6X10 DIN1835B HW 3.0 C4 EM08X50 40 8.00 28.00 50.00 30.0 M14 0.37 SR M8X10 DIN1835-B HW 4.0 C4 EM10X50 40 10.00 35.00 50.00 30.0 M14 0.42 SR M10X12 DIN1835-B HW 5.0 C4 EM12X55 40 12.00 42.00 55.00 35.0 M14 0.54 SR M12X16 DIN1835-B HW 6.0 C4 EM14X55 40 14.00 44.00 55.00 35.0 M14 0.57 SR M12X16 DIN1835-B HW 6.0 C4 EM16X60 40 16.00 48.00 60.00 40.0 M14 0.70 SR M14X16 DIN1835-B HW 6.0 C5 EM06X50 50 6.00 25.00 50.00 30.0 M16 0.52 SR M6X10 DIN1835B HW 3.0 C5 EM08X50 50 8.00 28.00 50.00 30.0 M16 0.54 SR M8X10 DIN1835-B HW 4.0 C5 EM10X55 50 10.00 35.00 55.00 35.0 M16 0.69 SR M10X12 DIN1835-B HW 5.0 C5 EM12X60 50 12.00 42.00 60.00 40.0 M16 0.83 SR M12X16 DIN1835-B HW 6.0 C5 EM14X60 50 14.00 44.00 60.00 40.0 M16 0.87 SR M12X16 DIN1835-B HW 6.0 C5 EM16X60 50 16.00 48.00 60.00 40.0 M16 0.85 SR M14X16 DIN1835-B HW 6.0 C5 EM18X60 50 18.00 50.00 60.00 40.0 M16 0.46 SR M14X16 DIN1835-B HW 6.0 C5 EM20X60 50 20.00 52.00 60.00 40.0 M16 0.90 SR M16X16 DIN1835-B HW 8.0 C5 EM25X85 50 25.00 65.00 85.00 65.0 M16 1.66 SR M18X2X20 DIN1835-B HW 10.0 C6 EM 6X55 63 6.00 25.00 55.00 33.0 M20 0.86 SR M6X10 DIN1835B HW 3.0 C6 EM 8X55 63 8.00 28.00 55.00 33.0 M20 0.89 SR M8X10 DIN1835-B HW 4.0 C6 EM10X60 63 10.00 35.00 60.00 38.0 M20 1.00 SR M10X12 DIN1835-B HW 5.0 C6 EM12X60 63 12.00 42.00 60.00 38.0 M20 1.08 SR M12X16 DIN1835-B HW 6.0 C6 EM14X60 63 14.00 44.00 60.00 38.0 M20 1.11 SR M12X16 DIN1835-B HW 6.0 C6 EM16X65 63 16.00 48.00 65.00 43.0 M20 1.25 SR M14X16 DIN1835-B HW 6.0 C6 EM18X65 63 18.00 50.00 65.00 43.0 M20 1.20 SR M14X16 DIN1835-B HW 6.0 C6 EM20X65 63 20.00 52.00 65.00 43.0 M20 1.26 SR M16X16 DIN1835-B HW 8.0 C6 EM25X80 63 25.00 65.00 80.00 58.0 M20 1.83 SR M18X2X20 DIN1835-B HW 10.0 C6 EM32X90 63 32.00 72.00 90.00 68.0 M20 2.28 SR M20X2X20 DIN1835-B HW 10.0 C6 EM40X100 63 40.00 90.00 100.00 78.0 M20 3.43 SR M20X2X20 DIN1835-B HW 10.0 C8 EM06X70 80 6.00 25.00 70.00 40.0 M20 1.86 SR M6X10 DIN1835B HW 3.0 C8 EM08X70 80 8.00 28.00 70.00 40.0 M20 1.90 SR M8X10 DIN1835-B HW 4.0 C8 EM10X70 80 10.00 35.00 70.00 40.0 M20 2.00 SR M10X12 DIN1835-B HW 5.0 C8 EM12X70 80 12.00 42.00 70.00 40.0 M20 2.20 SR M12X16 DIN1835-B HW 6.0 C8 EM14X70 80 14.00 44.00 70.00 40.0 M20 2.10 SR M12X16 DIN1835-B HW 6.0 C8 EM16X70 80 16.00 48.00 70.00 40.0 M20 2.16 SR M14X16 DIN1835-B HW 6.0 C8 EM18X70 80 18.00 50.00 70.00 40.0 M20 2.16 SR M14X16 DIN1835-B HW 6.0 C8 EM20X70 80 20.00 52.00 70.00 40.0 M20 2.18 SR M16X16 DIN1835-B HW 8.0 C8 EM25X90 80 25.00 65.00 90.00 60.0 M20 2.89 SR M18X2X20 DIN1835-B HW 10.0 C8 EM32X95 80 32.00 72.00 95.00 65.0 M20 3.20 SR M20X2X20 DIN1835-B HW 10.0 C8 EM40X110 80 40.00 90.00 110.00 80.0 M20 4.73 SR M20X2X20 DIN1835-B HW 10.0 C8 EM50X120 80 50.00 98.00 120.00 90.0 M20 5.30 SR M24X2X25 DIN1835-B HW 12.0 Optional, should be ordered separately For tools, see pages: BLPK (232) DFN A-1.5D-IQ (505) DFN A-8D-IQ (506) DR-CA (526) MTE D (359) MTE D(Double Insert) (359) 886 ISCAR
