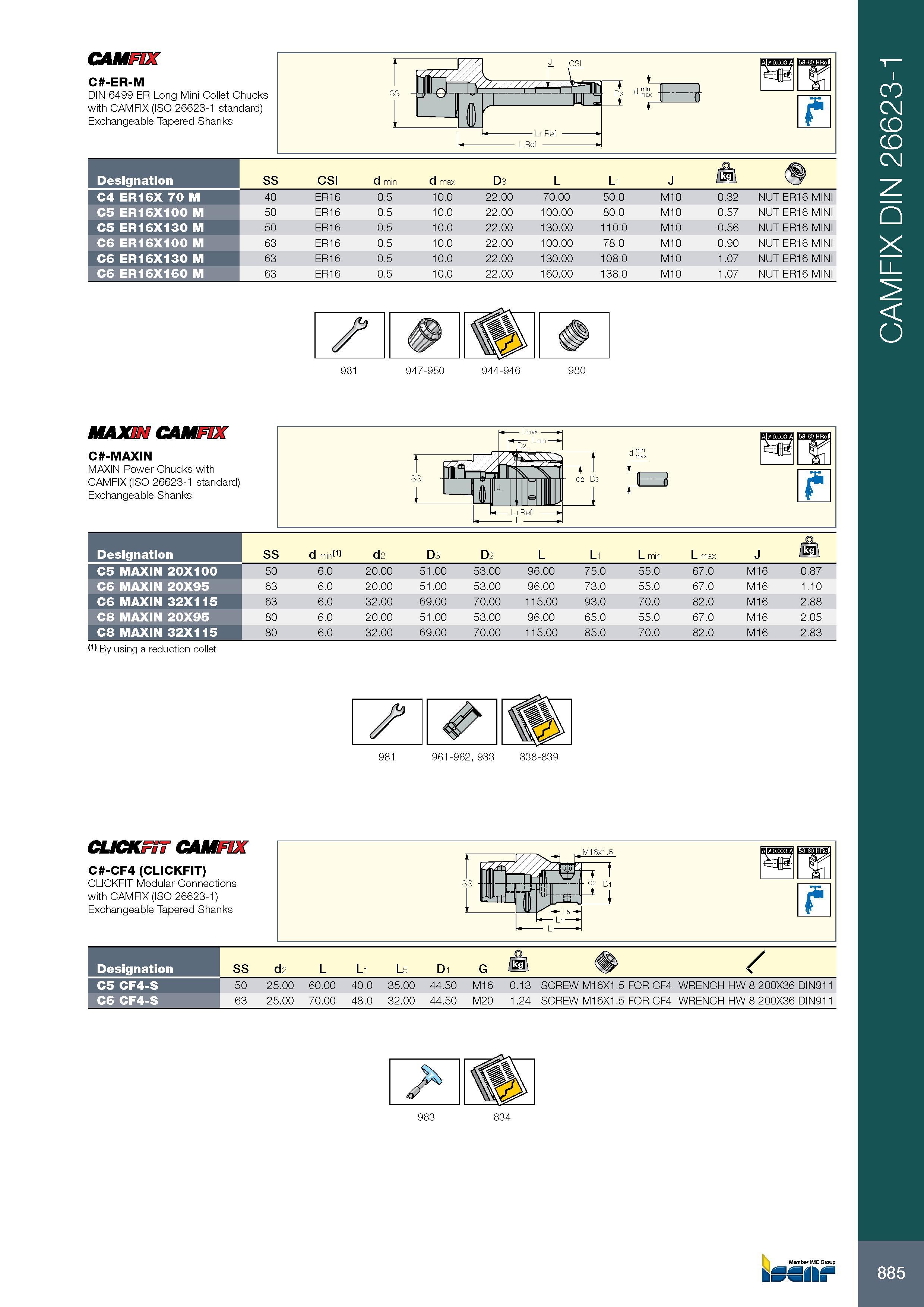

CAMFIX C -ER-M DIN 6499 ER Long Mini Collet Chucks with CAMFIX (ISO 26623-1 standard) Exchangeable Tapered Shanks D3 dm i Обозначение Designation SS CSI d min d max D3 L L1 J <8 C4 ER16X 70 M 40 ER16 0.5 10.0 22.00 70.00 50.0 M10 0.32 NUT ER16 MINI C5 ER16X100 M 50 ER16 0.5 10.0 22.00 100.00 80.0 M10 0.57 NUT ER16 MINI C5 ER16X130 M 50 ER16 0.5 10.0 22.00 130.00 110.0 M10 0.56 NUT ER16 MINI C6 ER16X100 M 63 ER16 0.5 10.0 22.00 100.00 78.0 M10 0.90 NUT ER16 MINI C6 ER16X130 M 63 ER16 0.5 10.0 22.00 130.00 108.0 M10 1.07 NUT ER16 MINI C6 ER16X160 M 63 ER16 0.5 10.0 22.00 160.00 138.0 M10 1.07 NUT ER16 MINI 981 947-950 944-946 980 MAXIN CAMFIX C -MAXIN MAXIN Power Chucks with CAMFIX (ISO 26623-1 standard) Exchangeable Shanks \ D Lmax 2 Lmin ml r //k\ -i 1 r= iin-tr L-U jj Vi VI d2 D3 1 d 1 L L Li Ref L Обозначение Designation SS d min(1) d2 D3 D2 L L1 L min L max J /kal C5 MAXIN 20X100 50 6.0 20.00 51.00 53.00 96.00 75.0 55.0 67.0 M16 0.87 C6 MAXIN 20X95 63 6.0 20.00 51.00 53.00 96.00 73.0 55.0 67.0 M16 1.10 C6 MAXIN 32X115 63 6.0 32.00 69.00 70.00 115.00 93.0 70.0 82.0 M16 2.88 C8 MAXIN 20X95 80 6.0 20.00 51.00 53.00 96.00 65.0 55.0 67.0 M16 2.05 C8 MAXIN 32X115 80 6.0 32.00 69.00 70.00 115.00 85.0 70.0 82.0 M16 2.83 (1) By using a reduction collet Z’ 981 961-962, 983 838-839 CUCKfuu cam C -CF4 (CLICKFIT) CLICKFIT Modular Connections with CAMFIX (ISO 26623-1) Exchangeable Tapered Shanks Обозначение Designation C5 CF4-S C6 CF4-S SS d2 L L1 L5 D1 G /M / 50 25.00 60.00 40.0 35.00 44.50 M16 0.13 SCREW M16X1.5 FOR CF4 WRENCH HW 8 200X36 DIN911 63 25.00 70.00 48.0 32.00 44.50 M20 1.24 SCREW M16X1.5 FOR CF4 WRENCH HW 8 200X36 DIN911 885 CAMFIX DIN 26623-1
