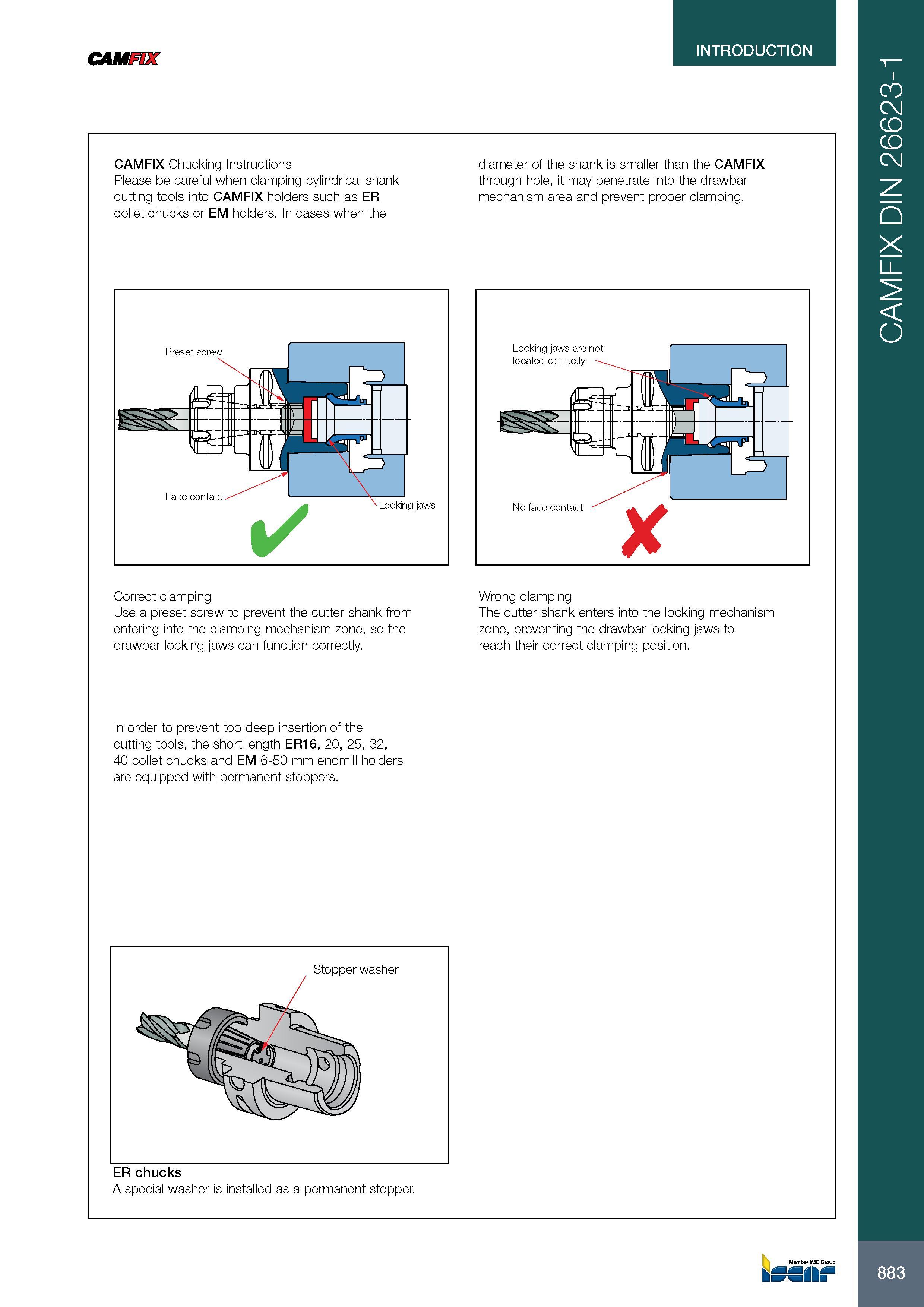

CAMFIX INTRODUCTION CAMFIX Chucking Instructions Please be careful when clamping cylindrical shank cutting tools into CAMFIX holders such as ER collet chucks or EM holders. In cases when the diameter of the shank is smaller than the CAMFIX through hole, it may penetrate into the drawbar mechanism area and prevent proper clamping. ilia i IIP" - w 1 J Locking jaws Correct clamping Use a preset screw to prevent the cutter shank from entering into the clamping mechanism zone, so the drawbar locking jaws can function correctly. Wrong clamping The cutter shank enters into the locking mechanism zone, preventing the drawbar locking jaws to reach their correct clamping position. In order to prevent too deep insertion of the cutting tools, the short length ER16, 20, 25, 32, 40 collet chucks and EM 6-50 mm endmill holders are equipped with permanent stoppers. A special washer is installed as a permanent stopper. Member IMC Group 883 CAMFIX DIN 26623-1
