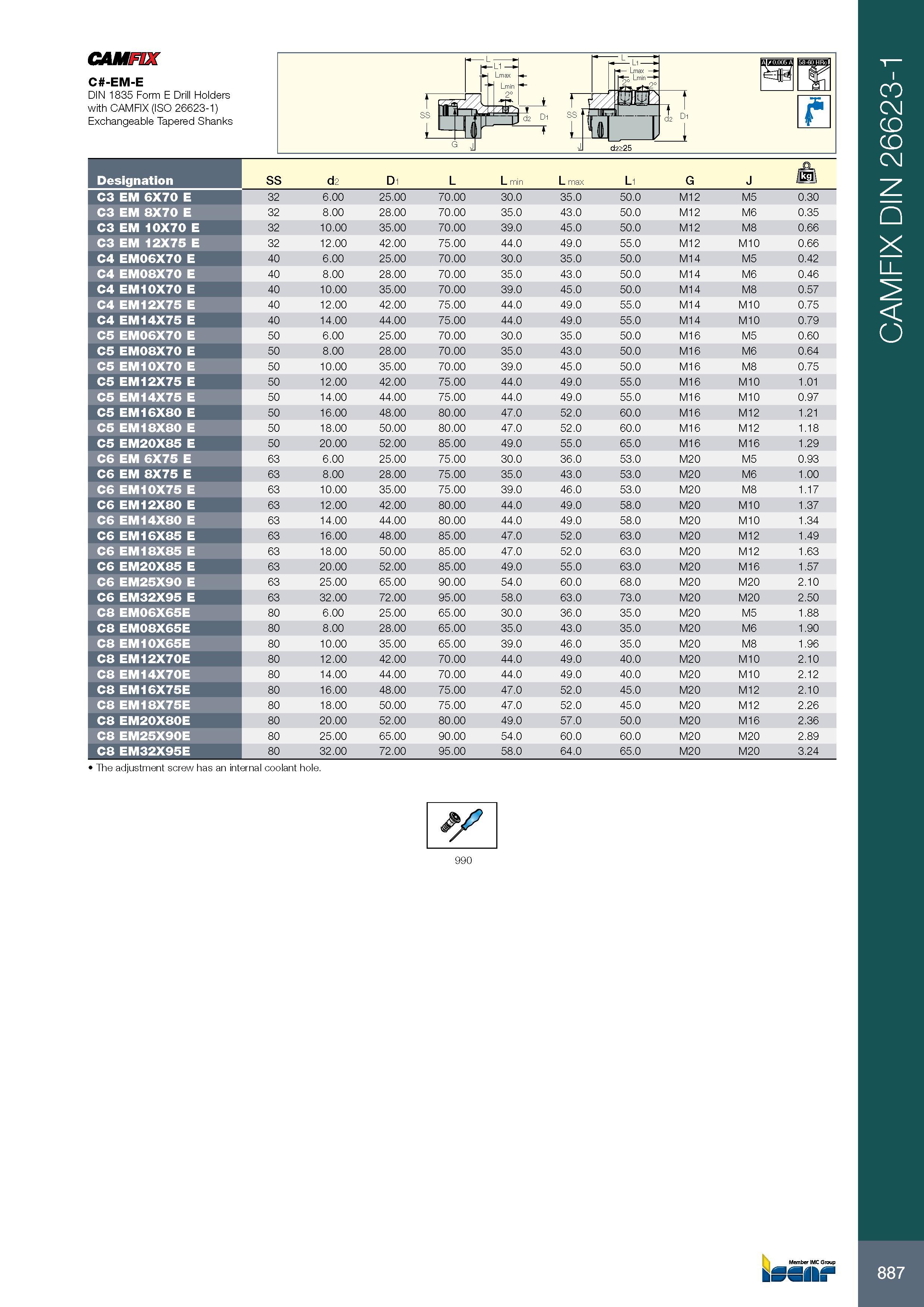

887 CAMFIX C -EM-E DIN 1835 Form E Drill Holders with CAMFIX (ISO 26623-1) Exchangeable Tapered Shanks Обозначение Designation SS d2 D1 L L min L max L1 G J O C3 EM 6X70 E 32 6.00 25.00 70.00 30.0 35.0 50.0 M12 M5 0.30 C3 EM 8X70 E 32 8.00 28.00 70.00 35.0 43.0 50.0 M12 M6 0.35 C3 EM 10X70 E 32 10.00 35.00 70.00 39.0 45.0 50.0 M12 M8 0.66 C3 EM 12X75 E 32 12.00 42.00 75.00 44.0 49.0 55.0 M12 M10 0.66 C4 EM06X70 E 40 6.00 25.00 70.00 30.0 35.0 50.0 M14 M5 0.42 C4 EM08X70 E 40 8.00 28.00 70.00 35.0 43.0 50.0 M14 M6 0.46 C4 EM10X70 E 40 10.00 35.00 70.00 39.0 45.0 50.0 M14 M8 0.57 C4 EM12X75 E 40 12.00 42.00 75.00 44.0 49.0 55.0 M14 M10 0.75 C4 EM14X75 E 40 14.00 44.00 75.00 44.0 49.0 55.0 M14 M10 0.79 C5 EM06X70 E 50 6.00 25.00 70.00 30.0 35.0 50.0 M16 M5 0.60 C5 EM08X70 E 50 8.00 28.00 70.00 35.0 43.0 50.0 M16 M6 0.64 C5 EM10X70 E 50 10.00 35.00 70.00 39.0 45.0 50.0 M16 M8 0.75 C5 EM12X75 E 50 12.00 42.00 75.00 44.0 49.0 55.0 M16 M10 1.01 C5 EM14X75 E 50 14.00 44.00 75.00 44.0 49.0 55.0 M16 M10 0.97 C5 EM16X80 E 50 16.00 48.00 80.00 47.0 52.0 60.0 M16 M12 1.21 C5 EM18X80 E 50 18.00 50.00 80.00 47.0 52.0 60.0 M16 M12 1.18 C5 EM20X85 E 50 20.00 52.00 85.00 49.0 55.0 65.0 M16 M16 1.29 C6 EM 6X75 E 63 6.00 25.00 75.00 30.0 36.0 53.0 M20 M5 0.93 C6 EM 8X75 E 63 8.00 28.00 75.00 35.0 43.0 53.0 M20 M6 1.00 C6 EM10X75 E 63 10.00 35.00 75.00 39.0 46.0 53.0 M20 M8 1.17 C6 EM12X80 E 63 12.00 42.00 80.00 44.0 49.0 58.0 M20 M10 1.37 C6 EM14X80 E 63 14.00 44.00 80.00 44.0 49.0 58.0 M20 M10 1.34 C6 EM16X85 E 63 16.00 48.00 85.00 47.0 52.0 63.0 M20 M12 1.49 C6 EM18X85 E 63 18.00 50.00 85.00 47.0 52.0 63.0 M20 M12 1.63 C6 EM20X85 E 63 20.00 52.00 85.00 49.0 55.0 63.0 M20 M16 1.57 C6 EM25X90 E 63 25.00 65.00 90.00 54.0 60.0 68.0 M20 M20 2.10 C6 EM32X95 E 63 32.00 72.00 95.00 58.0 63.0 73.0 M20 M20 2.50 C8 EM06X65E 80 6.00 25.00 65.00 30.0 36.0 35.0 M20 M5 1.88 C8 EM08X65E 80 8.00 28.00 65.00 35.0 43.0 35.0 M20 M6 1.90 C8 EM10X65E 80 10.00 35.00 65.00 39.0 46.0 35.0 M20 M8 1.96 C8 EM12X70E 80 12.00 42.00 70.00 44.0 49.0 40.0 M20 M10 2.10 C8 EM14X70E 80 14.00 44.00 70.00 44.0 49.0 40.0 M20 M10 2.12 C8 EM16X75E 80 16.00 48.00 75.00 47.0 52.0 45.0 M20 M12 2.10 C8 EM18X75E 80 18.00 50.00 75.00 47.0 52.0 45.0 M20 M12 2.26 C8 EM20X80E 80 20.00 52.00 80.00 49.0 57.0 50.0 M20 M16 2.36 C8 EM25X90E 80 25.00 65.00 90.00 54.0 60.0 60.0 M20 M20 2.89 C8 EM32X95E 80 32.00 72.00 95.00 58.0 64.0 65.0 M20 M20 3.24 The adjustment screw has an internal coolant hole. 990 CAMFIX DIN 26623-1
