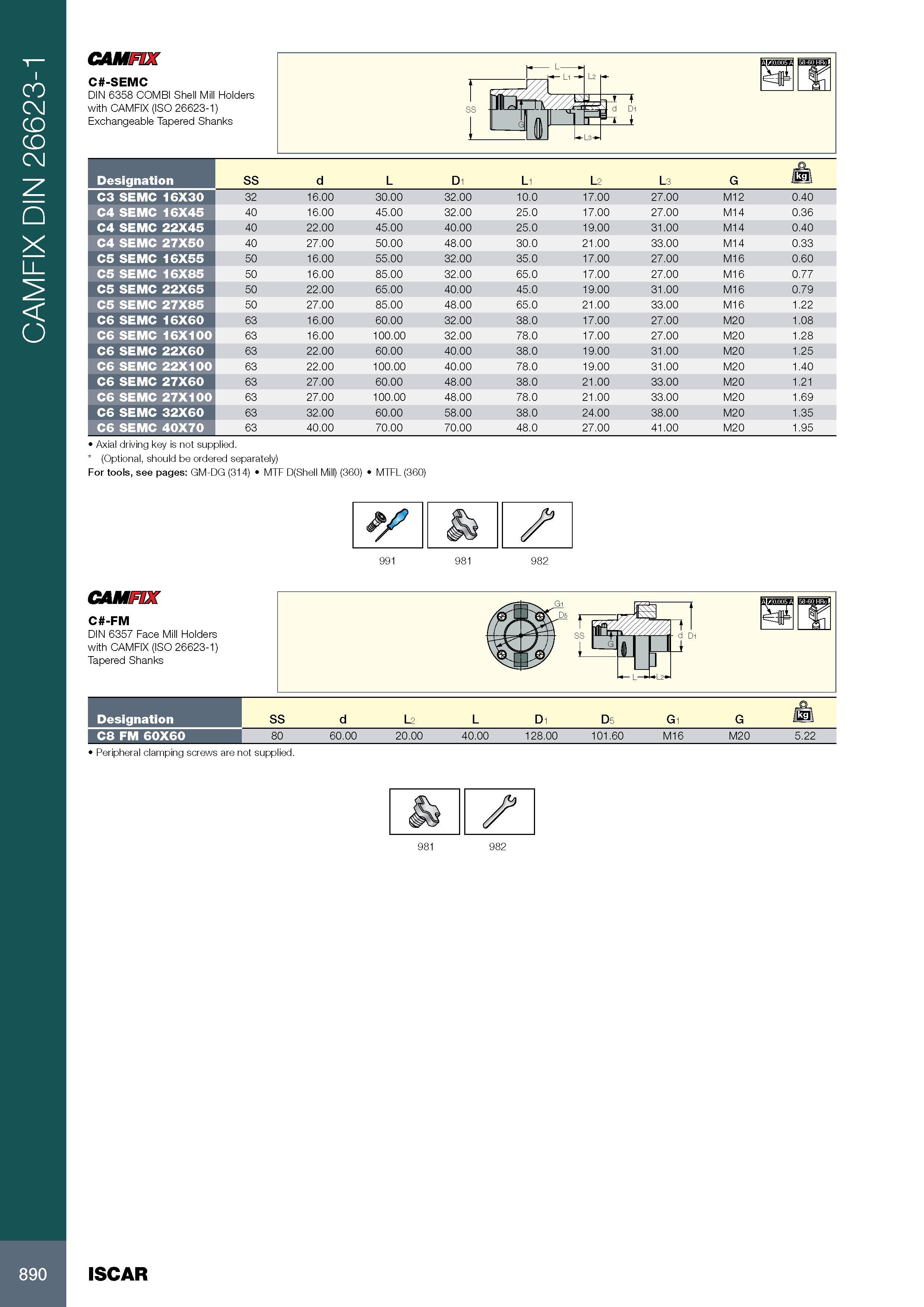

CAMFIX DIN 26623-1 CAMFIX C -SEMC D IN 6358 COMBI Shell Mill Holders with CAMFIX (ISO 26623-1) Exchangeable Tapered Shanks Обозначение Designation SS d L D1 L1 L2 L3 G o C3 SEMC 16X30 32 16.00 30.00 32.00 10.0 17.00 27.00 M12 0.40 C4 SEMC 16X45 40 16.00 45.00 32.00 25.0 17.00 27.00 M14 0.36 C4 SEMC 22X45 40 22.00 45.00 40.00 25.0 19.00 31.00 M14 0.40 C4 SEMC 27X50 40 27.00 50.00 48.00 30.0 21.00 33.00 M14 0.33 C5 SEMC 16X55 50 16.00 55.00 32.00 35.0 17.00 27.00 M16 0.60 C5 SEMC 16X85 50 16.00 85.00 32.00 65.0 17.00 27.00 M16 0.77 C5 SEMC 22X65 50 22.00 65.00 40.00 45.0 19.00 31.00 M16 0.79 C5 SEMC 27X85 50 27.00 85.00 48.00 65.0 21.00 33.00 M16 1.22 C6 SEMC 16X60 63 16.00 60.00 32.00 38.0 17.00 27.00 M20 1.08 C6 SEMC 16X100 63 16.00 100.00 32.00 78.0 17.00 27.00 M20 1.28 C6 SEMC 22X60 63 22.00 60.00 40.00 38.0 19.00 31.00 M20 1.25 C6 SEMC 22X100 63 22.00 100.00 40.00 78.0 19.00 31.00 M20 1.40 C6 SEMC 27X60 63 27.00 60.00 48.00 38.0 21.00 33.00 M20 1.21 C6 SEMC 27X100 63 27.00 100.00 48.00 78.0 21.00 33.00 M20 1.69 C6 SEMC 32X60 63 32.00 60.00 58.00 38.0 24.00 38.00 M20 1.35 C6 SEMC 40X70 63 40.00 70.00 70.00 48.0 27.00 41.00 M20 1.95 Axial driving key is not supplied. (Optional, should be ordered separately) For tools, see pages: GM-DG (314) MTF D(Shell Mill) (360) MTFL (360) / 991 981 982 CAMFIX C -FM DIN 6357 Face Mill Holders with CAMFIX (ISO 26623-1) Tapered Shanks Обозначение Designation SS d L2 L D1 D5 G1 G (3) M C8 FM 60X60 80 60.00 20.00 40.00 128.00 101.60 M16 M20 5.22 Peripheral clamping screws are not supplied. s 981 982 890 ISCAR
