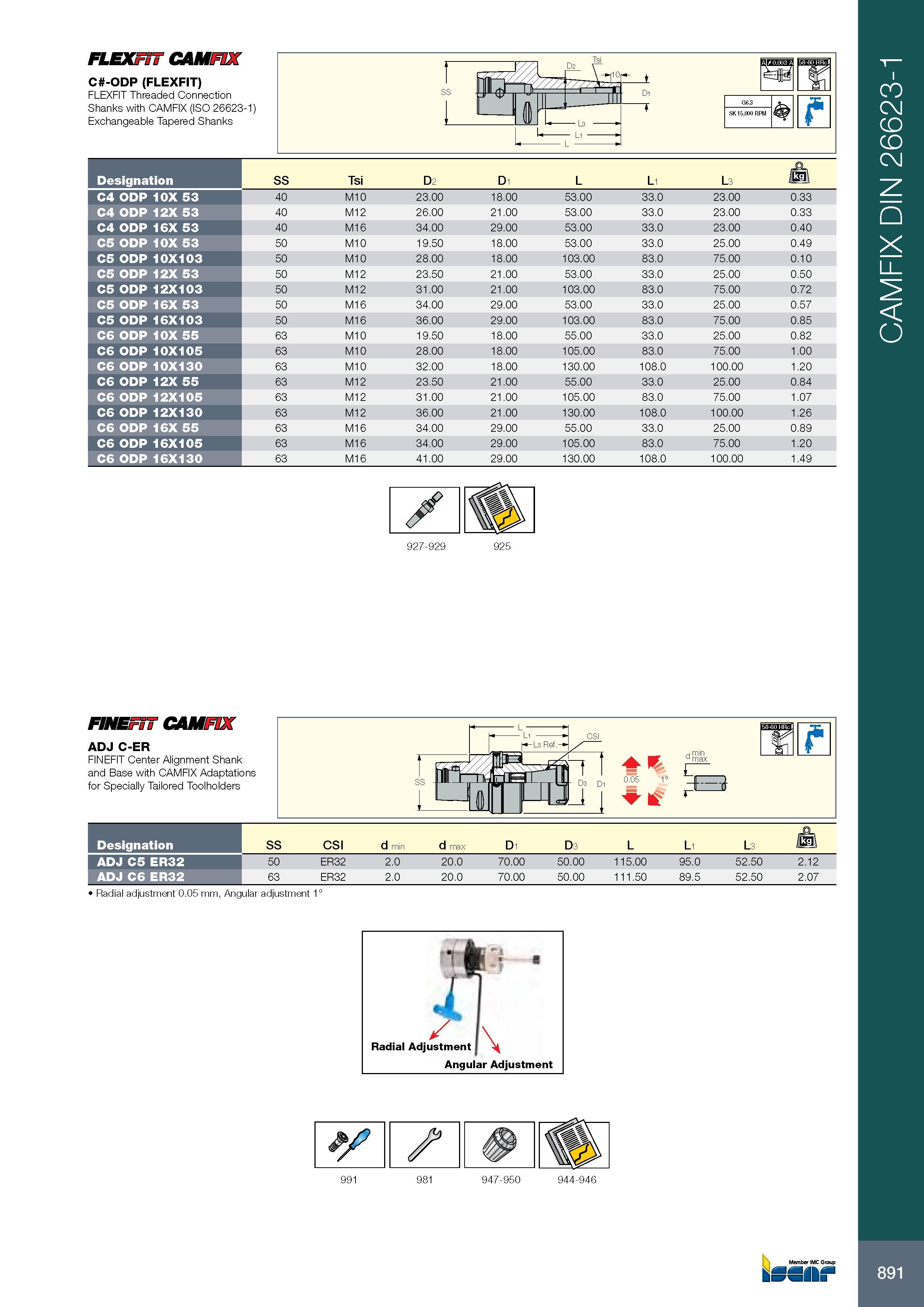

895 Каталог ISCAR 2017 Вращающийся режущий инструмент и инструментальная оснастка Стр.891

Каталог ISCAR 2017 Ротационный инструмент Стр. 891 0895 ENG Lab2u

FLEXFIT CAMFIX C -ODP (FLEXFIT) FLEXFIT Threaded Connection Shanks with CAMFIX (ISO 26623-1) Exchangeable Tapered Shanks SK 15,000 RPM Обозначение Designation SS Tsi D2 D1 L L1 L3 o C4 ODP 10X 53 40 M10 23.00 18.00 53.00 33.0 23.00 0.33 C4 ODP 12X 53 40 M12 26.00 21.00 53.00 33.0 23.00 0.33 C4 ODP 16X 53 40 M16 34.00 29.00 53.00 33.0 23.00 0.40 C5 ODP 10X 53 50 M10 19.50 18.00 53.00 33.0 25.00 0.49 C5 ODP 10X103 50 M10 28.00 18.00 103.00 83.0 75.00 0.10 C5 ODP 12X 53 50 M12 23.50 21.00 53.00 33.0 25.00 0.50 C5 ODP 12X103 50 M12 31.00 21.00 103.00 83.0 75.00 0.72 C5 ODP 16X 53 50 M16 34.00 29.00 53.00 33.0 25.00 0.57 C5 ODP 16X103 50 M16 36.00 29.00 103.00 83.0 75.00 0.85 C6 ODP 10X 55 63 M10 19.50 18.00 55.00 33.0 25.00 0.82 C6 ODP 10X105 63 M10 28.00 18.00 105.00 83.0 75.00 1.00 C6 ODP 10X130 63 M10 32.00 18.00 130.00 108.0 100.00 1.20 C6 ODP 12X 55 63 M12 23.50 21.00 55.00 33.0 25.00 0.84 C6 ODP 12X105 63 M12 31.00 21.00 105.00 83.0 75.00 1.07 C6 ODP 12X130 63 M12 36.00 21.00 130.00 108.0 100.00 1.26 C6 ODP 16X 55 63 M16 34.00 29.00 55.00 33.0 25.00 0.89 C6 ODP 16X105 63 M16 34.00 29.00 105.00 83.0 75.00 1.20 C6 ODP 16X130 63 M16 41.00 29.00 130.00 108.0 100.00 1.49 927-929 925 FINEriT CAMFIX ADJ C-ER FINEFIT Center Alignment Shank and Base with CAMFIX Adaptations for Specially Tailored Toolholders L - -L3 Ref.- / /// 1 t - D3 D1 1 1 1 in 111 -1 1 -A- 005 10 -EE3 ▼ It r Обозначение Designation SS CSI d min d max D1 D3 L L1 L3 O Ml ADJ C5 ER32 50 ER32 2.0 20.0 70.00 50.00 115.00 95.0 52.50 2.12 ADJ C6 ER32 63 ER32 2.0 20.0 70.00 50.00 111.50 89.5 52.50 2.07 Radial adjustment 0.05 mm, Angular adjustment 1° >/ /> 991 981 947-950 944-946 Member IMC Group kSSII t G6.3 891 CAMFIX DIN 26623-1
