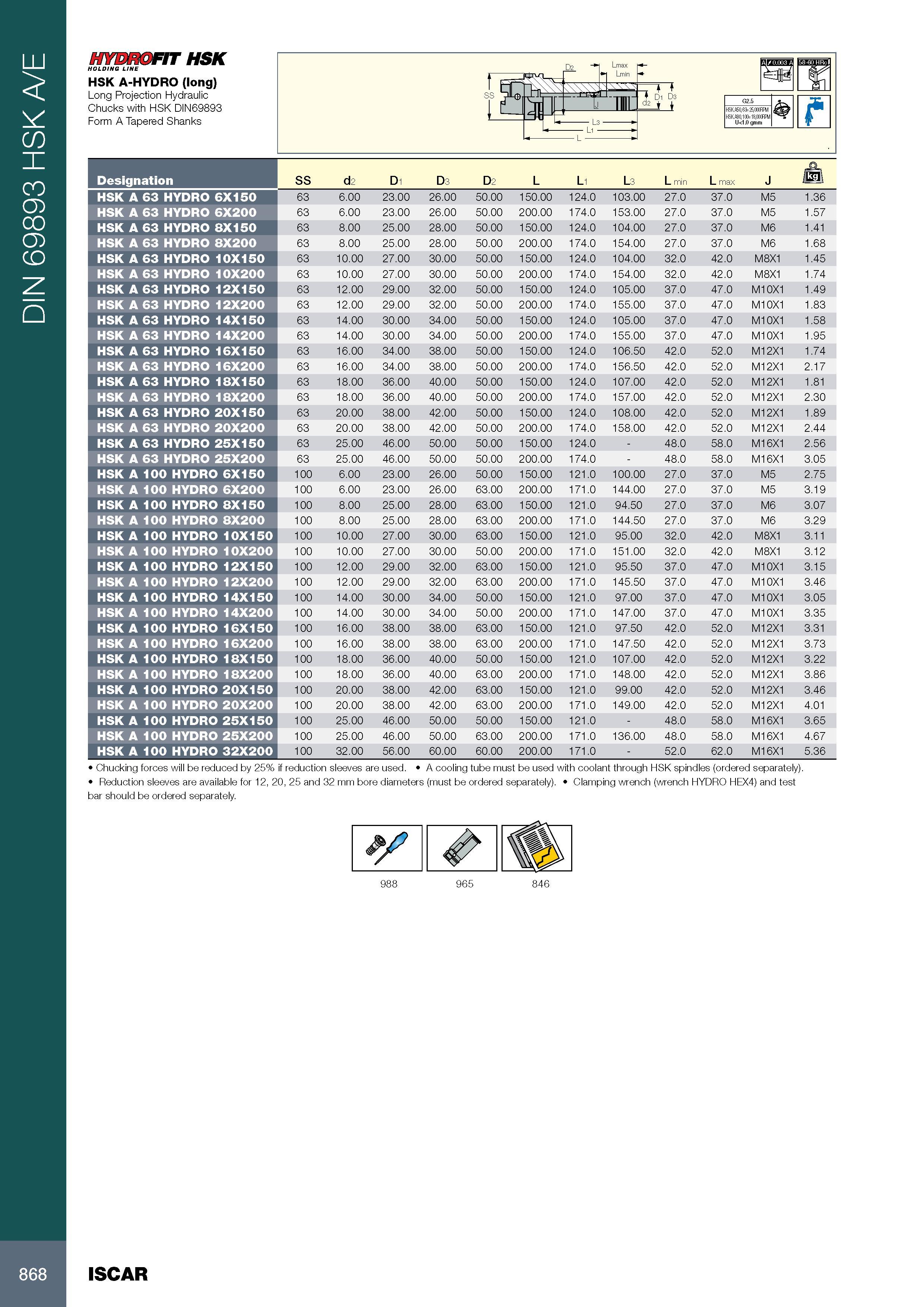

DIN 69893 HSK A/E HYDROFIT HSK HOLDING LINE HSK A-HYDRO (long) Long Projection Hydraulic Chucks with HSK DIN69893 Form A Tapered Shanks HSKA50 63= 25.000RPM HSKA80 100= 18,000RPM U<1.0 gmm Обозначение Designation SS d2 D1 D3 D2 L L1 L3 L min L max J HSK A 63 HYDRO 6X150 63 6.00 23.00 26.00 50.00 150.00 124.0 103.00 27.0 37.0 M5 1.36 HSK A 63 HYDRO 6X200 63 6.00 23.00 26.00 50.00 200.00 174.0 153.00 27.0 37.0 M5 1.57 HSK A 63 HYDRO 8X150 63 8.00 25.00 28.00 50.00 150.00 124.0 104.00 27.0 37.0 M6 1.41 HSK A 63 HYDRO 8X200 63 8.00 25.00 28.00 50.00 200.00 174.0 154.00 27.0 37.0 M6 1.68 HSK A 63 HYDRO 10X150 63 10.00 27.00 30.00 50.00 150.00 124.0 104.00 32.0 42.0 M8X1 1.45 HSK A 63 HYDRO 10X200 63 10.00 27.00 30.00 50.00 200.00 174.0 154.00 32.0 42.0 M8X1 1.74 HSK A 63 HYDRO 12X150 63 12.00 29.00 32.00 50.00 150.00 124.0 105.00 37.0 47.0 M10X1 1.49 HSK A 63 HYDRO 12X200 63 12.00 29.00 32.00 50.00 200.00 174.0 155.00 37.0 47.0 M10X1 1.83 HSK A 63 HYDRO 14X150 63 14.00 30.00 34.00 50.00 150.00 124.0 105.00 37.0 47.0 M10X1 1.58 HSK A 63 HYDRO 14X200 63 14.00 30.00 34.00 50.00 200.00 174.0 155.00 37.0 47.0 M10X1 1.95 HSK A 63 HYDRO 16X150 63 16.00 34.00 38.00 50.00 150.00 124.0 106.50 42.0 52.0 M12X1 1.74 HSK A 63 HYDRO 16X200 63 16.00 34.00 38.00 50.00 200.00 174.0 156.50 42.0 52.0 M12X1 2.17 HSK A 63 HYDRO 18X150 63 18.00 36.00 40.00 50.00 150.00 124.0 107.00 42.0 52.0 M12X1 1.81 HSK A 63 HYDRO 18X200 63 18.00 36.00 40.00 50.00 200.00 174.0 157.00 42.0 52.0 M12X1 2.30 HSK A 63 HYDRO 20X150 63 20.00 38.00 42.00 50.00 150.00 124.0 108.00 42.0 52.0 M12X1 1.89 HSK A 63 HYDRO 20X200 63 20.00 38.00 42.00 50.00 200.00 174.0 158.00 42.0 52.0 M12X1 2.44 HSK A 63 HYDRO 25X150 63 25.00 46.00 50.00 50.00 150.00 124.0 - 48.0 58.0 M16X1 2.56 HSK A 63 HYDRO 25X200 63 25.00 46.00 50.00 50.00 200.00 174.0 - 48.0 58.0 M16X1 3.05 HSK A 100 HYDRO 6X150 100 6.00 23.00 26.00 50.00 150.00 121.0 100.00 27.0 37.0 M5 2.75 HSK A 100 HYDRO 6X200 100 6.00 23.00 26.00 63.00 200.00 171.0 144.00 27.0 37.0 M5 3.19 HSK A 100 HYDRO 8X150 100 8.00 25.00 28.00 63.00 150.00 121.0 94.50 27.0 37.0 M6 3.07 HSK A 100 HYDRO 8X200 100 8.00 25.00 28.00 63.00 200.00 171.0 144.50 27.0 37.0 M6 3.29 HSK A 100 HYDRO 10X150 100 10.00 27.00 30.00 63.00 150.00 121.0 95.00 32.0 42.0 M8X1 3.11 HSK A 100 HYDRO 10X200 100 10.00 27.00 30.00 50.00 200.00 171.0 151.00 32.0 42.0 M8X1 3.12 HSK A 100 HYDRO 12X150 100 12.00 29.00 32.00 63.00 150.00 121.0 95.50 37.0 47.0 M10X1 3.15 HSK A 100 HYDRO 12X200 100 12.00 29.00 32.00 63.00 200.00 171.0 145.50 37.0 47.0 M10X1 3.46 HSK A 100 HYDRO 14X150 100 14.00 30.00 34.00 50.00 150.00 121.0 97.00 37.0 47.0 M10X1 3.05 HSK A 100 HYDRO 14X200 100 14.00 30.00 34.00 50.00 200.00 171.0 147.00 37.0 47.0 M10X1 3.35 HSK A 100 HYDRO 16X150 100 16.00 38.00 38.00 63.00 150.00 121.0 97.50 42.0 52.0 M12X1 3.31 HSK A 100 HYDRO 16X200 100 16.00 38.00 38.00 63.00 200.00 171.0 147.50 42.0 52.0 M12X1 3.73 HSK A 100 HYDRO 18X150 100 18.00 36.00 40.00 50.00 150.00 121.0 107.00 42.0 52.0 M12X1 3.22 HSK A 100 HYDRO 18X200 100 18.00 36.00 40.00 63.00 200.00 171.0 148.00 42.0 52.0 M12X1 3.86 HSK A 100 HYDRO 20X150 100 20.00 38.00 42.00 63.00 150.00 121.0 99.00 42.0 52.0 M12X1 3.46 HSK A 100 HYDRO 20X200 100 20.00 38.00 42.00 63.00 200.00 171.0 149.00 42.0 52.0 M12X1 4.01 HSK A 100 HYDRO 25X150 100 25.00 46.00 50.00 50.00 150.00 121.0 - 48.0 58.0 M16X1 3.65 HSK A 100 HYDRO 25X200 100 25.00 46.00 50.00 63.00 200.00 171.0 136.00 48.0 58.0 M16X1 4.67 HSK A 100 HYDRO 32X200 100 32.00 56.00 60.00 60.00 200.00 171.0 - 52.0 62.0 M16X1 5.36 Chucking forces will be reduced by 25% if reduction sleeves are used. A cooling tube must be used Reduction sleeves are available for 12, 20, 25 and 32 mm bore diameters (must be ordered separately). bar should be ordered separately. with coolant through HSK spindles (ordered separately). Clamping wrench (wrench HYDRO HEX4) and test 9f 988 965 846 868 ISCAR
