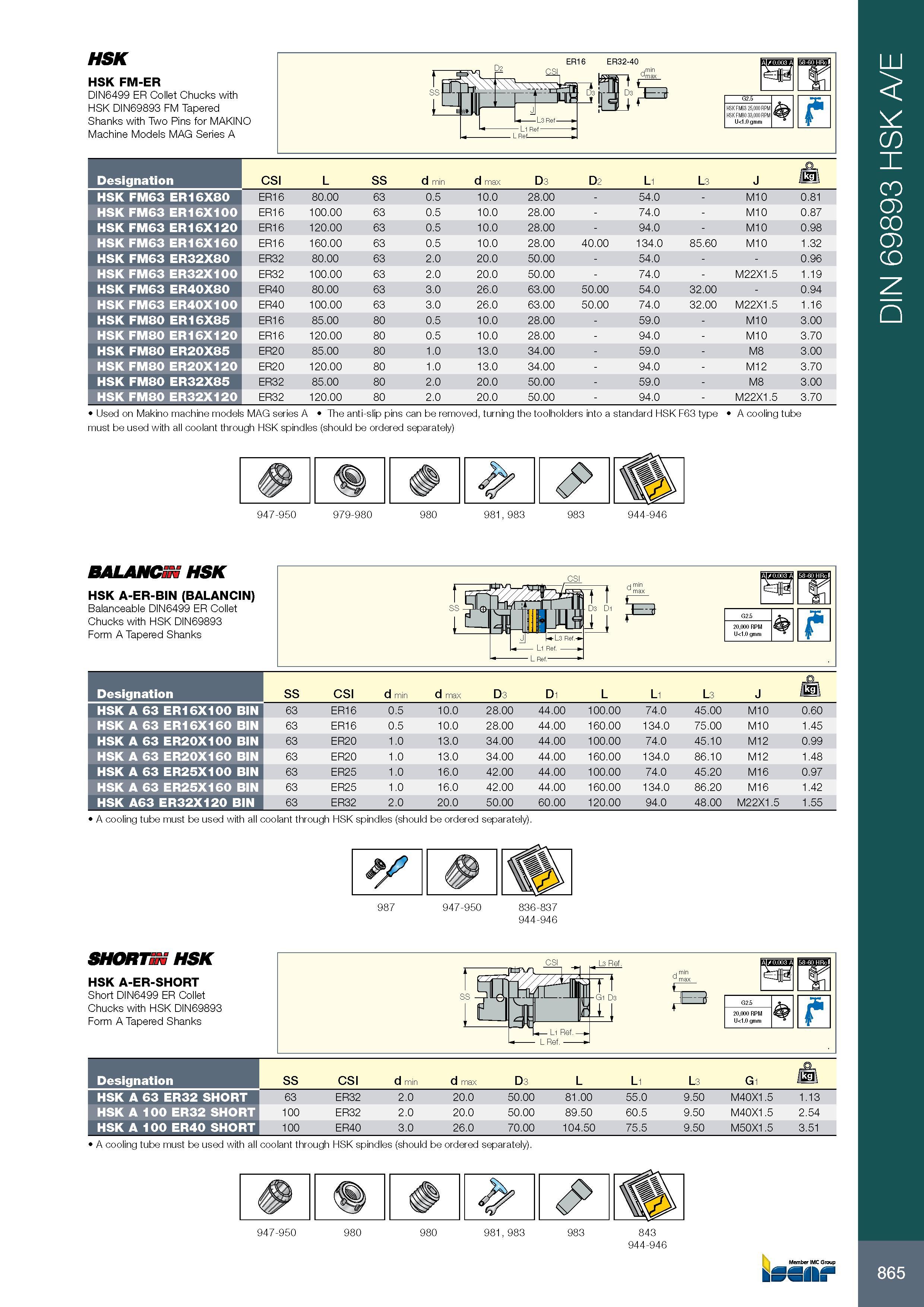

865 HSK HSK FM-ER DIN6499 ER Collet Chucks with HSK DIN69893 FM Tapered Shanks with Two Pins for MAKINO Machine Models MAG Series A Обозначение Designation CSI L SS d min d max D3 D2 L1 L3 J HSK FM63 ER16X80 ER16 80.00 63 0.5 10.0 28.00 - 54.0 - M10 0.81 HSK FM63 ER16X100 ER16 100.00 63 0.5 10.0 28.00 - 74.0 - M10 0.87 HSK FM63 ER16X120 ER16 120.00 63 0.5 10.0 28.00 - 94.0 - M10 0.98 HSK FM63 ER16X160 ER16 160.00 63 0.5 10.0 28.00 40.00 134.0 85.60 M10 1.32 HSK FM63 ER32X80 ER32 80.00 63 2.0 20.0 50.00 - 54.0 0.96 HSK FM63 ER32X100 ER32 100.00 63 2.0 20.0 50.00 - 74.0 - M22X1.5 1.19 HSK FM63 ER40X80 ER40 80.00 63 3.0 26.0 63.00 50.00 54.0 32.00 - 0.94 HSK FM63 ER40X100 ER40 100.00 63 3.0 26.0 63.00 50.00 74.0 32.00 M22X1.5 1.16 HSK FM80 ER16X85 ER16 85.00 80 0.5 10.0 28.00 - 59.0 - M10 3.00 HSK FM80 ER16X120 ER16 120.00 80 0.5 10.0 28.00 - 94.0 - M10 3.70 HSK FM80 ER20X85 ER20 85.00 80 1.0 13.0 34.00 - 59.0 - M8 3.00 HSK FM80 ER20X120 ER20 120.00 80 1.0 13.0 34.00 - 94.0 - M12 3.70 HSK FM80 ER32X85 ER32 85.00 80 2.0 20.0 50.00 - 59.0 - M8 3.00 HSK FM80 ER32X120 ER32 120.00 80 2.0 20.0 50.00 - 94.0 - M22X1.5 3.70 Used on Makino machine models MAG series A The anti-slip pins can be removed, turning the toolholders into a standard HSK F63 type A cooling tube must be used with all coolant through HSK spindles (should be ordered separately) BALAMCSN HSK HSK A-ER-BIN (BALANCIN) Balanceable DIN6499 ER Collet Chucks with HSK DIN69893 Form A Tapered Shanks Обозначение Designation SS CSI d min d max D3 D1 L L1 L3 J /kffi HSK A 63 ER16X100 BIN 63 ER16 0.5 10.0 28.00 44.00 100.00 74.0 45.00 M10 0.60 HSK A 63 ER16X160 BIN 63 ER16 0.5 10.0 28.00 44.00 160.00 134.0 75.00 M10 1.45 HSK A 63 ER20X100 BIN 63 ER20 1.0 13.0 34.00 44.00 100.00 74.0 45.10 M12 0.99 HSK A 63 ER20X160 BIN 63 ER20 1.0 13.0 34.00 44.00 160.00 134.0 86.10 M12 1.48 HSK A 63 ER25X100 BIN 63 ER25 1.0 16.0 42.00 44.00 100.00 74.0 45.20 M16 0.97 HSK A 63 ER25X160 BIN 63 ER25 1.0 16.0 42.00 44.00 160.00 134.0 86.20 M16 1.42 HSK A63 ER32X120 BIN 63 ER32 2.0 20.0 50.00 60.00 120.00 94.0 48.00 M22X1.5 1.55 A cooling tube must be used with all coolant through HSK spindles (should be ordered separately). 987 947-950 836-837 944-946 SHORTSN HSK HSK A-ER-SHORT Short DIN6499 ER Collet Chucks with HSK DIN69893 Form A Tapered Shanks Обозначение Designation HSK A 63 ER32 SHORT HSK A 100 ER32 SHORT HSK A 100 ER40 SHORT SS CSI d min d max D3 L L1 L3 G1 /kg\ 63 ER32 2.0 20.0 50.00 81.00 55.0 9.50 M40X1.5 1.13 100 ER32 2.0 20.0 50.00 89.50 60.5 9.50 M40X1.5 2.54 100 ER40 3.0 26.0 70.00 104.50 75.5 9.50 M50X1.5 3.51 A cooling tube must be used with all coolant through HSK spindles (should be ordered separately). DIN 69893 HSK A/E
