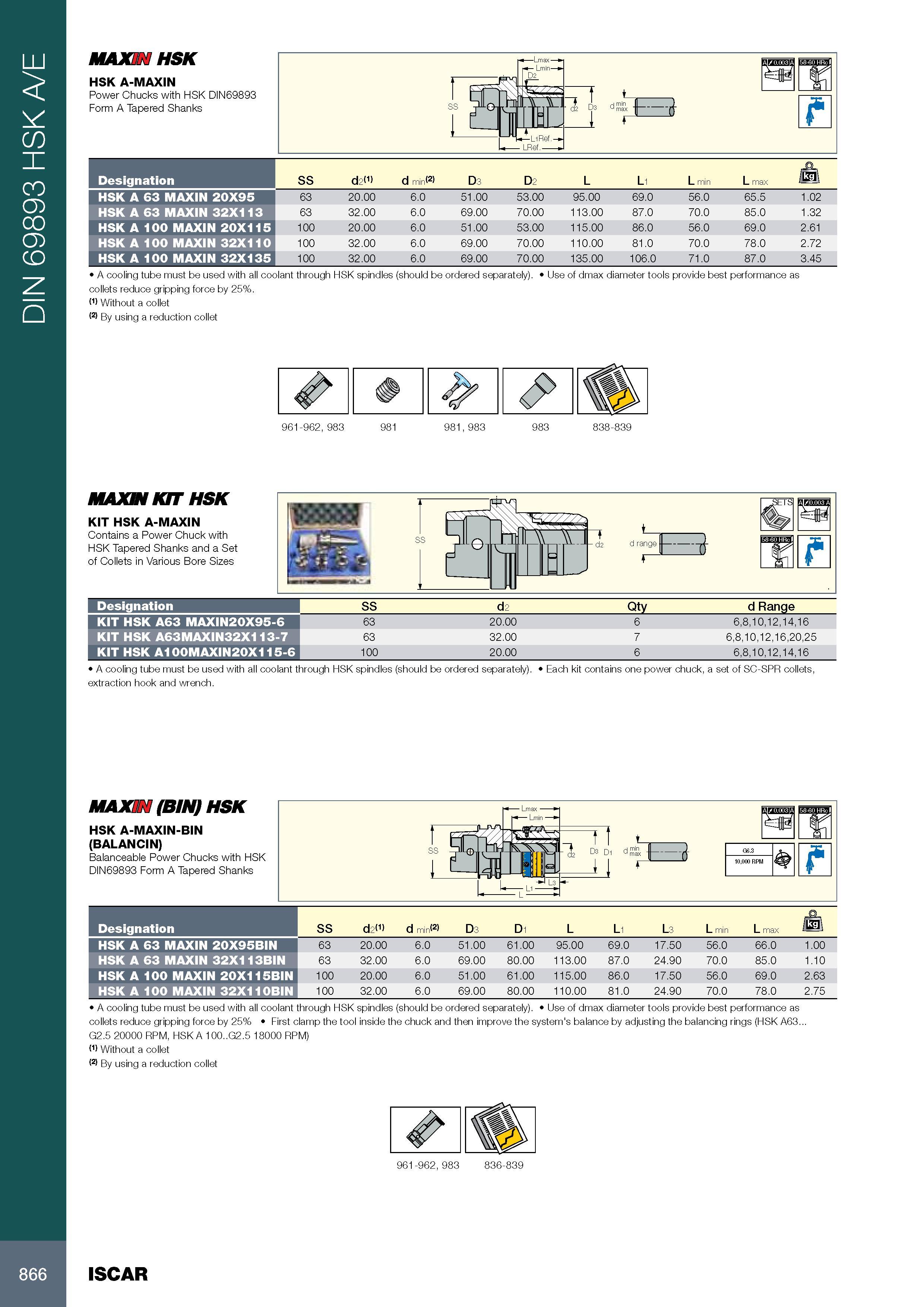

DIN 69893 HSK A/E MAXIN HSK HSK A-MAXIN Power Chucks with HSK DIN69893 Form A Tapered Shanks Обозначение Designation SS d2<’) d min(2) D3 D2 L L1 L min L max O /kgi\ HSK A 63 MAXIN 20X95 63 20.00 6.0 51.00 53.00 95.00 69.0 56.0 65.5 1.02 HSK A 63 MAXIN 32X113 63 32.00 6.0 69.00 70.00 113.00 87.0 70.0 85.0 1.32 HSK A 100 MAXIN 20X115 100 20.00 6.0 51.00 53.00 115.00 86.0 56.0 69.0 2.61 HSK A 100 MAXIN 32X110 100 32.00 6.0 69.00 70.00 110.00 81.0 70.0 78.0 2.72 HSK A 100 MAXIN 32X135 100 32.00 6.0 69.00 70.00 135.00 106.0 71.0 87.0 3.45 A cooling tube must be used with all coolant through HSK spindles (should be ordered separately). Use of dmax diameter tools provide best performance a collets reduce gripping force by 25%. (1) Without a collet (2) By using a reduction collet 961-962, 983 981 981, 983 983 838-839 MAXBHOT HSK KIT HSK A-MAXIN Contains a Power Chuck with HSK Tapered Shanks and a Set of Collets in Various Bore Sizes Обозначение Designation SS d2 Qty d Range KIT HSK A63 MAXIN20X95-6 63 20.00 6 6,8,10,12,14,16 KIT HSK A63MAXIN32X113-7 63 32.00 7 6,8,10,12,16,20,25 KIT HSK A100MAXIN20X115-6 100 20.00 6 6,8,10,12,14,16 A cooling tube must be used with all coolant through HSK spindles (should be ordered separately). Each kit contains one power chuck, a set of SC-SPR collets, extraction hook and wrench. MAXIN (BIN) HSK HSK A-MAXIN-BIN (BALANCIN) Balanceable Power Chucks with HSK DIN69893 Form A Tapered Shanks Обозначение Designation SS d2<’) d min(2) D3 D1 L L1 L3 L min L max HSK A 63 MAXIN 20X95BIN 63 20.00 6.0 51.00 61.00 95.00 69.0 17.50 56.0 66.0 1.00 HSK A 63 MAXIN 32X113BIN 63 32.00 6.0 69.00 80.00 113.00 87.0 24.90 70.0 85.0 1.10 HSK A 100 MAXIN 20X115BIN 100 20.00 6.0 51.00 61.00 115.00 86.0 17.50 56.0 69.0 2.63 HSK A 100 MAXIN 32X110BIN 100 32.00 6.0 69.00 80.00 110.00 81.0 24.90 70.0 78.0 2.75 A cooling tube must be used with all coolant through HSK spindles (should be ordered separately). Use of dmax diameter tools provide best performance as collets reduce gripping force by 25% First clamp the tool inside the chuck and then improve the system's balance by adjusting the balancing rings (HSK A63... G2.5 20000 RPM, HSK A 100..G2.5 18000 RPM) (1) Without a collet (2) By using a reduction collet 961-962, 983 836-839 866 ISCAR
