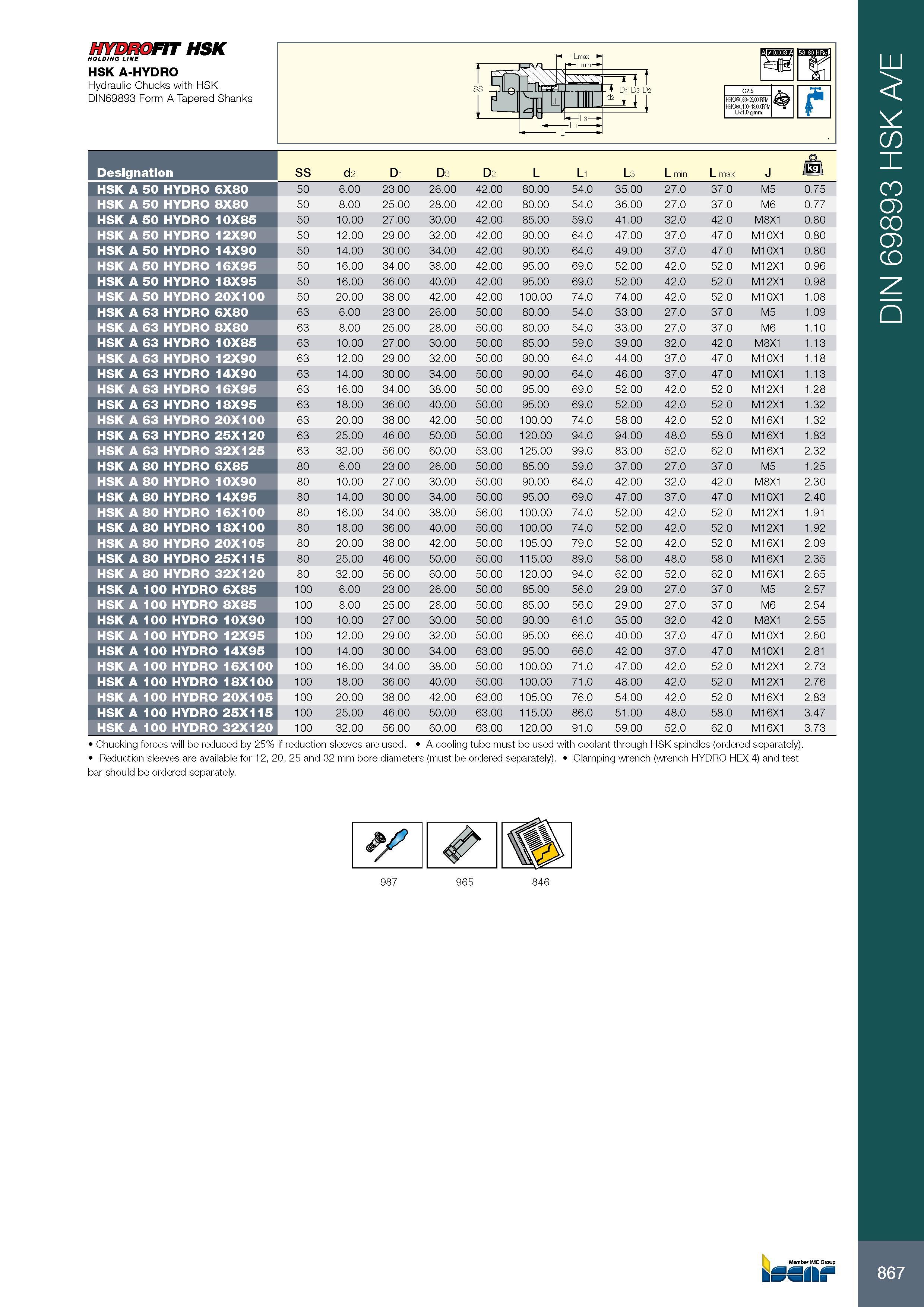

HYDROFIT HSK HOLDING LINE HSK A-HYDRO Hydraulic Chucks with HSK DIN69893 Form A Tapered Shanks HSKA50,63= 25.000RPM HSKA80, 100= 18,000RPM U<1.0 gmm Обозначение Designation SS d2 D1 D3 D2 L L1 L3 L min L max J M HSK A 50 HYDRO 6X80 50 6.00 23.00 26.00 42.00 80.00 54.0 35.00 27.0 37.0 M5 0.75 HSK A 50 HYDRO 8X80 50 8.00 25.00 28.00 42.00 80.00 54.0 36.00 27.0 37.0 M6 0.77 HSK A 50 HYDRO 10X85 50 10.00 27.00 30.00 42.00 85.00 59.0 41.00 32.0 42.0 M8X1 0.80 HSK A 50 HYDRO 12X90 50 12.00 29.00 32.00 42.00 90.00 64.0 47.00 37.0 47.0 M10X1 0.80 HSK A 50 HYDRO 14X90 50 14.00 30.00 34.00 42.00 90.00 64.0 49.00 37.0 47.0 M10X1 0.80 HSK A 50 HYDRO 16X95 50 16.00 34.00 38.00 42.00 95.00 69.0 52.00 42.0 52.0 M12X1 0.96 HSK A 50 HYDRO 18X95 50 16.00 36.00 40.00 42.00 95.00 69.0 52.00 42.0 52.0 M12X1 0.98 HSK A 50 HYDRO 20X100 50 20.00 38.00 42.00 42.00 100.00 74.0 74.00 42.0 52.0 M10X1 1.08 HSK A 63 HYDRO 6X80 63 6.00 23.00 26.00 50.00 80.00 54.0 33.00 27.0 37.0 M5 1.09 HSK A 63 HYDRO 8X80 63 8.00 25.00 28.00 50.00 80.00 54.0 33.00 27.0 37.0 M6 1.10 HSK A 63 HYDRO 10X85 63 10.00 27.00 30.00 50.00 85.00 59.0 39.00 32.0 42.0 M8X1 1.13 HSK A 63 HYDRO 12X90 63 12.00 29.00 32.00 50.00 90.00 64.0 44.00 37.0 47.0 M10X1 1.18 HSK A 63 HYDRO 14X90 63 14.00 30.00 34.00 50.00 90.00 64.0 46.00 37.0 47.0 M10X1 1.13 HSK A 63 HYDRO 16X95 63 16.00 34.00 38.00 50.00 95.00 69.0 52.00 42.0 52.0 M12X1 1.28 HSK A 63 HYDRO 18X95 63 18.00 36.00 40.00 50.00 95.00 69.0 52.00 42.0 52.0 M12X1 1.32 HSK A 63 HYDRO 20X100 63 20.00 38.00 42.00 50.00 100.00 74.0 58.00 42.0 52.0 M16X1 1.32 HSK A 63 HYDRO 25X120 63 25.00 46.00 50.00 50.00 120.00 94.0 94.00 48.0 58.0 M16X1 1.83 HSK A 63 HYDRO 32X125 63 32.00 56.00 60.00 53.00 125.00 99.0 83.00 52.0 62.0 M16X1 2.32 HSK A 80 HYDRO 6X85 80 6.00 23.00 26.00 50.00 85.00 59.0 37.00 27.0 37.0 M5 1.25 HSK A 80 HYDRO 10X90 80 10.00 27.00 30.00 50.00 90.00 64.0 42.00 32.0 42.0 M8X1 2.30 HSK A 80 HYDRO 14X95 80 14.00 30.00 34.00 50.00 95.00 69.0 47.00 37.0 47.0 M10X1 2.40 HSK A 80 HYDRO 16X100 80 16.00 34.00 38.00 56.00 100.00 74.0 52.00 42.0 52.0 M12X1 1.91 HSK A 80 HYDRO 18X100 80 18.00 36.00 40.00 50.00 100.00 74.0 52.00 42.0 52.0 M12X1 1.92 HSK A 80 HYDRO 20X105 80 20.00 38.00 42.00 50.00 105.00 79.0 52.00 42.0 52.0 M16X1 2.09 HSK A 80 HYDRO 25X115 80 25.00 46.00 50.00 50.00 115.00 89.0 58.00 48.0 58.0 M16X1 2.35 HSK A 80 HYDRO 32X120 80 32.00 56.00 60.00 50.00 120.00 94.0 62.00 52.0 62.0 M16X1 2.65 HSK A 100 HYDRO 6X85 100 6.00 23.00 26.00 50.00 85.00 56.0 29.00 27.0 37.0 M5 2.57 HSK A 100 HYDRO 8X85 100 8.00 25.00 28.00 50.00 85.00 56.0 29.00 27.0 37.0 M6 2.54 HSK A 100 HYDRO 10X90 100 10.00 27.00 30.00 50.00 90.00 61.0 35.00 32.0 42.0 M8X1 2.55 HSK A 100 HYDRO 12X95 100 12.00 29.00 32.00 50.00 95.00 66.0 40.00 37.0 47.0 M10X1 2.60 HSK A 100 HYDRO 14X95 100 14.00 30.00 34.00 63.00 95.00 66.0 42.00 37.0 47.0 M10X1 2.81 HSK A 100 HYDRO 16X100 100 16.00 34.00 38.00 50.00 100.00 71.0 47.00 42.0 52.0 M12X1 2.73 HSK A 100 HYDRO 18X100 100 18.00 36.00 40.00 50.00 100.00 71.0 48.00 42.0 52.0 M12X1 2.76 HSK A 100 HYDRO 20X105 100 20.00 38.00 42.00 63.00 105.00 76.0 54.00 42.0 52.0 M16X1 2.83 HSK A 100 HYDRO 25X115 100 25.00 46.00 50.00 63.00 115.00 86.0 51.00 48.0 58.0 M16X1 3.47 HSK A 100 HYDRO 32X120 100 32.00 56.00 60.00 63.00 120.00 91.0 59.00 52.0 62.0 M16X1 3.73 Chucking forces will be reduced by 25% if reduction sleeves are used. A cooling tube must be used Reduction sleeves are available for 12, 20, 25 and 32 mm bore diameters (must be ordered separately). bar should be ordered separately. with coolant through HSK spindles (ordered Clamping wrench (wrench HYDRO HEX separately). 4) and test 987 965 846 Member IMC Group kSSII t 867 DIN 69893 HSK A/E
