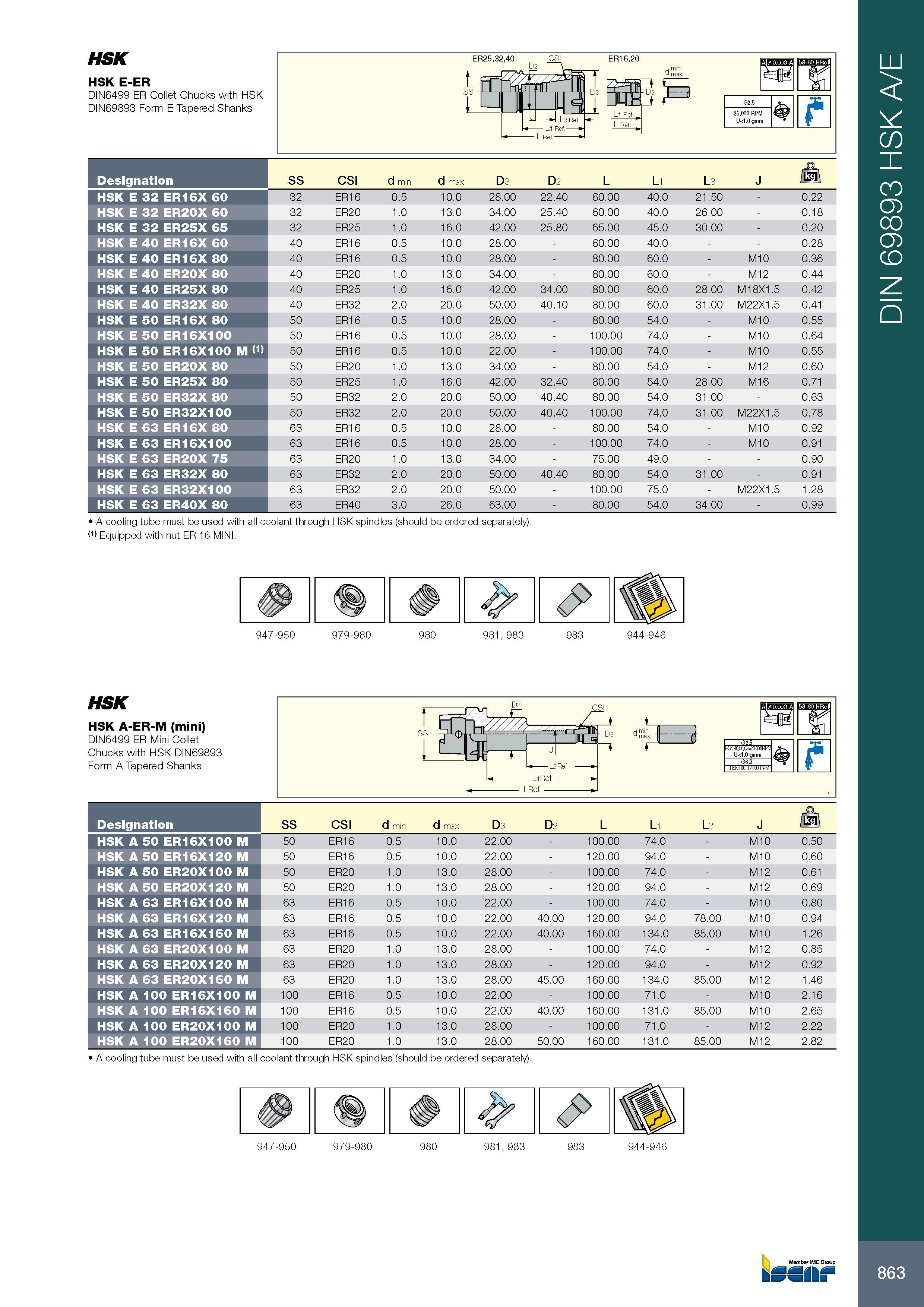

863 HSK HSK E-ER DIN6499 ER Collet Chucks with HSK DIN69893 Form E Tapered Shanks Обозначение Designation SS CSI d min d max D3 D2 L L1 L3 J /kg\ HSK E 32 ER16X 60 32 ER16 0.5 10.0 28.00 22.40 60.00 40.0 21.50 - 0.22 HSK E 32 ER20X 60 32 ER20 1.0 13.0 34.00 25.40 60.00 40.0 26.00 - 0.18 HSK E 32 ER25X 65 32 ER25 1.0 16.0 42.00 25.80 65.00 45.0 30.00 - 0.20 HSK E 40 ER16X 60 40 ER16 0.5 10.0 28.00 - 60.00 40.0 0.28 HSK E 40 ER16X 80 40 ER16 0.5 10.0 28.00 - 80.00 60.0 - M10 0.36 HSK E 40 ER20X 80 40 ER20 1.0 13.0 34.00 - 80.00 60.0 - M12 0.44 HSK E 40 ER25X 80 40 ER25 1.0 16.0 42.00 34.00 80.00 60.0 28.00 M18X1.5 0.42 HSK E 40 ER32X 80 40 ER32 2.0 20.0 50.00 40.10 80.00 60.0 31.00 M22X1.5 0.41 HSK E 50 ER16X 80 50 ER16 0.5 10.0 28.00 - 80.00 54.0 - M10 0.55 HSK E 50 ER16X100 50 ER16 0.5 10.0 28.00 - 100.00 74.0 - M10 0.64 HSK E 50 ER16X100 M (1) 50 ER16 0.5 10.0 22.00 - 100.00 74.0 - M10 0.55 HSK E 50 ER20X 80 50 ER20 1.0 13.0 34.00 - 80.00 54.0 - M12 0.60 HSK E 50 ER25X 80 50 ER25 1.0 16.0 42.00 32.40 80.00 54.0 28.00 M16 0.71 HSK E 50 ER32X 80 50 ER32 2.0 20.0 50.00 40.40 80.00 54.0 31.00 - 0.63 HSK E 50 ER32X100 50 ER32 2.0 20.0 50.00 40.40 100.00 74.0 31.00 M22X1.5 0.78 HSK E 63 ER16X 80 63 ER16 0.5 10.0 28.00 - 80.00 54.0 - M10 0.92 HSK E 63 ER16X100 63 ER16 0.5 10.0 28.00 - 100.00 74.0 - M10 0.91 HSK E 63 ER20X 75 63 ER20 1.0 13.0 34.00 - 75.00 49.0 0.90 HSK E 63 ER32X 80 63 ER32 2.0 20.0 50.00 40.40 80.00 54.0 31.00 - 0.91 HSK E 63 ER32X100 63 ER32 2.0 20.0 50.00 - 100.00 75.0 - M22X1.5 1.28 HSK E 63 ER40X 80 63 ER40 3.0 26.0 63.00 - 80.00 54.0 34.00 - 0.99 A cooling tube must be used with all coolant through HSK spindles (should be ordered separately). (1) Equipped with nut ER 16 MINI. 947-950 979-980 980 981, 983 983 944-946 HSK HSK A-ER-M (mini) DIN6499 ER Mini Collet Chucks with HSK DIN69893 Form A Tapered Shanks j -L3 Ref -LiRef G2.5 HSK 40,bU,63=2u,00uRPM U<1.0 amm G6.3 HSK 100=12,000 RPM Обозначение Designation SS CSI d min d max D3 D2 L L1 L3 J HSK A 50 ER16X100 M 50 ER16 0.5 10.0 22.00 - 100.00 74.0 - M10 0.50 HSK A 50 ER16X120 M 50 ER16 0.5 10.0 22.00 - 120.00 94.0 - M10 0.60 HSK A 50 ER20X100 M 50 ER20 1.0 13.0 28.00 - 100.00 74.0 - M12 0.61 HSK A 50 ER20X120 M 50 ER20 1.0 13.0 28.00 - 120.00 94.0 - M12 0.69 HSK A 63 ER16X100 M 63 ER16 0.5 10.0 22.00 - 100.00 74.0 - M10 0.80 HSK A 63 ER16X120 M 63 ER16 0.5 10.0 22.00 40.00 120.00 94.0 78.00 M10 0.94 HSK A 63 ER16X160 M 63 ER16 0.5 10.0 22.00 40.00 160.00 134.0 85.00 M10 1.26 HSK A 63 ER20X100 M 63 ER20 1.0 13.0 28.00 - 100.00 74.0 - M12 0.85 HSK A 63 ER20X120 M 63 ER20 1.0 13.0 28.00 - 120.00 94.0 - M12 0.92 HSK A 63 ER20X160 M 63 ER20 1.0 13.0 28.00 45.00 160.00 134.0 85.00 M12 1.46 HSK A 100 ER16X100 M 100 ER16 0.5 10.0 22.00 - 100.00 71.0 - M10 2.16 HSK A 100 ER16X160 M 100 ER16 0.5 10.0 22.00 40.00 160.00 131.0 85.00 M10 2.65 HSK A 100 ER20X100 M 100 ER20 1.0 13.0 28.00 - 100.00 71.0 - M12 2.22 HSK A 100 ER20X160 M 100 ER20 1.0 13.0 28.00 50.00 160.00 131.0 85.00 M12 2.82 A cooling tube must be used with all coolant through HSK spindles (should be ordered separately). 947-950 979-980 980 981, 983 983 944-946 Member IMC Group kSSlIf DIN 69893 HSK A/E
