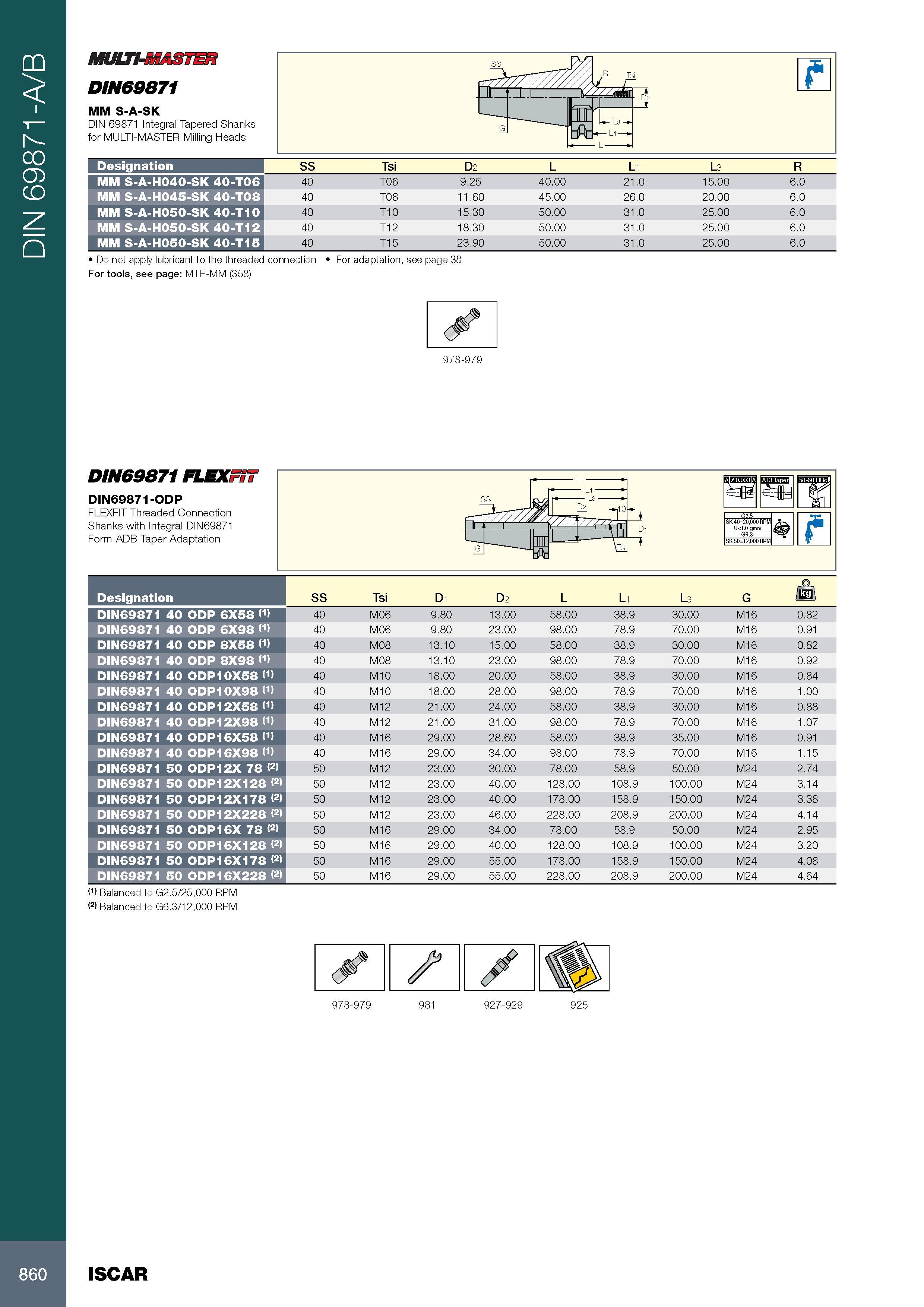

864 Каталог ISCAR 2017 Вращающийся режущий инструмент и инструментальная оснастка Стр.860

Каталог ISCAR 2017 Ротационный инструмент Стр. 860 0864 ENG Lab2u

DIN 69871-A/B MULTI-MASTER DIN69871 MM S-A-SK DIN 69871 Integral Tapered Shanks for MULTI-MASTER Milling Heads Do not apply lubricant to the threaded connection For adaptation, see page 38 For tools, see page: MTE-MM (358) Обозначение Designation SS Tsi D2 L L1 L3 R MM S-A-H040-SK 40-T06 40 T06 9.25 40.00 21.0 15.00 6.0 MM S-A-H045-SK 40-T08 40 T08 11.60 45.00 26.0 20.00 6.0 MM S-A-H050-SK 40-T10 40 T10 15.30 50.00 31.0 25.00 6.0 MM S-A-H050-SK 40-T12 40 T12 18.30 50.00 31.0 25.00 6.0 MM S-A-H050-SK 40-T15 40 T15 23.90 50.00 31.0 25.00 6.0 978-979 DIN69871 FLEX DIN69871-ODP FLEXFIT Threaded Connection Shanks with Integral DIN69871 Form ADB Taper Adaptation SK 50=12,000 RPM SK 40=20,000 RPM U<1.0 gmm Обозначение Designation SS Tsi D1 D2 L L1 L3 G /M DIN69871 40 ODP 6X58 (1) 40 M06 9.80 13.00 58.00 38.9 30.00 M16 0.82 DIN69871 40 ODP 6X98 (1) 40 M06 9.80 23.00 98.00 78.9 70.00 M16 0.91 DIN69871 40 ODP 8X58 (1) 40 M08 13.10 15.00 58.00 38.9 30.00 M16 0.82 DIN69871 40 ODP 8X98 (1) 40 M08 13.10 23.00 98.00 78.9 70.00 M16 0.92 DIN69871 40 ODP10X58 (1) 40 M10 18.00 20.00 58.00 38.9 30.00 M16 0.84 DIN69871 40 ODP10X98 (1) 40 M10 18.00 28.00 98.00 78.9 70.00 M16 1.00 DIN69871 40 ODP12X58 (1) 40 M12 21.00 24.00 58.00 38.9 30.00 M16 0.88 DIN69871 40 ODP12X98 (1) 40 M12 21.00 31.00 98.00 78.9 70.00 M16 1.07 DIN69871 40 ODP16X58 (1) 40 M16 29.00 28.60 58.00 38.9 35.00 M16 0.91 DIN69871 40 ODP16X98 (1) 40 M16 29.00 34.00 98.00 78.9 70.00 M16 1.15 DIN69871 50 ODP12X 78 (2) 50 M12 23.00 30.00 78.00 58.9 50.00 M24 2.74 DIN69871 50 ODP12X128 (2) 50 M12 23.00 40.00 128.00 108.9 100.00 M24 3.14 DIN69871 50 ODP12X178 (2) 50 M12 23.00 40.00 178.00 158.9 150.00 M24 3.38 DIN69871 50 ODP12X228 (2) 50 M12 23.00 46.00 228.00 208.9 200.00 M24 4.14 DIN69871 50 ODP16X 78 (2) 50 M16 29.00 34.00 78.00 58.9 50.00 M24 2.95 DIN69871 50 ODP16X128 (2) 50 M16 29.00 40.00 128.00 108.9 100.00 M24 3.20 DIN69871 50 ODP16X178 (2) 50 M16 29.00 55.00 178.00 158.9 150.00 M24 4.08 DIN69871 50 ODP16X228 (2) 50 M16 29.00 55.00 228.00 208.9 200.00 M24 4.64 (1) Balanced to G2.5/25,000 RPM (2) Balanced to G6.3/12,000 RPM 978-979 981 927-929 925 860 ISCAR
