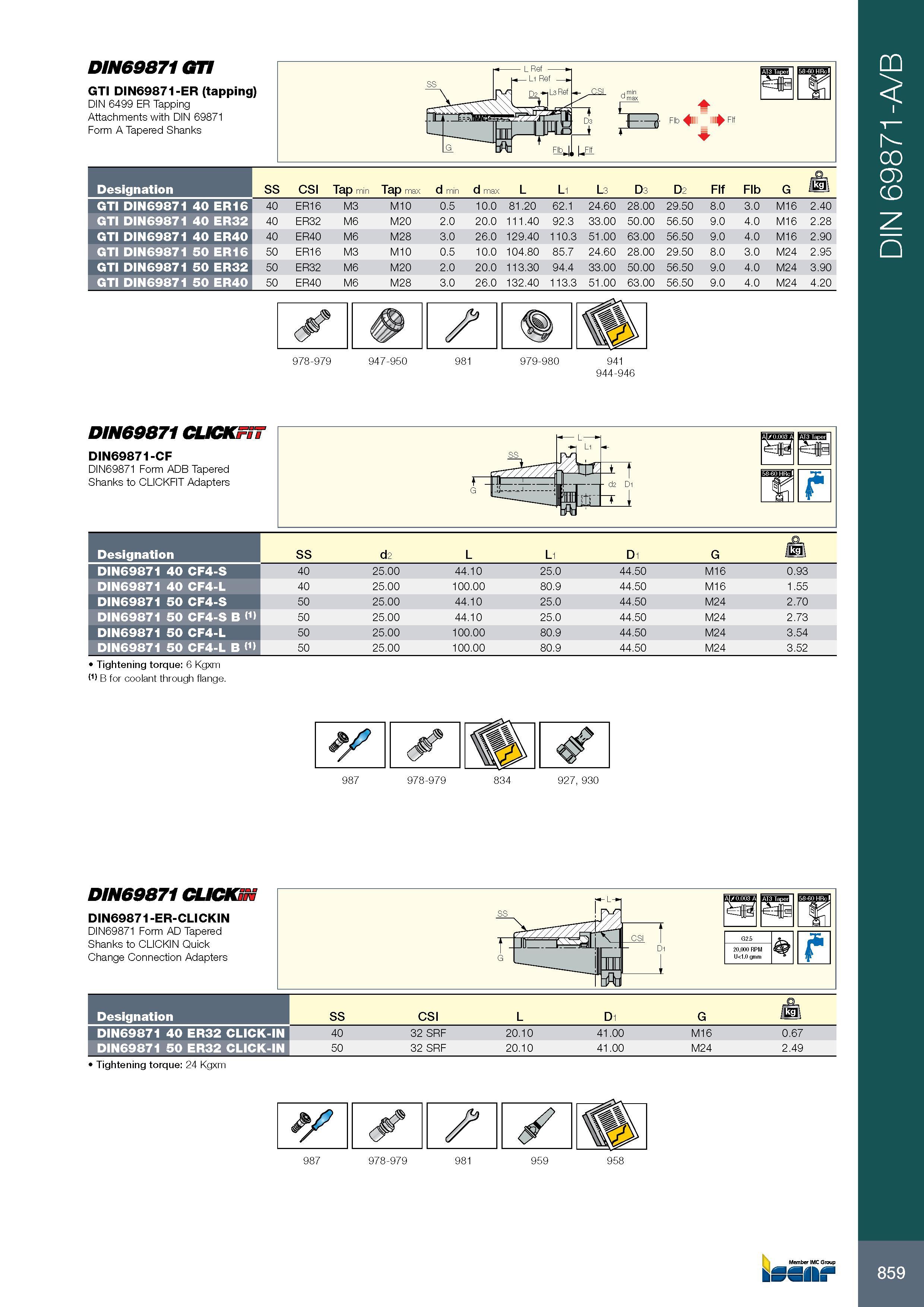

DIN69871GTI GTI DIN69871-ER (tapping) DIN 6499 ER Tapping Attachments with DIN 69871 Form A Tapered Shanks Обозначение Designation SS CSI Tap min Tap max d min d max L L1 L3 D3 D2 Flf Flb G O ra GTI DIN69871 40 ER16 40 ER16 M3 M10 0.5 10.0 81.20 62.1 24.60 28.00 29.50 8.0 3.0 M16 2.40 GTI DIN69871 40 ER32 40 ER32 M6 M20 2.0 20.0 111.40 92.3 33.00 50.00 56.50 9.0 4.0 M16 2.28 GTI DIN69871 40 ER40 40 ER40 M6 M28 3.0 26.0 129.40 110.3 51.00 63.00 56.50 9.0 4.0 M16 2.90 GTI DIN69871 50 ER16 50 ER16 M3 M10 0.5 10.0 104.80 85.7 24.60 28.00 29.50 8.0 3.0 M24 2.95 GTI DIN69871 50 ER32 50 ER32 M6 M20 2.0 20.0 113.30 94.4 33.00 50.00 56.50 9.0 4.0 M24 3.90 GTI DIN69871 50 ER40 50 ER40 M6 M28 3.0 26.0 132.40 113.3 51.00 63.00 56.50 9.0 4.0 M24 4.20 978-979 947-950 981 979-980 941 944-946 DIN69871 CUCK oT DIN69871-CF DIN69871 Form ADB Tapered Shanks to CLICKFIT Adapters Обозначение Designation SS d2 L L1 D1 G DIN69871 40 CF4-S 40 25.00 44.10 25.0 44.50 M16 0.93 DIN69871 40 CF4-L 40 25.00 100.00 80.9 44.50 M16 1.55 DIN69871 50 CF4-S 50 25.00 44.10 25.0 44.50 M24 2.70 DIN69871 50 CF4-S B (1) 50 25.00 44.10 25.0 44.50 M24 2.73 DIN69871 50 CF4-L 50 25.00 100.00 80.9 44.50 M24 3.54 DIN69871 50 CF4-L B (1) 50 25.00 100.00 80.9 44.50 M24 3.52 Tightening torque: 6 Kgxm (1) B for coolant through flange. DIN69871CUCKBN DIN69871-ER-CLICKIN DIN69871 Form AD Tapered Shanks to CLICKIN Quick Change Connection Adapters iH fl 625 20,000 RPM U<1.0 gmm Обозначение Designation SS CSI L D1 G /kgE DIN69871 40 ER32 CLICK-IN 40 32 SRF 20.10 41.00 M16 0.67 DIN69871 50 ER32 CLICK-IN 50 32 SRF 20.10 41.00 M24 2.49 Tightening torque: 24 Kgxm 987 978-979 981 959 958 Member IMC Group kSSlIf DIN 69871-A/B
