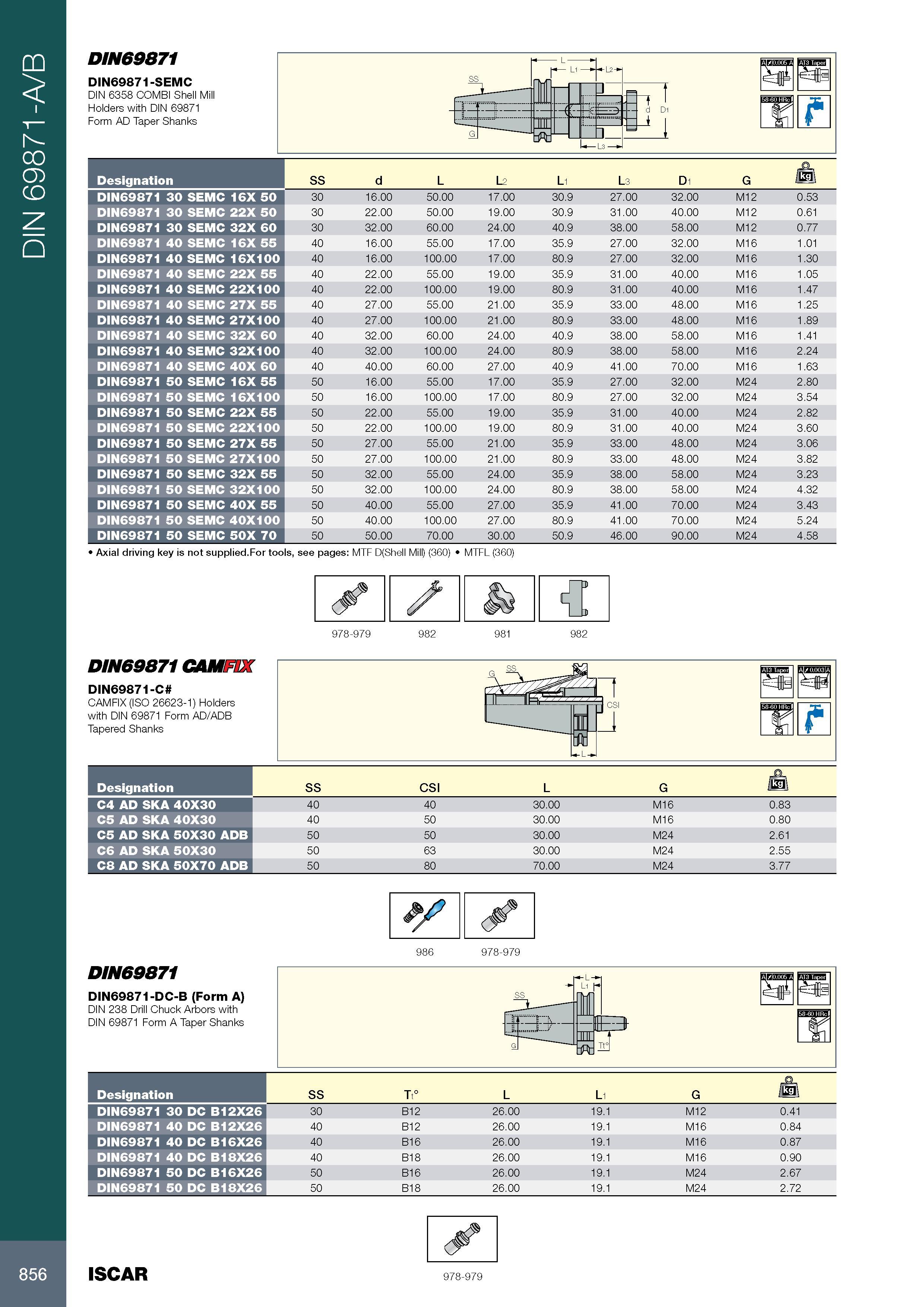

DIN 69871-A/B DIN69871 D I N69871-SEMC DIN 6358 COMBI Shell Mill Holders with DIN 69871 Form AD Taper Shanks Обозначение Designation SS d L L2 L1 L3 D1 G DIN69871 30 SEMC 16X 50 30 16.00 50.00 17.00 30.9 27.00 32.00 M12 0.53 DIN69871 30 SEMC 22X 50 30 22.00 50.00 19.00 30.9 31.00 40.00 M12 0.61 DIN69871 30 SEMC 32X 60 30 32.00 60.00 24.00 40.9 38.00 58.00 M12 0.77 DIN69871 40 SEMC 16X 55 40 16.00 55.00 17.00 35.9 27.00 32.00 M16 1.01 DIN69871 40 SEMC 16X100 40 16.00 100.00 17.00 80.9 27.00 32.00 M16 1.30 DIN69871 40 SEMC 22X 55 40 22.00 55.00 19.00 35.9 31.00 40.00 M16 1.05 DIN69871 40 SEMC 22X100 40 22.00 100.00 19.00 80.9 31.00 40.00 M16 1.47 DIN69871 40 SEMC 27X 55 40 27.00 55.00 21.00 35.9 33.00 48.00 M16 1.25 DIN69871 40 SEMC 27X100 40 27.00 100.00 21.00 80.9 33.00 48.00 M16 1.89 DIN69871 40 SEMC 32X 60 40 32.00 60.00 24.00 40.9 38.00 58.00 M16 1.41 DIN69871 40 SEMC 32X100 40 32.00 100.00 24.00 80.9 38.00 58.00 M16 2.24 DIN69871 40 SEMC 40X 60 40 40.00 60.00 27.00 40.9 41.00 70.00 M16 1.63 DIN69871 50 SEMC 16X 55 50 16.00 55.00 17.00 35.9 27.00 32.00 M24 2.80 DIN69871 50 SEMC 16X100 50 16.00 100.00 17.00 80.9 27.00 32.00 M24 3.54 DIN69871 50 SEMC 22X 55 50 22.00 55.00 19.00 35.9 31.00 40.00 M24 2.82 DIN69871 50 SEMC 22X100 50 22.00 100.00 19.00 80.9 31.00 40.00 M24 3.60 DIN69871 50 SEMC 27X 55 50 27.00 55.00 21.00 35.9 33.00 48.00 M24 3.06 DIN69871 50 SEMC 27X100 50 27.00 100.00 21.00 80.9 33.00 48.00 M24 3.82 DIN69871 50 SEMC 32X 55 50 32.00 55.00 24.00 35.9 38.00 58.00 M24 3.23 DIN69871 50 SEMC 32X100 50 32.00 100.00 24.00 80.9 38.00 58.00 M24 4.32 DIN69871 50 SEMC 40X 55 50 40.00 55.00 27.00 35.9 41.00 70.00 M24 3.43 DIN69871 50 SEMC 40X100 50 40.00 100.00 27.00 80.9 41.00 70.00 M24 5.24 DIN69871 50 SEMC 50X 70 50 50.00 70.00 30.00 50.9 46.00 90.00 M24 4.58 Axial driving key is not supplied.For tools, see pages: MTF D(Shell Mill) (360) MTFL (360) 978-979 982 981 982 DIM69871CAMFIX D I N69871-C CAMFIX (ISO 26623-1) Holders with DIN 69871 Form AD/ADB Tapered Shanks Обозначение Designation SS CSI L G 41 C4 AD SKA 40X30 40 40 30.00 M16 0.83 C5 AD SKA 40X30 40 50 30.00 M16 0.80 C5 AD SKA 50X30 ADB 50 50 30.00 M24 2.61 C6 AD SKA 50X30 50 63 30.00 M24 2.55 C8 AD SKA 50X70 ADB 50 80 70.00 M24 3.77 986 978-979 DIN69871 D I N69871-DC-B (Form A) DIN 238 Drill Chuck Arbors with DIN 69871 Form A Taper Shanks Обозначение Designation SS Tt° L L1 G DIN69871 30 DC B12X26 30 B12 26.00 19.1 M12 0.41 DIN69871 40 DC B12X26 40 B12 26.00 19.1 M16 0.84 DIN69871 40 DC B16X26 40 B16 26.00 19.1 M16 0.87 DIN69871 40 DC B18X26 40 B18 26.00 19.1 M16 0.90 DIN69871 50 DC B16X26 50 B16 26.00 19.1 M24 2.67 DIN69871 50 DC B18X26 50 B18 26.00 19.1 M24 2.72 856 ISCAR 978-979
