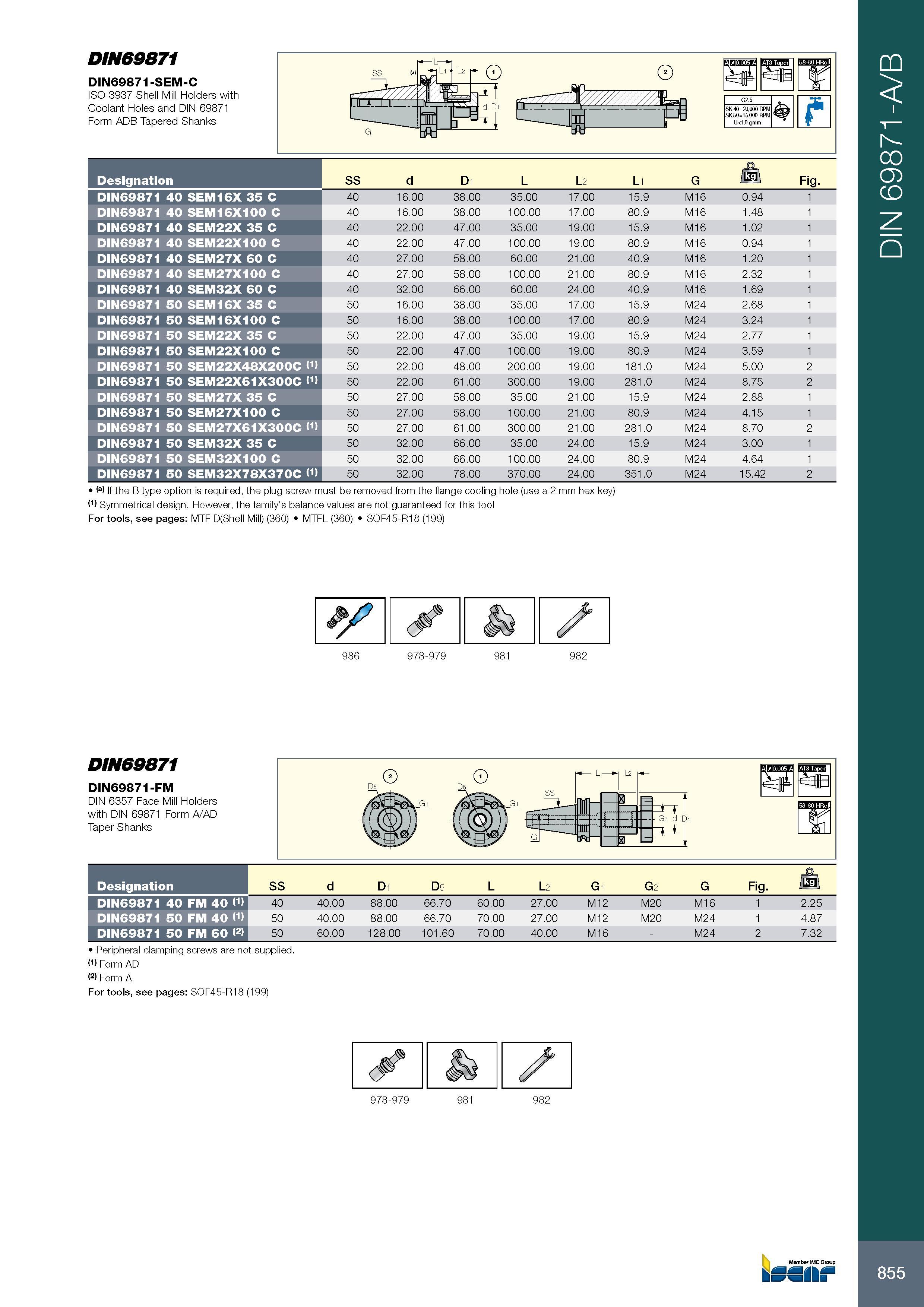

DIN69871 DIN69871-SEM-C ISO 3937 Shell Mill Holders with Coolant Holes and DIN 69871 Form ADB Tapered Shanks Обозначение Designation SS d D1 L L2 L1 G / k i\ Fig. DIN69871 40 SEM16X 35 C 40 16.00 38.00 35.00 17.00 15.9 M16 0.94 1 DIN69871 40 SEM16X100 C 40 16.00 38.00 100.00 17.00 80.9 M16 1.48 1 DIN69871 40 SEM22X 35 C 40 22.00 47.00 35.00 19.00 15.9 M16 1.02 1 DIN69871 40 SEM22X100 C 40 22.00 47.00 100.00 19.00 80.9 M16 0.94 1 DIN69871 40 SEM27X 60 C 40 27.00 58.00 60.00 21.00 40.9 M16 1.20 1 DIN69871 40 SEM27X100 C 40 27.00 58.00 100.00 21.00 80.9 M16 2.32 1 DIN69871 40 SEM32X 60 C 40 32.00 66.00 60.00 24.00 40.9 M16 1.69 1 DIN69871 50 SEM16X 35 C 50 16.00 38.00 35.00 17.00 15.9 M24 2.68 1 DIN69871 50 SEM16X100 C 50 16.00 38.00 100.00 17.00 80.9 M24 3.24 1 DIN69871 50 SEM22X 35 C 50 22.00 47.00 35.00 19.00 15.9 M24 2.77 1 DIN69871 50 SEM22X100 C 50 22.00 47.00 100.00 19.00 80.9 M24 3.59 1 DIN69871 50 SEM22X48X200C (1) 50 22.00 48.00 200.00 19.00 181.0 M24 5.00 DIN69871 50 SEM22X61X300C (1) 50 22.00 61.00 300.00 19.00 281.0 M24 8.75 DIN69871 50 SEM27X 35 C 50 27.00 58.00 35.00 21.00 15.9 M24 2.88 1 DIN69871 50 SEM27X100 C 50 27.00 58.00 100.00 21.00 80.9 M24 4.15 1 DIN69871 50 SEM27X61X300C (1) 50 27.00 61.00 300.00 21.00 281.0 M24 8.70 DIN69871 50 SEM32X 35 C 50 32.00 66.00 35.00 24.00 15.9 M24 3.00 1 DIN69871 50 SEM32X100 C 50 32.00 66.00 100.00 24.00 80.9 M24 4.64 1 DIN69871 50 SEM32X78X370C (1) 50 32.00 78.00 370.00 24.00 351.0 M24 15.42 2 (a) If the B type option is required, the plug screw must be removed from the flange cooling hole (use a 2 mm hex key) (1) Symmetrical design. However, the family's balance values are not guaranteed for this tool For tools, see pages: MTF D(Shell Mill) (360) MTFL (360) SOF45-R18 (199) 986 978-979 981 982 DIN69871 DIN69871-FM DIN 6357 Face Mill Holders with DIN 69871 Form A/AD Taper Shanks 855 Обозначение Designation SS d D1 D5 L L2 G1 G2 G Fig. Z DIN69871 40 FM 40 (1) 40 40.00 88.00 66.70 60.00 27.00 M12 M20 M16 1 2.25 DIN69871 50 FM 40 (1) 50 40.00 88.00 66.70 70.00 27.00 M12 M20 M24 1 4.87 DIN69871 50 FM 60 (2) 50 60.00 128.00 101.60 70.00 40.00 M16 - M24 2 7.32 Peripheral clamping screws are not supplied. (1) Form AD (2) Form A For tools, see pages: SOF45-R18 (199) 978-979 981 982 Member IMC Group kSSlIf DIN 69871-A/B
