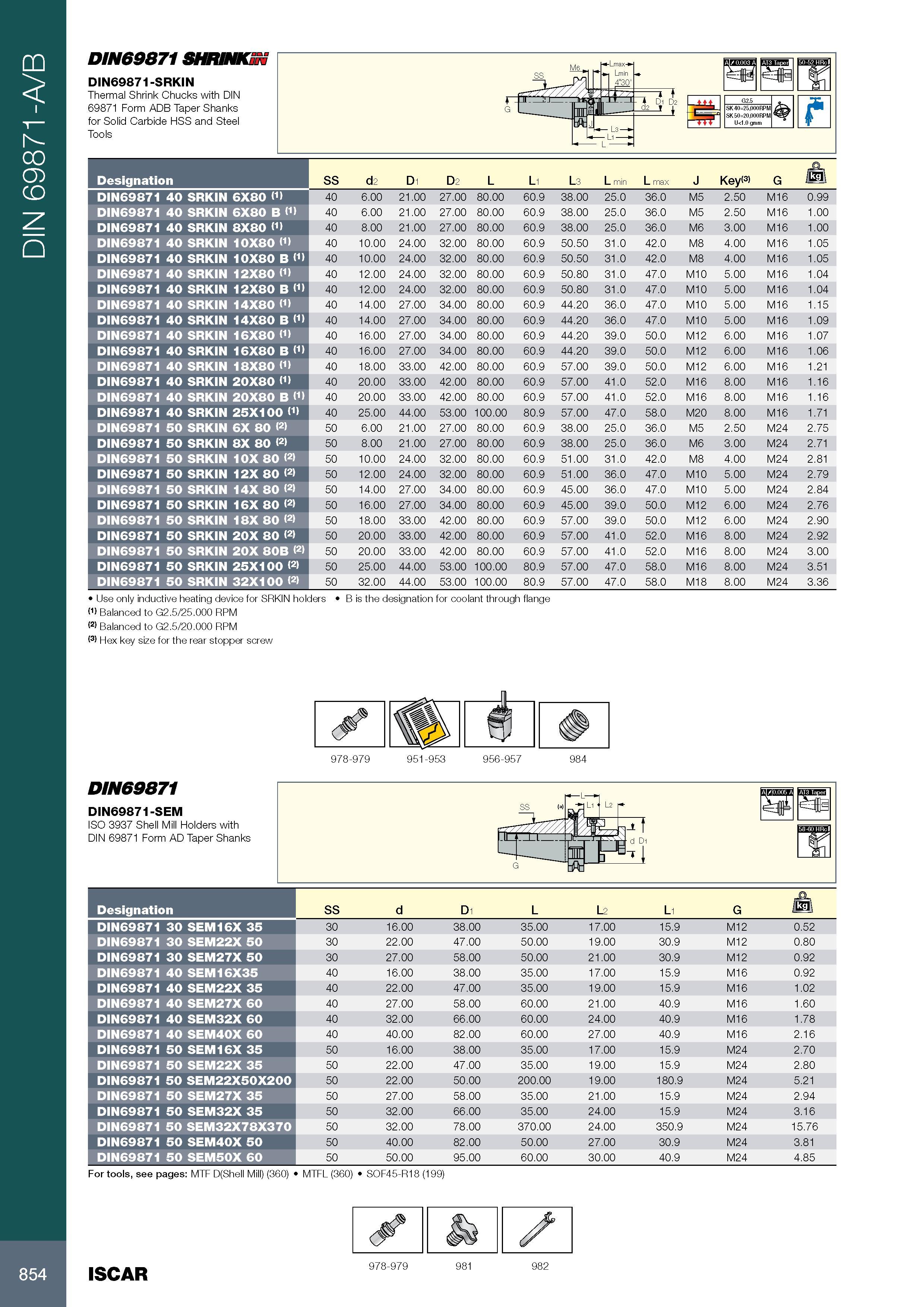

DIN 69871-A/B DIN69871 SHRINK DIN69871-SRKIN Thermal Shrink Chucks with DIN 69871 Form ADB Taper Shanks for Solid Carbide HSS and Steel Tools Обозначение Designation SS d2 D1 D2 L L1 L3 L min L max J Key<3> G /k l\ DIN69871 40 SRKIN 6X80 (1) 40 6.00 21.00 27.00 80.00 60.9 38.00 25.0 36.0 M5 2.50 M16 0.99 DIN69871 40 SRKIN 6X80 B (1) 40 6.00 21.00 27.00 80.00 60.9 38.00 25.0 36.0 M5 2.50 M16 1.00 DIN69871 40 SRKIN 8X80 (1) 40 8.00 21.00 27.00 80.00 60.9 38.00 25.0 36.0 M6 3.00 M16 1.00 DIN69871 40 SRKIN 10X80 (1) 40 10.00 24.00 32.00 80.00 60.9 50.50 31.0 42.0 M8 4.00 M16 1.05 DIN69871 40 SRKIN 10X80 B (1) 40 10.00 24.00 32.00 80.00 60.9 50.50 31.0 42.0 M8 4.00 M16 1.05 DIN69871 40 SRKIN 12X80 (1) 40 12.00 24.00 32.00 80.00 60.9 50.80 31.0 47.0 M10 5.00 M16 1.04 DIN69871 40 SRKIN 12X80 B (1) 40 12.00 24.00 32.00 80.00 60.9 50.80 31.0 47.0 M10 5.00 M16 1.04 DIN69871 40 SRKIN 14X80 (1) 40 14.00 27.00 34.00 80.00 60.9 44.20 36.0 47.0 M10 5.00 M16 1.15 DIN69871 40 SRKIN 14X80 B (1) 40 14.00 27.00 34.00 80.00 60.9 44.20 36.0 47.0 M10 5.00 M16 1.09 DIN69871 40 SRKIN 16X80 (1) 40 16.00 27.00 34.00 80.00 60.9 44.20 39.0 50.0 M12 6.00 M16 1.07 DIN69871 40 SRKIN 16X80 B (1) 40 16.00 27.00 34.00 80.00 60.9 44.20 39.0 50.0 M12 6.00 M16 1.06 DIN69871 40 SRKIN 18X80 (1) 40 18.00 33.00 42.00 80.00 60.9 57.00 39.0 50.0 M12 6.00 M16 1.21 DIN69871 40 SRKIN 20X80 (1) 40 20.00 33.00 42.00 80.00 60.9 57.00 41.0 52.0 M16 8.00 M16 1.16 DIN69871 40 SRKIN 20X80 B (1) 40 20.00 33.00 42.00 80.00 60.9 57.00 41.0 52.0 M16 8.00 M16 1.16 DIN69871 40 SRKIN 25X100 (1) 40 25.00 44.00 53.00 100.00 80.9 57.00 47.0 58.0 M20 8.00 M16 1.71 DIN69871 50 SRKIN 6X 80 (2) 50 6.00 21.00 27.00 80.00 60.9 38.00 25.0 36.0 M5 2.50 M24 2.75 DIN69871 50 SRKIN 8X 80 (2) 50 8.00 21.00 27.00 80.00 60.9 38.00 25.0 36.0 M6 3.00 M24 2.71 DIN69871 50 SRKIN 10X 80 (2) 50 10.00 24.00 32.00 80.00 60.9 51.00 31.0 42.0 M8 4.00 M24 2.81 DIN69871 50 SRKIN 12X 80 (2) 50 12.00 24.00 32.00 80.00 60.9 51.00 36.0 47.0 M10 5.00 M24 2.79 DIN69871 50 SRKIN 14X 80 (2) 50 14.00 27.00 34.00 80.00 60.9 45.00 36.0 47.0 M10 5.00 M24 2.84 DIN69871 50 SRKIN 16X 80 (2) 50 16.00 27.00 34.00 80.00 60.9 45.00 39.0 50.0 M12 6.00 M24 2.76 DIN69871 50 SRKIN 18X 80 (2) 50 18.00 33.00 42.00 80.00 60.9 57.00 39.0 50.0 M12 6.00 M24 2.90 DIN69871 50 SRKIN 20X 80 (2) 50 20.00 33.00 42.00 80.00 60.9 57.00 41.0 52.0 M16 8.00 M24 2.92 DIN69871 50 SRKIN 20X 80B (2) 50 20.00 33.00 42.00 80.00 60.9 57.00 41.0 52.0 M16 8.00 M24 3.00 DIN69871 50 SRKIN 25X100 (2) 50 25.00 44.00 53.00 100.00 80.9 57.00 47.0 58.0 M16 8.00 M24 3.51 DIN69871 50 SRKIN 32X100 (2) 50 32.00 44.00 53.00 100.00 80.9 57.00 47.0 58.0 M18 8.00 M24 3.36 Use only inductive heating device for SRKIN holders B is the designation for coolant through flange (1) Balanced to G2.5/25.000 RPM (2) Balanced to G2.5/20.000 RPM (3) Hex key size for the rear stopper screw DIN69871 DIN69871-SEM ISO 3937 Shell Mill Holders with DIN 69871 Form AD Taper Shanks n AH 51 Обозначение Designation SS d D1 L L2 L1 G DIN69871 30 SEM16X 35 30 16.00 38.00 35.00 17.00 15.9 M12 0.52 DIN69871 30 SEM22X 50 30 22.00 47.00 50.00 19.00 30.9 M12 0.80 DIN69871 30 SEM27X 50 30 27.00 58.00 50.00 21.00 30.9 M12 0.92 DIN69871 40 SEM16X35 40 16.00 38.00 35.00 17.00 15.9 M16 0.92 DIN69871 40 SEM22X 35 40 22.00 47.00 35.00 19.00 15.9 M16 1.02 DIN69871 40 SEM27X 60 40 27.00 58.00 60.00 21.00 40.9 M16 1.60 DIN69871 40 SEM32X 60 40 32.00 66.00 60.00 24.00 40.9 M16 1.78 DIN69871 40 SEM40X 60 40 40.00 82.00 60.00 27.00 40.9 M16 2.16 DIN69871 50 SEM16X 35 50 16.00 38.00 35.00 17.00 15.9 M24 2.70 DIN69871 50 SEM22X 35 50 22.00 47.00 35.00 19.00 15.9 M24 2.80 DIN69871 50 SEM22X50X200 50 22.00 50.00 200.00 19.00 180.9 M24 5.21 DIN69871 50 SEM27X 35 50 27.00 58.00 35.00 21.00 15.9 M24 2.94 DIN69871 50 SEM32X 35 50 32.00 66.00 35.00 24.00 15.9 M24 3.16 DIN69871 50 SEM32X78X370 50 32.00 78.00 370.00 24.00 350.9 M24 15.76 DIN69871 50 SEM40X 50 50 40.00 82.00 50.00 27.00 30.9 M24 3.81 DIN69871 50 SEM50X 60 50 50.00 95.00 60.00 30.00 40.9 M24 4.85 For tools, see pages: MTF D(Shell Mill) (360) MTFL (360) SOF45-R18 (199) 854 ISCAR 978-979 981 982
