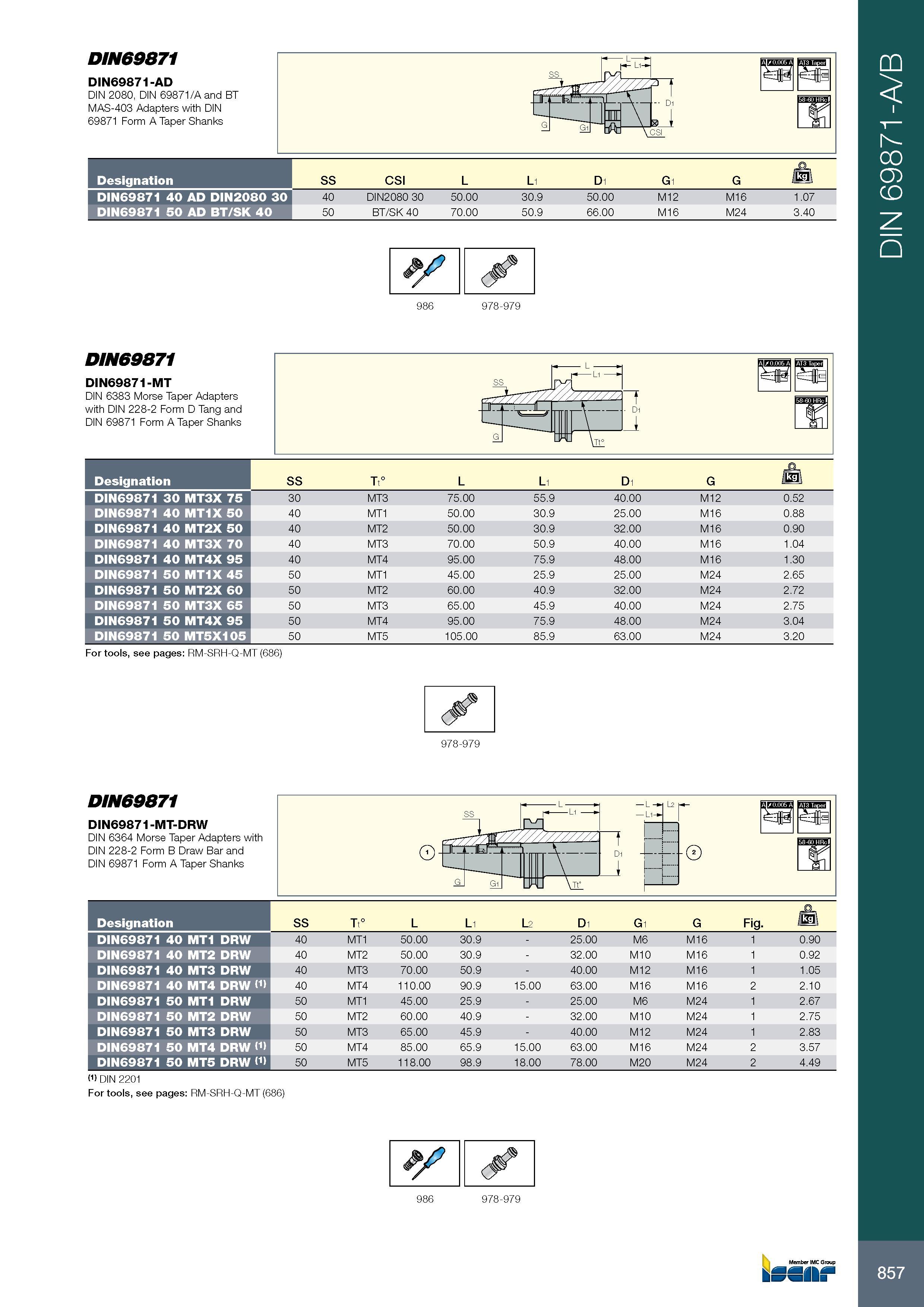

861 Каталог ISCAR 2017 Вращающийся режущий инструмент и инструментальная оснастка Стр.857

Каталог ISCAR 2017 Ротационный инструмент Стр. 857 0861 ENG Lab2u

DIN69871 DIN69871-AD DIN 2080, DIN 69871/A and BT MAS-403 Adapters with DIN 69871 Form A Taper Shanks Обозначение Designation SS CSI L L1 D1 G1 G /kg\ DIN69871 40 AD DIN2080 30 40 DIN2080 30 50.00 30.9 50.00 M12 M16 1.07 DIN69871 50 AD BT/SK 40 50 BT/SK 40 70.00 50.9 66.00 M16 M24 3.40 986 978-979 D/N69871 DIN69871-MT DIN 6383 Morse Taper Adapters with DIN 228-2 Form D Tang and DIN 69871 Form A Taper Shanks Обозначение Designation SS Tt° L L1 D1 G DIN69871 30 MT3X 75 30 MT3 75.00 55.9 40.00 M12 0.52 DIN69871 40 MT1X 50 40 MT1 50.00 30.9 25.00 M16 0.88 DIN69871 40 MT2X 50 40 MT2 50.00 30.9 32.00 M16 0.90 DIN69871 40 MT3X 70 40 MT3 70.00 50.9 40.00 M16 1.04 DIN69871 40 MT4X 95 40 MT4 95.00 75.9 48.00 M16 1.30 DIN69871 50 MT1X 45 50 MT1 45.00 25.9 25.00 M24 2.65 DIN69871 50 MT2X 60 50 MT2 60.00 40.9 32.00 M24 2.72 DIN69871 50 MT3X 65 50 MT3 65.00 45.9 40.00 M24 2.75 DIN69871 50 MT4X 95 50 MT4 95.00 75.9 48.00 M24 3.04 DIN69871 50 MT5X105 50 MT5 105.00 85.9 63.00 M24 3.20 For tools, see pages: RM-SRH-Q-MT (686) 978-979 DIN69871 DIN69871-MT-DRW DIN 6364 Morse Taper Adapters with DIN 228-2 Form B Draw Bar and DIN 69871 Form A Taper Shanks Обозначение Designation SS Tt° L L1 L2 D1 G1 G Fig. o DIN69871 40 MT1 DRW 40 MT1 50.00 30.9 - 25.00 M6 M16 1 0.90 DIN69871 40 MT2 DRW 40 MT2 50.00 30.9 - 32.00 M10 M16 1 0.92 DIN69871 40 MT3 DRW 40 MT3 70.00 50.9 - 40.00 M12 M16 1 1.05 DIN69871 40 MT4 DRW (1) 40 MT4 110.00 90.9 15.00 63.00 M16 M16 2 2.10 DIN69871 50 MT1 DRW 50 MT1 45.00 25.9 - 25.00 M6 M24 1 2.67 DIN69871 50 MT2 DRW 50 MT2 60.00 40.9 - 32.00 M10 M24 1 2.75 DIN69871 50 MT3 DRW 50 MT3 65.00 45.9 - 40.00 M12 M24 1 2.83 DIN69871 50 MT4 DRW (1) 50 MT4 85.00 65.9 15.00 63.00 M16 M24 2 3.57 DIN69871 50 MT5 DRW (1) 50 MT5 118.00 98.9 18.00 78.00 M20 M24 2 4.49 (1) DIN 2201 For tools, see pages: RM-SRH-Q-MT (686) 986 978-979 857 DIN 69871-A/B
