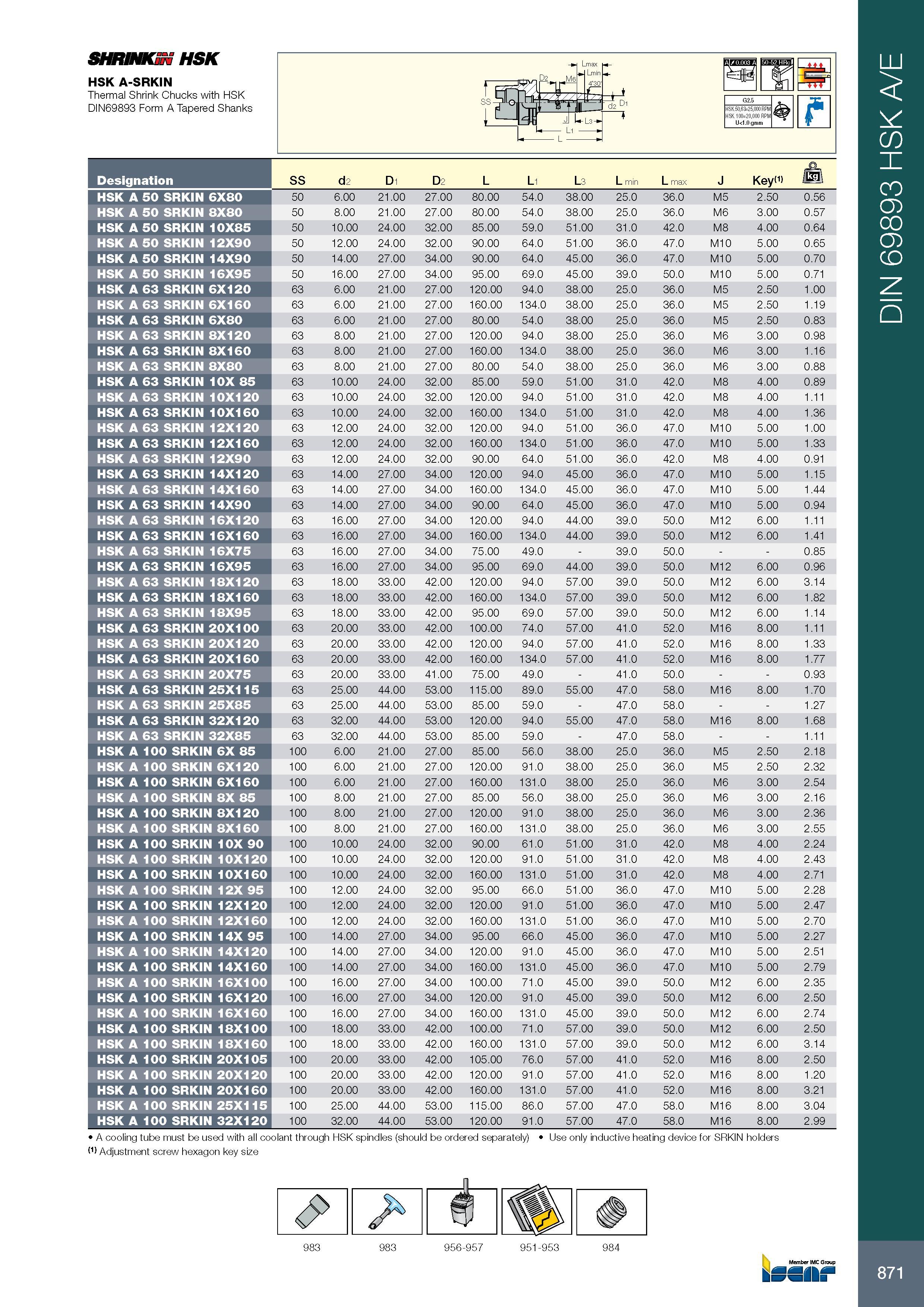

871 SHRINKS, HSK HSK A-SRKIN Thermal Shrink Chucks with HSK DIN69893 Form A Tapered Shanks g ft G2.5 HSK 50,63=25,000 HSK 100=20,000 U<1.0 gmm PM f6 Обозначение Designation SS d2 D1 D2 L L1 L3 L min L max J Key(1) / kgi\ HSK A 50 SRKIN 6X80 50 6.00 21.00 27.00 80.00 54.0 38.00 25.0 36.0 M5 2.50 0.56 HSK A 50 SRKIN 8X80 50 8.00 21.00 27.00 80.00 54.0 38.00 25.0 36.0 M6 3.00 0.57 HSK A 50 SRKIN 10X85 50 10.00 24.00 32.00 85.00 59.0 51.00 31.0 42.0 M8 4.00 0.64 HSK A 50 SRKIN 12X90 50 12.00 24.00 32.00 90.00 64.0 51.00 36.0 47.0 M10 5.00 0.65 HSK A 50 SRKIN 14X90 50 14.00 27.00 34.00 90.00 64.0 45.00 36.0 47.0 M10 5.00 0.70 HSK A 50 SRKIN 16X95 50 16.00 27.00 34.00 95.00 69.0 45.00 39.0 50.0 M10 5.00 0.71 HSK A 63 SRKIN 6X120 63 6.00 21.00 27.00 120.00 94.0 38.00 25.0 36.0 M5 2.50 1.00 HSK A 63 SRKIN 6X160 63 6.00 21.00 27.00 160.00 134.0 38.00 25.0 36.0 M5 2.50 1.19 HSK A 63 SRKIN 6X80 63 6.00 21.00 27.00 80.00 54.0 38.00 25.0 36.0 M5 2.50 0.83 HSK A 63 SRKIN 8X120 63 8.00 21.00 27.00 120.00 94.0 38.00 25.0 36.0 M6 3.00 0.98 HSK A 63 SRKIN 8X160 63 8.00 21.00 27.00 160.00 134.0 38.00 25.0 36.0 M6 3.00 1.16 HSK A 63 SRKIN 8X80 63 8.00 21.00 27.00 80.00 54.0 38.00 25.0 36.0 M6 3.00 0.88 HSK A 63 SRKIN 10X 85 63 10.00 24.00 32.00 85.00 59.0 51.00 31.0 42.0 M8 4.00 0.89 HSK A 63 SRKIN 10X120 63 10.00 24.00 32.00 120.00 94.0 51.00 31.0 42.0 M8 4.00 1.11 HSK A 63 SRKIN 10X160 63 10.00 24.00 32.00 160.00 134.0 51.00 31.0 42.0 M8 4.00 1.36 HSK A 63 SRKIN 12X120 63 12.00 24.00 32.00 120.00 94.0 51.00 36.0 47.0 M10 5.00 1.00 HSK A 63 SRKIN 12X160 63 12.00 24.00 32.00 160.00 134.0 51.00 36.0 47.0 M10 5.00 1.33 HSK A 63 SRKIN 12X90 63 12.00 24.00 32.00 90.00 64.0 51.00 36.0 42.0 M8 4.00 0.91 HSK A 63 SRKIN 14X120 63 14.00 27.00 34.00 120.00 94.0 45.00 36.0 47.0 M10 5.00 1.15 HSK A 63 SRKIN 14X160 63 14.00 27.00 34.00 160.00 134.0 45.00 36.0 47.0 M10 5.00 1.44 HSK A 63 SRKIN 14X90 63 14.00 27.00 34.00 90.00 64.0 45.00 36.0 47.0 M10 5.00 0.94 HSK A 63 SRKIN 16X120 63 16.00 27.00 34.00 120.00 94.0 44.00 39.0 50.0 M12 6.00 1.11 HSK A 63 SRKIN 16X160 63 16.00 27.00 34.00 160.00 134.0 44.00 39.0 50.0 M12 6.00 1.41 HSK A 63 SRKIN 16X75 63 16.00 27.00 34.00 75.00 49.0 - 39.0 50.0 0.85 HSK A 63 SRKIN 16X95 63 16.00 27.00 34.00 95.00 69.0 44.00 39.0 50.0 M12 6.00 0.96 HSK A 63 SRKIN 18X120 63 18.00 33.00 42.00 120.00 94.0 57.00 39.0 50.0 M12 6.00 3.14 HSK A 63 SRKIN 18X160 63 18.00 33.00 42.00 160.00 134.0 57.00 39.0 50.0 M12 6.00 1.82 HSK A 63 SRKIN 18X95 63 18.00 33.00 42.00 95.00 69.0 57.00 39.0 50.0 M12 6.00 1.14 HSK A 63 SRKIN 20X100 63 20.00 33.00 42.00 100.00 74.0 57.00 41.0 52.0 M16 8.00 1.11 HSK A 63 SRKIN 20X120 63 20.00 33.00 42.00 120.00 94.0 57.00 41.0 52.0 M16 8.00 1.33 HSK A 63 SRKIN 20X160 63 20.00 33.00 42.00 160.00 134.0 57.00 41.0 52.0 M16 8.00 1.77 HSK A 63 SRKIN 20X75 63 20.00 33.00 41.00 75.00 49.0 - 41.0 50.0 0.93 HSK A 63 SRKIN 25X115 63 25.00 44.00 53.00 115.00 89.0 55.00 47.0 58.0 M16 8.00 1.70 HSK A 63 SRKIN 25X85 63 25.00 44.00 53.00 85.00 59.0 - 47.0 58.0 1.27 HSK A 63 SRKIN 32X120 63 32.00 44.00 53.00 120.00 94.0 55.00 47.0 58.0 M16 8.00 1.68 HSK A 63 SRKIN 32X85 63 32.00 44.00 53.00 85.00 59.0 - 47.0 58.0 1.11 HSK A 100 SRKIN 6X 85 100 6.00 21.00 27.00 85.00 56.0 38.00 25.0 36.0 M5 2.50 2.18 HSK A 100 SRKIN 6X120 100 6.00 21.00 27.00 120.00 91.0 38.00 25.0 36.0 M5 2.50 2.32 HSK A 100 SRKIN 6X160 100 6.00 21.00 27.00 160.00 131.0 38.00 25.0 36.0 M6 3.00 2.54 HSK A 100 SRKIN 8X 85 100 8.00 21.00 27.00 85.00 56.0 38.00 25.0 36.0 M6 3.00 2.16 HSK A 100 SRKIN 8X120 100 8.00 21.00 27.00 120.00 91.0 38.00 25.0 36.0 M6 3.00 2.36 HSK A 100 SRKIN 8X160 100 8.00 21.00 27.00 160.00 131.0 38.00 25.0 36.0 M6 3.00 2.55 HSK A 100 SRKIN 10X 90 100 10.00 24.00 32.00 90.00 61.0 51.00 31.0 42.0 M8 4.00 2.24 HSK A 100 SRKIN 10X120 100 10.00 24.00 32.00 120.00 91.0 51.00 31.0 42.0 M8 4.00 2.43 HSK A 100 SRKIN 10X160 100 10.00 24.00 32.00 160.00 131.0 51.00 31.0 42.0 M8 4.00 2.71 HSK A 100 SRKIN 12X 95 100 12.00 24.00 32.00 95.00 66.0 51.00 36.0 47.0 M10 5.00 2.28 HSK A 100 SRKIN 12X120 100 12.00 24.00 32.00 120.00 91.0 51.00 36.0 47.0 M10 5.00 2.47 HSK A 100 SRKIN 12X160 100 12.00 24.00 32.00 160.00 131.0 51.00 36.0 47.0 M10 5.00 2.70 HSK A 100 SRKIN 14X 95 100 14.00 27.00 34.00 95.00 66.0 45.00 36.0 47.0 M10 5.00 2.27 HSK A 100 SRKIN 14X120 100 14.00 27.00 34.00 120.00 91.0 45.00 36.0 47.0 M10 5.00 2.51 HSK A 100 SRKIN 14X160 100 14.00 27.00 34.00 160.00 131.0 45.00 36.0 47.0 M10 5.00 2.79 HSK A 100 SRKIN 16X100 100 16.00 27.00 34.00 100.00 71.0 45.00 39.0 50.0 M12 6.00 2.35 HSK A 100 SRKIN 16X120 100 16.00 27.00 34.00 120.00 91.0 45.00 39.0 50.0 M12 6.00 2.50 HSK A 100 SRKIN 16X160 100 16.00 27.00 34.00 160.00 131.0 45.00 39.0 50.0 M12 6.00 2.74 HSK A 100 SRKIN 18X100 100 18.00 33.00 42.00 100.00 71.0 57.00 39.0 50.0 M12 6.00 2.50 HSK A 100 SRKIN 18X160 100 18.00 33.00 42.00 160.00 131.0 57.00 39.0 50.0 M12 6.00 3.14 HSK A 100 SRKIN 20X105 100 20.00 33.00 42.00 105.00 76.0 57.00 41.0 52.0 M16 8.00 2.50 HSK A 100 SRKIN 20X120 100 20.00 33.00 42.00 120.00 91.0 57.00 41.0 52.0 M16 8.00 1.20 HSK A 100 SRKIN 20X160 100 20.00 33.00 42.00 160.00 131.0 57.00 41.0 52.0 M16 8.00 3.21 HSK A 100 SRKIN 25X115 100 25.00 44.00 53.00 115.00 86.0 57.00 47.0 58.0 M16 8.00 3.04 HSK A 100 SRKIN 32X120 100 32.00 44.00 53.00 120.00 91.0 57.00 47.0 58.0 M16 8.00 2.99 A cooling tube must be used with all coolant through HSK spindles (should be ordered separately) Use only inductive heating device for SRKIN holders (1) Adjustment screw hexagon key size 983 983 956-957 951-953 984 Member IMC Group kSSlIf DIN 69893 HSK A/E
