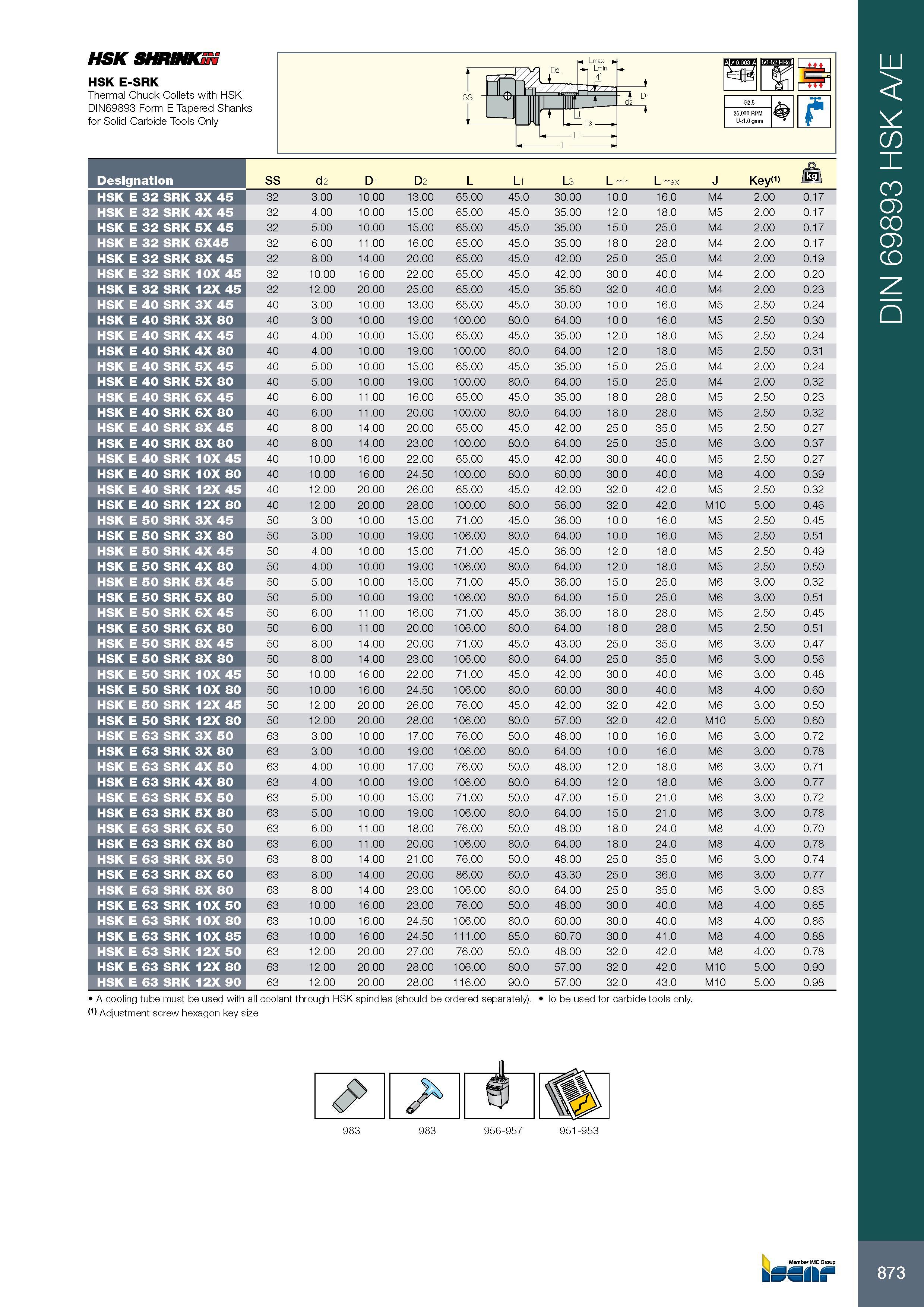

873 HSK SHRINKiN HSK E-SRK Thermal Chuck Collets with HSK DIN69893 Form E Tapered Shanks for Solid Carbide Tools Only m G2.5 25,000 RPM U<1.0 gmm Обозначение Designation SS d2 D1 D2 L L1 L3 L min L max J Key<1> HSK E 32 SRK 3X 45 32 3.00 10.00 13.00 65.00 45.0 30.00 10.0 16.0 M4 2.00 0.17 HSK E 32 SRK 4X 45 32 4.00 10.00 15.00 65.00 45.0 35.00 12.0 18.0 M5 2.00 0.17 HSK E 32 SRK 5X 45 32 5.00 10.00 15.00 65.00 45.0 35.00 15.0 25.0 M4 2.00 0.17 HSK E 32 SRK 6X45 32 6.00 11.00 16.00 65.00 45.0 35.00 18.0 28.0 M4 2.00 0.17 HSK E 32 SRK 8X 45 32 8.00 14.00 20.00 65.00 45.0 42.00 25.0 35.0 M4 2.00 0.19 HSK E 32 SRK 10X 45 32 10.00 16.00 22.00 65.00 45.0 42.00 30.0 40.0 M4 2.00 0.20 HSK E 32 SRK 12X 45 32 12.00 20.00 25.00 65.00 45.0 35.60 32.0 40.0 M4 2.00 0.23 HSK E 40 SRK 3X 45 40 3.00 10.00 13.00 65.00 45.0 30.00 10.0 16.0 M5 2.50 0.24 HSK E 40 SRK 3X 80 40 3.00 10.00 19.00 100.00 80.0 64.00 10.0 16.0 M5 2.50 0.30 HSK E 40 SRK 4X 45 40 4.00 10.00 15.00 65.00 45.0 35.00 12.0 18.0 M5 2.50 0.24 HSK E 40 SRK 4X 80 40 4.00 10.00 19.00 100.00 80.0 64.00 12.0 18.0 M5 2.50 0.31 HSK E 40 SRK 5X 45 40 5.00 10.00 15.00 65.00 45.0 35.00 15.0 25.0 M4 2.00 0.24 HSK E 40 SRK 5X 80 40 5.00 10.00 19.00 100.00 80.0 64.00 15.0 25.0 M4 2.00 0.32 HSK E 40 SRK 6X 45 40 6.00 11.00 16.00 65.00 45.0 35.00 18.0 28.0 M5 2.50 0.23 HSK E 40 SRK 6X 80 40 6.00 11.00 20.00 100.00 80.0 64.00 18.0 28.0 M5 2.50 0.32 HSK E 40 SRK 8X 45 40 8.00 14.00 20.00 65.00 45.0 42.00 25.0 35.0 M5 2.50 0.27 HSK E 40 SRK 8X 80 40 8.00 14.00 23.00 100.00 80.0 64.00 25.0 35.0 M6 3.00 0.37 HSK E 40 SRK 10X 45 40 10.00 16.00 22.00 65.00 45.0 42.00 30.0 40.0 M5 2.50 0.27 HSK E 40 SRK 10X 80 40 10.00 16.00 24.50 100.00 80.0 60.00 30.0 40.0 M8 4.00 0.39 HSK E 40 SRK 12X 45 40 12.00 20.00 26.00 65.00 45.0 42.00 32.0 42.0 M5 2.50 0.32 HSK E 40 SRK 12X 80 40 12.00 20.00 28.00 100.00 80.0 56.00 32.0 42.0 M10 5.00 0.46 HSK E 50 SRK 3X 45 50 3.00 10.00 15.00 71.00 45.0 36.00 10.0 16.0 M5 2.50 0.45 HSK E 50 SRK 3X 80 50 3.00 10.00 19.00 106.00 80.0 64.00 10.0 16.0 M5 2.50 0.51 HSK E 50 SRK 4X 45 50 4.00 10.00 15.00 71.00 45.0 36.00 12.0 18.0 M5 2.50 0.49 HSK E 50 SRK 4X 80 50 4.00 10.00 19.00 106.00 80.0 64.00 12.0 18.0 M5 2.50 0.50 HSK E 50 SRK 5X 45 50 5.00 10.00 15.00 71.00 45.0 36.00 15.0 25.0 M6 3.00 0.32 HSK E 50 SRK 5X 80 50 5.00 10.00 19.00 106.00 80.0 64.00 15.0 25.0 M6 3.00 0.51 HSK E 50 SRK 6X 45 50 6.00 11.00 16.00 71.00 45.0 36.00 18.0 28.0 M5 2.50 0.45 HSK E 50 SRK 6X 80 50 6.00 11.00 20.00 106.00 80.0 64.00 18.0 28.0 M5 2.50 0.51 HSK E 50 SRK 8X 45 50 8.00 14.00 20.00 71.00 45.0 43.00 25.0 35.0 M6 3.00 0.47 HSK E 50 SRK 8X 80 50 8.00 14.00 23.00 106.00 80.0 64.00 25.0 35.0 M6 3.00 0.56 HSK E 50 SRK 10X 45 50 10.00 16.00 22.00 71.00 45.0 42.00 30.0 40.0 M6 3.00 0.48 HSK E 50 SRK 10X 80 50 10.00 16.00 24.50 106.00 80.0 60.00 30.0 40.0 M8 4.00 0.60 HSK E 50 SRK 12X 45 50 12.00 20.00 26.00 76.00 45.0 42.00 32.0 42.0 M6 3.00 0.50 HSK E 50 SRK 12X 80 50 12.00 20.00 28.00 106.00 80.0 57.00 32.0 42.0 M10 5.00 0.60 HSK E 63 SRK 3X 50 63 3.00 10.00 17.00 76.00 50.0 48.00 10.0 16.0 M6 3.00 0.72 HSK E 63 SRK 3X 80 63 3.00 10.00 19.00 106.00 80.0 64.00 10.0 16.0 M6 3.00 0.78 HSK E 63 SRK 4X 50 63 4.00 10.00 17.00 76.00 50.0 48.00 12.0 18.0 M6 3.00 0.71 HSK E 63 SRK 4X 80 63 4.00 10.00 19.00 106.00 80.0 64.00 12.0 18.0 M6 3.00 0.77 HSK E 63 SRK 5X 50 63 5.00 10.00 15.00 71.00 50.0 47.00 15.0 21.0 M6 3.00 0.72 HSK E 63 SRK 5X 80 63 5.00 10.00 19.00 106.00 80.0 64.00 15.0 21.0 M6 3.00 0.78 HSK E 63 SRK 6X 50 63 6.00 11.00 18.00 76.00 50.0 48.00 18.0 24.0 M8 4.00 0.70 HSK E 63 SRK 6X 80 63 6.00 11.00 20.00 106.00 80.0 64.00 18.0 24.0 M8 4.00 0.78 HSK E 63 SRK 8X 50 63 8.00 14.00 21.00 76.00 50.0 48.00 25.0 35.0 M6 3.00 0.74 HSK E 63 SRK 8X 60 63 8.00 14.00 20.00 86.00 60.0 43.30 25.0 36.0 M6 3.00 0.77 HSK E 63 SRK 8X 80 63 8.00 14.00 23.00 106.00 80.0 64.00 25.0 35.0 M6 3.00 0.83 HSK E 63 SRK 10X 50 63 10.00 16.00 23.00 76.00 50.0 48.00 30.0 40.0 M8 4.00 0.65 HSK E 63 SRK 10X 80 63 10.00 16.00 24.50 106.00 80.0 60.00 30.0 40.0 M8 4.00 0.86 HSK E 63 SRK 10X 85 63 10.00 16.00 24.50 111.00 85.0 60.70 30.0 41.0 M8 4.00 0.88 HSK E 63 SRK 12X 50 63 12.00 20.00 27.00 76.00 50.0 48.00 32.0 42.0 M8 4.00 0.78 HSK E 63 SRK 12X 80 63 12.00 20.00 28.00 106.00 80.0 57.00 32.0 42.0 M10 5.00 0.90 HSK E 63 SRK 12X 90 63 12.00 20.00 28.00 116.00 90.0 57.00 32.0 43.0 M10 5.00 0.98 A cooling tube must be used with all coolant through HSK spindles (should be ordered separately). To be used for carbide tools only. (1) Adjustment screw hexagon key size DIN 69893 HSK A/E
