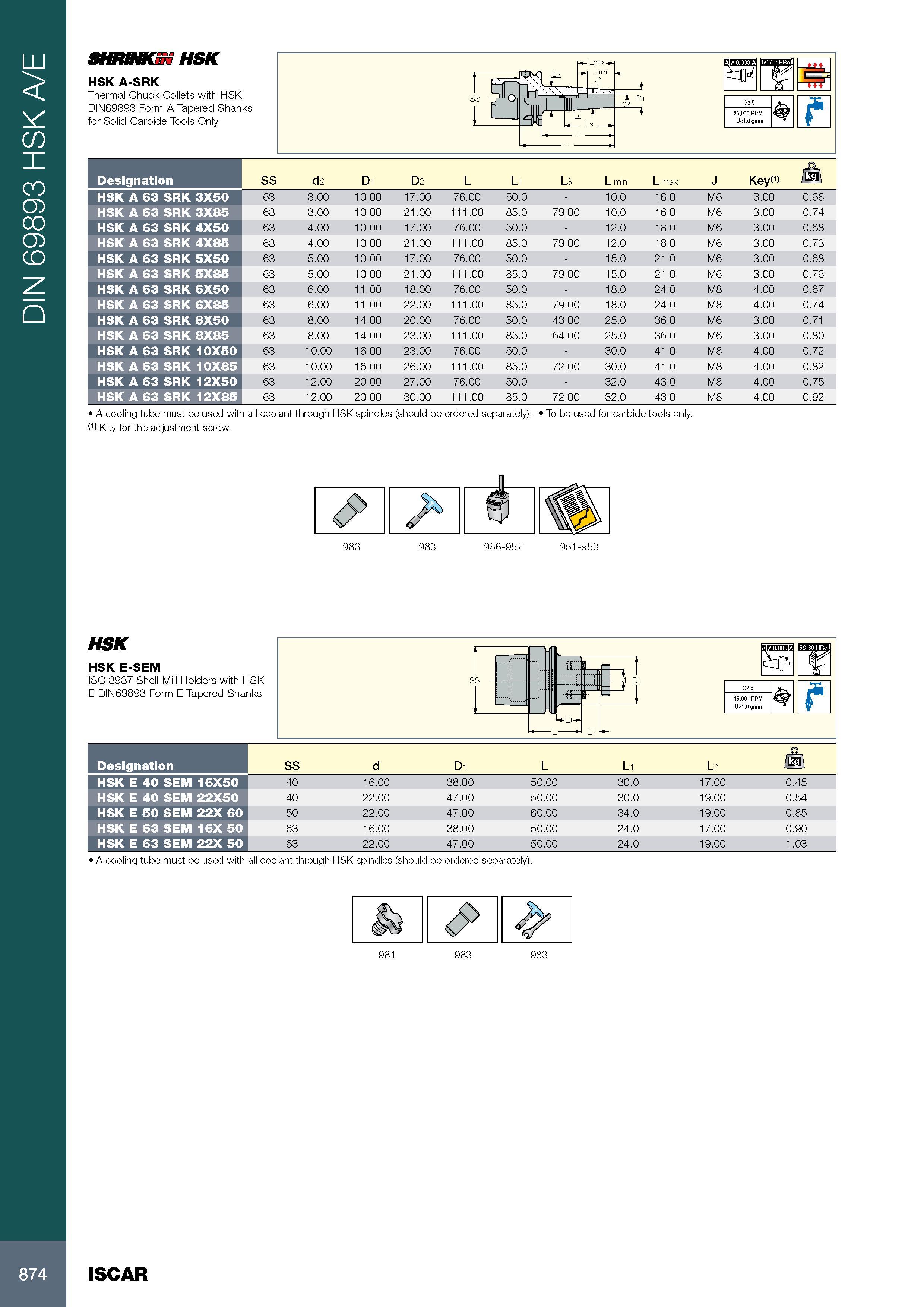

DIN 69893 HSK A/E SHRINKS, HSK H SK A-SRK Thermal Chuck Collets with HSK DIN69893 Form A Tapered Shanks f or Solid Carbide Tools Only w G2.5 25,000 RPM U<1.0 gmm f6 Обозначение Designation SS d2 D1 D2 L L1 L3 L min L max J Key<1> M HSK A 63 SRK 3X50 63 3.00 10.00 17.00 76.00 50.0 - 10.0 16.0 M6 3.00 0.68 HSK A 63 SRK 3X85 63 3.00 10.00 21.00 111.00 85.0 79.00 10.0 16.0 M6 3.00 0.74 HSK A 63 SRK 4X50 63 4.00 10.00 17.00 76.00 50.0 - 12.0 18.0 M6 3.00 0.68 HSK A 63 SRK 4X85 63 4.00 10.00 21.00 111.00 85.0 79.00 12.0 18.0 M6 3.00 0.73 HSK A 63 SRK 5X50 63 5.00 10.00 17.00 76.00 50.0 - 15.0 21.0 M6 3.00 0.68 HSK A 63 SRK 5X85 63 5.00 10.00 21.00 111.00 85.0 79.00 15.0 21.0 M6 3.00 0.76 HSK A 63 SRK 6X50 63 6.00 11.00 18.00 76.00 50.0 - 18.0 24.0 M8 4.00 0.67 HSK A 63 SRK 6X85 63 6.00 11.00 22.00 111.00 85.0 79.00 18.0 24.0 M8 4.00 0.74 HSK A 63 SRK 8X50 63 8.00 14.00 20.00 76.00 50.0 43.00 25.0 36.0 M6 3.00 0.71 HSK A 63 SRK 8X85 63 8.00 14.00 23.00 111.00 85.0 64.00 25.0 36.0 M6 3.00 0.80 HSK A 63 SRK 10X50 63 10.00 16.00 23.00 76.00 50.0 - 30.0 41.0 M8 4.00 0.72 HSK A 63 SRK 10X85 63 10.00 16.00 26.00 111.00 85.0 72.00 30.0 41.0 M8 4.00 0.82 HSK A 63 SRK 12X50 63 12.00 20.00 27.00 76.00 50.0 - 32.0 43.0 M8 4.00 0.75 HSK A 63 SRK 12X85 63 12.00 20.00 30.00 111.00 85.0 72.00 32.0 43.0 M8 4.00 0.92 A cooling tube must be used with all coolant through HSK spindles (should be ordered separately). To be used for carbide tools only. (1) Key for the adjustment screw. HSK HSK E-SEM ISO 3937 Shell Mill Holders with HSK E DIN69893 Form E Tapered Shanks Обозначение Designation SS d D1 L L1 L2 HSK E 40 SEM 16X50 40 16.00 38.00 50.00 30.0 17.00 0.45 HSK E 40 SEM 22X50 40 22.00 47.00 50.00 30.0 19.00 0.54 HSK E 50 SEM 22X 60 50 22.00 47.00 60.00 34.0 19.00 0.85 HSK E 63 SEM 16X 50 63 16.00 38.00 50.00 24.0 17.00 0.90 HSK E 63 SEM 22X 50 63 22.00 47.00 50.00 24.0 19.00 1.03 A cooling tube must be used with all coolant through HSK spindles (should be ordered separately). 981 983 983 874 ISCAR
