881 Каталог ISCAR 2017 Вращающийся режущий инструмент и инструментальная оснастка Стр.877

Каталог ISCAR 2017 Ротационный инструмент Стр. 877 0881 ENG Lab2u

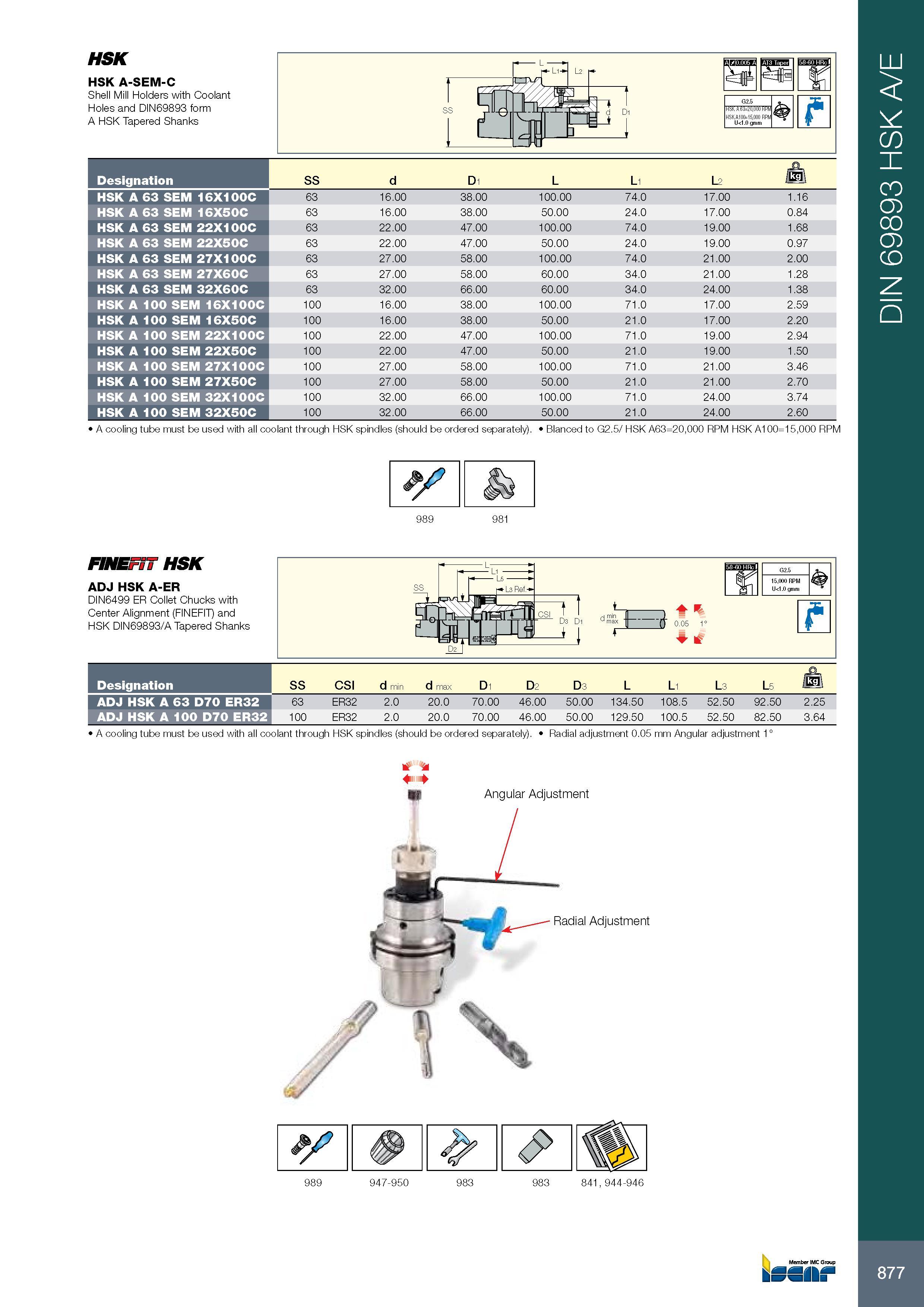

877 HSK HSK A-SEM-C Shell Mill Holders with Coolant Holes and DIN69893 form A HSK Tapered Shanks m n p G2.5 <9 HSK A100=15,000 RPM U<1.0 gmm Обозначение Designation SS d D1 L L1 L2 o HSK A 63 SEM 16X100C 63 16.00 38.00 100.00 74.0 17.00 1.16 HSK A 63 SEM 16X50C 63 16.00 38.00 50.00 24.0 17.00 0.84 HSK A 63 SEM 22X100C 63 22.00 47.00 100.00 74.0 19.00 1.68 HSK A 63 SEM 22X50C 63 22.00 47.00 50.00 24.0 19.00 0.97 HSK A 63 SEM 27X100C 63 27.00 58.00 100.00 74.0 21.00 2.00 HSK A 63 SEM 27X60C 63 27.00 58.00 60.00 34.0 21.00 1.28 HSK A 63 SEM 32X60C 63 32.00 66.00 60.00 34.0 24.00 1.38 HSK A 100 SEM 16X100C 100 16.00 38.00 100.00 71.0 17.00 2.59 HSK A 100 SEM 16X50C 100 16.00 38.00 50.00 21.0 17.00 2.20 HSK A 100 SEM 22X100C 100 22.00 47.00 100.00 71.0 19.00 2.94 HSK A 100 SEM 22X50C 100 22.00 47.00 50.00 21.0 19.00 1.50 HSK A 100 SEM 27X100C 100 27.00 58.00 100.00 71.0 21.00 3.46 HSK A 100 SEM 27X50C 100 27.00 58.00 50.00 21.0 21.00 2.70 HSK A 100 SEM 32X100C 100 32.00 66.00 100.00 71.0 24.00 3.74 HSK A 100 SEM 32X50C 100 32.00 66.00 50.00 21.0 24.00 2.60 A cooling tube must be used with all coolant through HSK spindles (should be ordered separately). Blanced to G2.5/ HSK A63=20,000 RPM HSK A100=15,000 RPM 989 981 FINEu u u HSK ADJ HSK A-ER DIN6499 ER Collet Chucks with Center Alignment (FINEFIT) and HSK DIN69893/A Tapered Shanks Обозначение Designation ADJ HSK A 63 D70 ER32 ADJ HSK A 100 D70 ER32 SS CSI d min d max D1 D2 D3 L L1 L3 L5 / kgi\ 63 ER32 2.0 20.0 70.00 46.00 50.00 134.50 108.5 52.50 92.50 2.25 100 ER32 2.0 20.0 70.00 46.00 50.00 129.50 100.5 52.50 82.50 3.64 A cooling tube must be used with all coolant through HSK spindles (should be ordered separately). Radial adjustment 0.05 mm Angular adjustment 1° a > Angular Adjustment Radial Adjustment 989 947-950 983 983 841, 944-946 DIN 69893 HSK A/E
