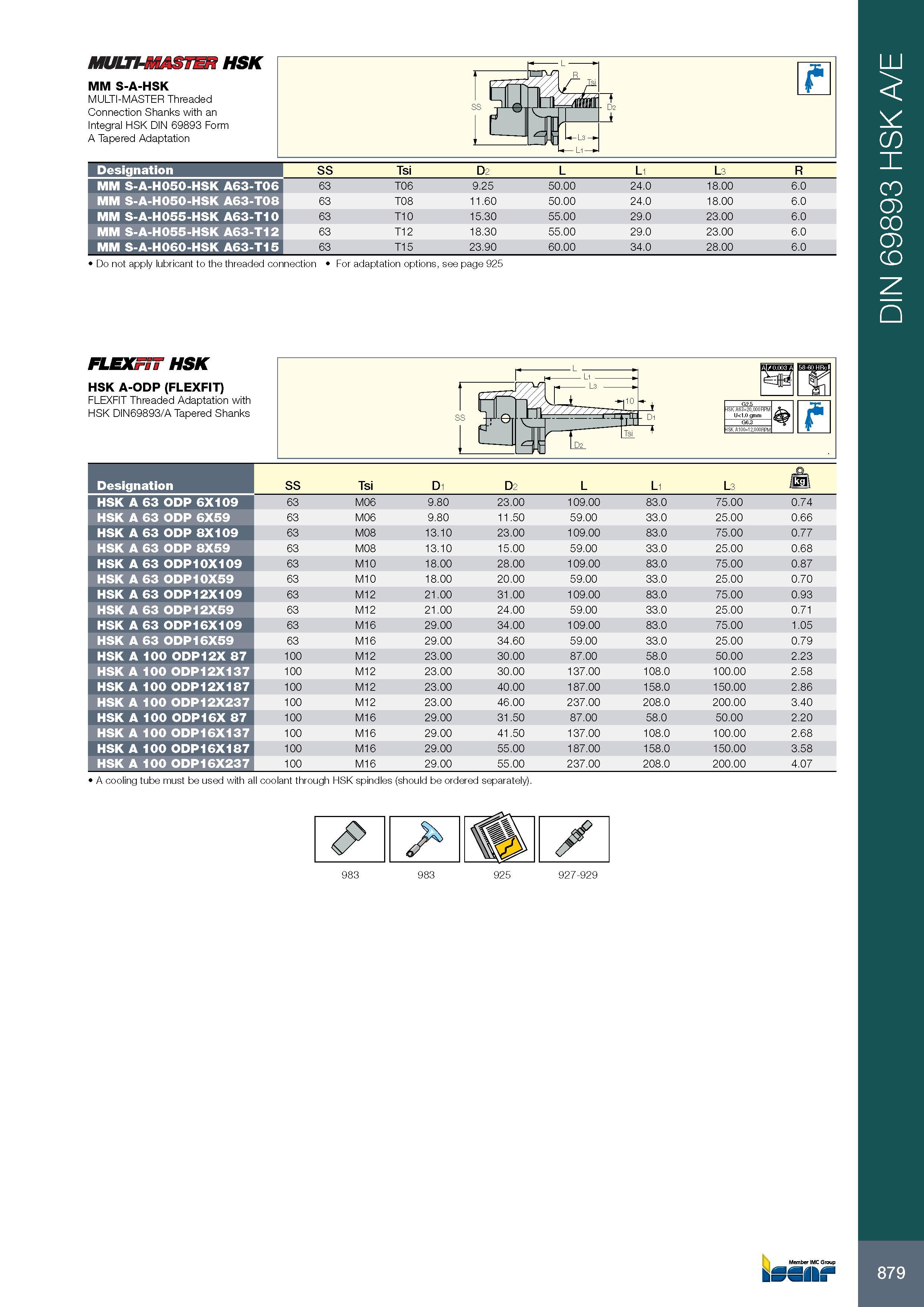

879 MULTI-MASTER HSK MM S-A-HSK MULTI-MASTER Threaded Connection Shanks with an Integral HSK DIN 69893 Form A Tapered Adaptation SS Tsj D2 L L L3 R 63 T06 9.25 50.00 24.0 18.00 6.0 63 T08 11.60 50.00 24.0 18.00 6.0 63 T10 15.30 55.00 29.0 23.00 6.0 63 T12 18.30 55.00 29.0 23.00 6.0 63 T15 23.90 60.00 34.0 28.00 6.0 Do not apply lubricant to the threaded connection For adaptation options, see page 925 Обозначение Designation MM S-A-H050-HSK A63-T06 MM S-A-H050-HSK A63-T08 MM S-A-H055-HSK A63-T10 MM S-A-H055-HSK A63-T12 MM S-A-H060-HSK A63-T15 FLEXFIT HSK HSK A-ODP (FLEXFIT) FLEXFIT Threaded Adaptation with HSK DIN69893/A Tapered Shanks Обозначение Designation SS Tsi D1 D2 L L1 L3 O M HSK A 63 ODP 6X109 63 M06 9.80 23.00 109.00 83.0 75.00 0.74 HSK A 63 ODP 6X59 63 M06 9.80 11.50 59.00 33.0 25.00 0.66 HSK A 63 ODP 8X109 63 M08 13.10 23.00 109.00 83.0 75.00 0.77 HSK A 63 ODP 8X59 63 M08 13.10 15.00 59.00 33.0 25.00 0.68 HSK A 63 ODP10X109 63 M10 18.00 28.00 109.00 83.0 75.00 0.87 HSK A 63 ODP10X59 63 M10 18.00 20.00 59.00 33.0 25.00 0.70 HSK A 63 ODP12X109 63 M12 21.00 31.00 109.00 83.0 75.00 0.93 HSK A 63 ODP12X59 63 M12 21.00 24.00 59.00 33.0 25.00 0.71 HSK A 63 ODP16X109 63 M16 29.00 34.00 109.00 83.0 75.00 1.05 HSK A 63 ODP16X59 63 M16 29.00 34.60 59.00 33.0 25.00 0.79 HSK A 100 ODP12X 87 100 M12 23.00 30.00 87.00 58.0 50.00 2.23 HSK A 100 ODP12X137 100 M12 23.00 30.00 137.00 108.0 100.00 2.58 HSK A 100 ODP12X187 100 M12 23.00 40.00 187.00 158.0 150.00 2.86 HSK A 100 ODP12X237 100 M12 23.00 46.00 237.00 208.0 200.00 3.40 HSK A 100 ODP16X 87 100 M16 29.00 31.50 87.00 58.0 50.00 2.20 HSK A 100 ODP16X137 100 M16 29.00 41.50 137.00 108.0 100.00 2.68 HSK A 100 ODP16X187 100 M16 29.00 55.00 187.00 158.0 150.00 3.58 HSK A 100 ODP16X237 100 M16 29.00 55.00 237.00 208.0 200.00 4.07 A cooling tube must be used with all coolant through HSK spindles (should be ordered separately). 983 983 925 927-929 DIN 69893 HSK A/E
