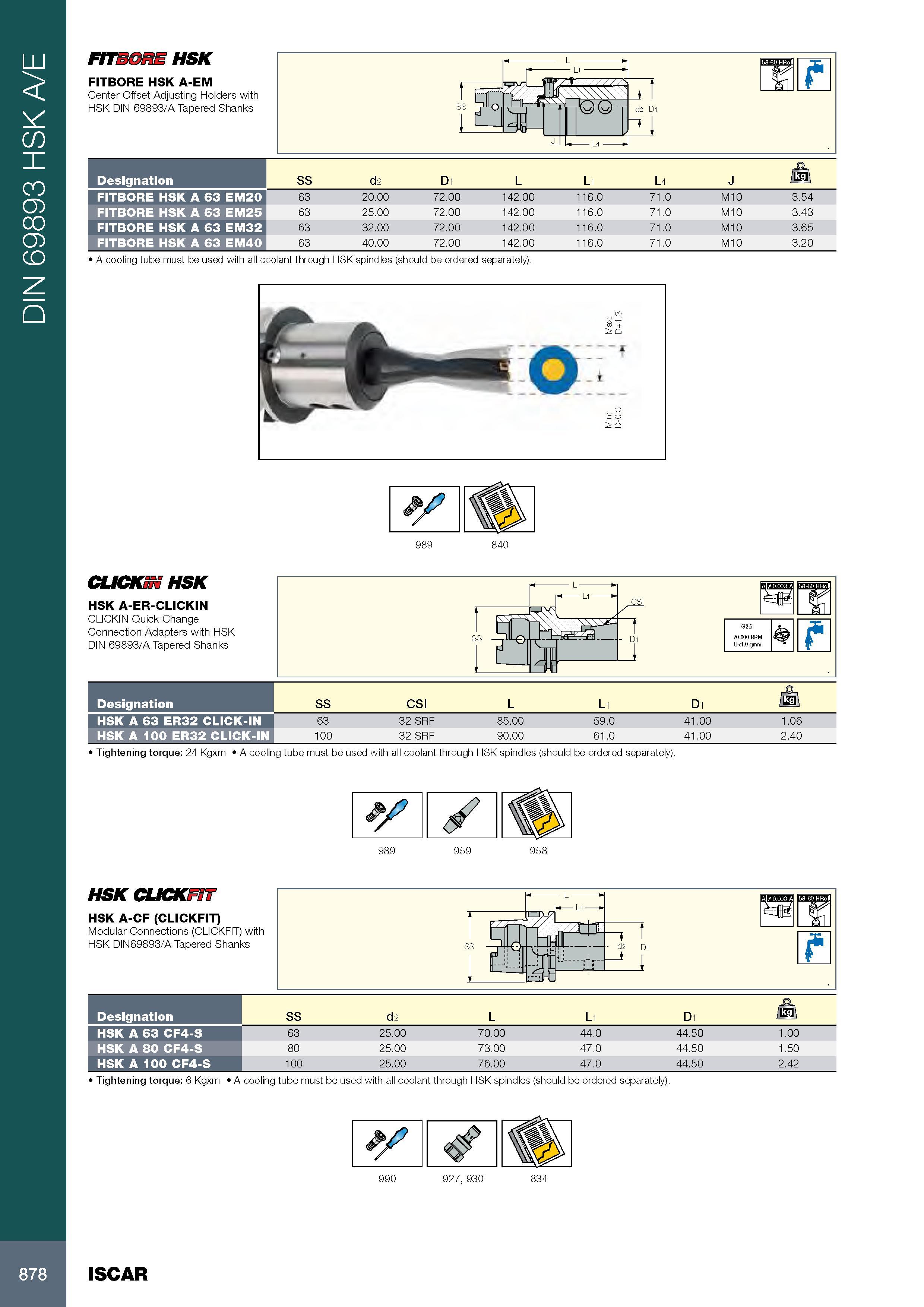

DIN 69893 HSK A/E FITBGrtE HSK FITBORE HSK A-EM Center Offset Adjusting Holders with HSK DIN 69893/A Tapered Shanks Обозначение Designation SS d2 D1 L L1 L4 J JPt /kg\ FITBORE HSK A 63 EM20 63 20.00 72.00 142.00 116.0 71.0 M10 3.54 FITBORE HSK A 63 EM25 63 25.00 72.00 142.00 116.0 71.0 M10 3.43 FITBORE HSK A 63 EM32 63 32.00 72.00 142.00 116.0 71.0 M10 3.65 FITBORE HSK A 63 EM40 63 40.00 72.00 142.00 116.0 71.0 M10 3.20 A cooling tube must be used with all coolant through HSK spindles (should be ordered separately). CUCIGN HSK HSK A-ER-CLICKIN CLICKIN Quick Change Connection Adapters with HSK DIN 69893/A Tapered Shanks Обозначение Designation HSK A 63 ER32 CLICK-IN HSK A 100 ER32 CLICK-IN SS CSI L1 D1 63 100 32 SRF 32 SRF 85.00 90.00 59.0 61.0 41.00 41.00 1.06 2.40 Tightening torque: 24 Kgxm A cooling tube must be used with all coolant through HSK spindles (should be ordered separately). L HSK CUCKFI7 HSK A-CF (CLICKFIT) Modular Connections (CLICKFIT) with HSK DIN69893/A Tapered Shanks Обозначение Designation HSK A 63 CF4-S HSK A 80 CF4-S HSK A 100 CF4-S SS d2 L L1 D1 63 80 100 25.00 25.00 25.00 70.00 73.00 76.00 44.0 47.0 47.0 44.50 44.50 44.50 1.00 1.50 2.42 Tightening torque: 6 Kgxm A cooling tube must be used with all coolant through HSK spindles (should be ordered separately). 878 ISCAR
