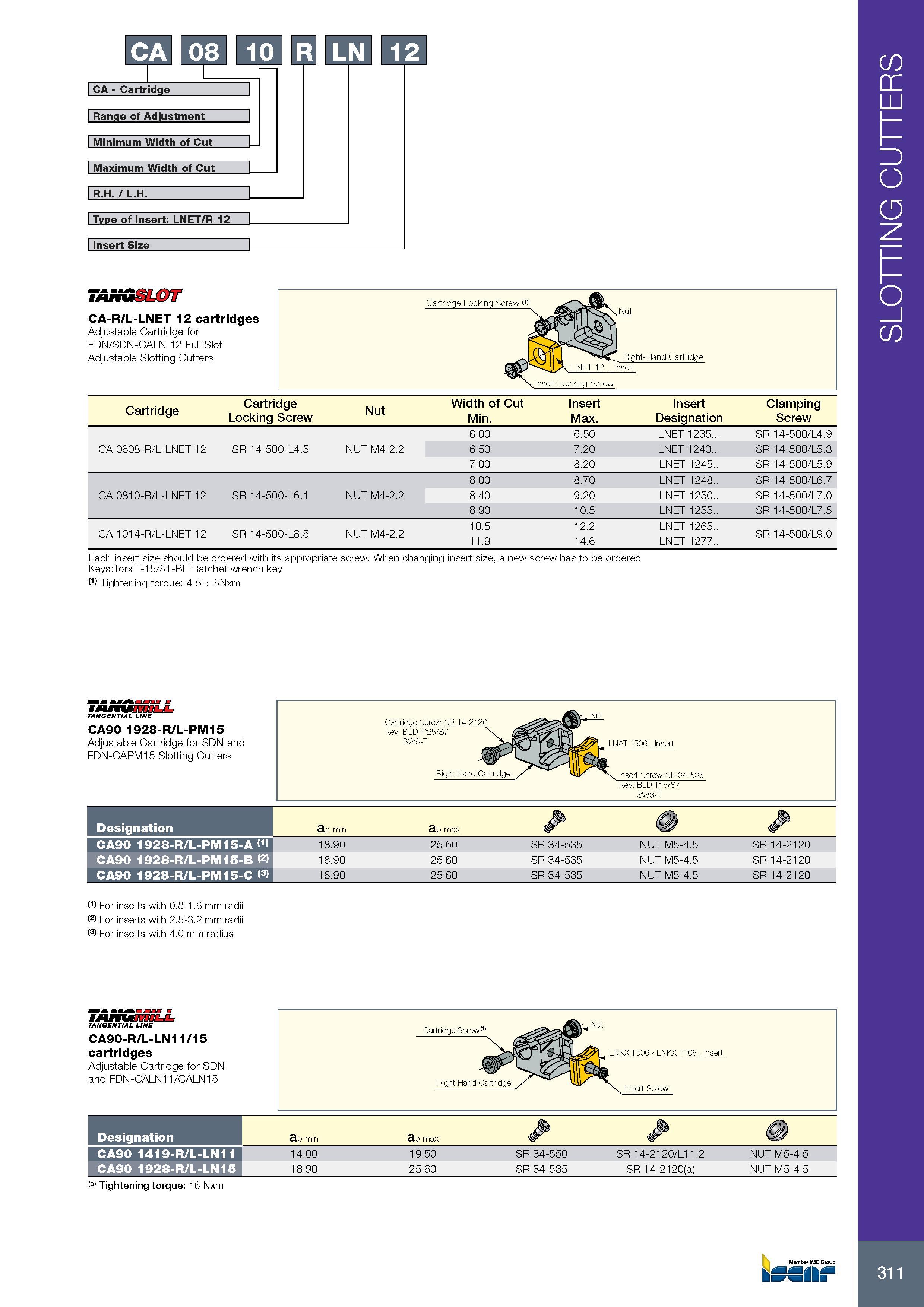

311 CA 08l 10 CA - Cartridge Range of Adjustment Minimum Width of Cut Maximum Width of Cut R.H. / L.H. Insert Size LNl 12 Type of Insert: LNET/R 12 TANommr CA-R/L-LNET 12 cartridges Adjustable Cartridge for FDN/SDN-CALN 12 Full Slot Adjustable Slotting Cutters Cartridge Cartridge Locking Screw Nut Width of Cut Min. Insert Max. Insert Обозначение Designation Clamping Screw 6.00 6.50 LNET 1235... SR 14-500/L4.9 CA 0608-R/L-LNET 12 SR 14-500-L4.5 NUT M4-2.2 6.50 7.20 LNET 1240... SR 14-500/L5.3 7.00 8.20 LNET 1245.. SR 14-500/L5.9 8.00 8.70 LNET 1248.. SR 14-500/L6.7 CA 0810-R/L-LNET 12 SR 14-500-L6.1 NUT M4-2.2 8.40 9.20 LNET 1250.. SR 14-500/L7.0 8.90 10.5 LNET 1255.. SR 14-500/L7.5 CA 1014-R/L-LNET 12 SR 14-500-L8.5 NUT M4-2.2 10.5 12.2 LNET 1265.. SR 14-500/L9.0 11.9 14.6 LNET 1277.. Each insert size should be ordered with its appropriate screw. When changing insert size, a new screw has to be ordered Keys:Torx T-15/51-BE Ratchet wrench key (1) Tightening torque: 4.5 r 5Nxm amoooo o MUWUtmKHh TANGENTIAL LINE CA90 1928-R/L-PM15 Adjustable Cartridge for SDN and FDN-CAPM15 Slotting Cutters Обозначение Designation CA90 1928-R/L-PM15-A (1) CA90 1928-R/L-PM15-B (2) CA90 1928-R/L-PM15-C (3) ap min ap max 0 18.90 25.60 SR 34-535 NUT M5-4.5 SR 14-2120 18.90 25.60 SR 34-535 NUT M5-4.5 SR 14-2120 18.90 25.60 SR 34-535 NUT M5-4.5 SR 14-2120 <1) For inserts with 0.8-1.6 mm radii <2) For inserts with 2.5-3.2 mm radii <3) For inserts with 4.0 mm radius TANGENTIAL LINE CA90-R/L-LN11/15 cartridges Adjustable Cartridge for SDN and FDN-CALN11/CALN15 Обозначение Designation ap min ap max CA90 1419-R/L-LN11 14.00 19.50 SR 34-550 SR 14-2120/L11.2 NUT M5-4.5 CA90 1928-R/L-LN15 18.90 25.60 SR 34-535 SR 14-2120(a) NUT M5-4.5 (a) Tightening torque: 16 Nxm SLOTTING CUTTERS
