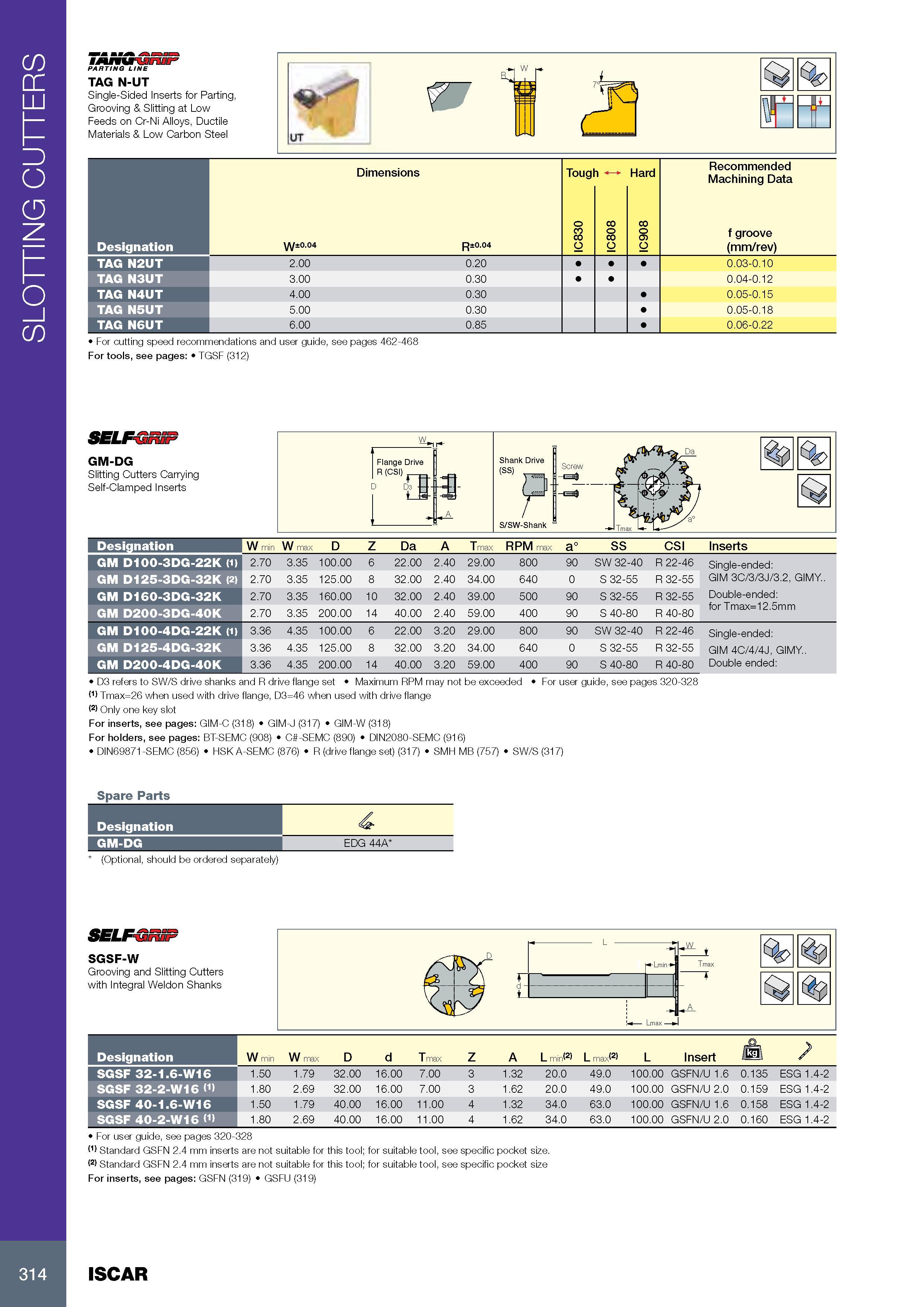

SLOTTING CUTTERS PARTING LINE TAG N-UT Single-Sided Inserts for Parting, Grooving & Slitting at Low Feeds on Cr-Ni Alloys, Ductile Materials & Low Carbon Steel For cutting speed recommendations and user guide, see pages 462-468 For tools, see pages: TGSF (312) n Размеры в мм Dimensions Tough Hard Режимы резания при металлообработке Recommended Machining Data Обозначение Designation W±0.04 R±0.04 IC830 IC808 IC908 f groove (mm/rev) TAG N2UT 2.00 0.20 0.03-0.10 TAG N3UT 3.00 0.30 0.04-0.12 TAG N4UT 4.00 0.30 0.05-0.15 TAG N5UT 5.00 0.30 0.05-0.18 TAG N6UT 6.00 0.85 0.06-0.22 W SELF-GRiP GM-DG Slitting Cutters Carrying Self-Clamped Inserts W min W max D Z Da A Tmax RPM max a° SS CSI Inserts GM D100-3DG-22K (1) 2.70 3.35 100.00 6 22.00 2.40 29.00 800 90 SW 32-40 R 22-46 Single-ended: GIM 3C/3/3J/3.2, GIMY.. Double-ended: for Tmax=12.5mm GM D125-3DG-32K (2) 2.70 3.35 125.00 8 32.00 2.40 34.00 640 0 S 32-55 R 32-55 GM D160-3DG-32K 2.70 3.35 160.00 10 32.00 2.40 39.00 500 90 S 32-55 R 32-55 GM D200-3DG-40K 2.70 3.35 200.00 14 40.00 2.40 59.00 400 90 S 40-80 R 40-80 GM D100-4DG-22K (1) 3.36 4.35 100.00 6 22.00 3.20 29.00 800 90 SW 32-40 R 22-46 Single-ended: GM D125-4DG-32K 3.36 4.35 125.00 8 32.00 3.20 34.00 640 0 S 32-55 R 32-55 GIM 4C/4/4J, GIMY.. GM D200-4DG-40K 3.36 4.35 200.00 14 40.00 3.20 59.00 400 90 S 40-80 R 40-80 Double ended: D3 refers to SW/S drive shanks and R drive flange set Maximum RPM may not be exceeded For user guide, see pages 320-328 Tmax=26 when used with drive flange, D3=46 when used with drive flange Only one key slot For inserts, see pages: GIM-C (318) GIM-J (317) GIM-W (318) For holders, see pages: BT-SEMC (908) C -SEMC (890) DIN2080-SEMC (916) DIN69871-SEMC (856) HSK A-SEMC (876) R (drive flange set) (317) SMH MB (757) SW/S (317) Spare Parts Обозначение Designation GM-DG EDG 44A (Optional, should be ordered separately) SGSF-W Grooving and Slitting Cutters with Integral Weldon Shanks Обозначение Designation W min W max D d T max Z A L min(2) L max(2) L Insert 7 SGSF 32-1.6-W16 1.50 1.79 32.00 16.00 7.00 3 1.32 20.0 49.0 100.00 GSFN/U 1.6 0.135 ESG 1.4-2 SGSF 32-2-W16 (1) 1.80 2.69 32.00 16.00 7.00 3 1.62 20.0 49.0 100.00 GSFN/U 2.0 0.159 ESG 1.4-2 SGSF 40-1.6-W16 1.50 1.79 40.00 16.00 11.00 4 1.32 34.0 63.0 100.00 GSFN/U 1.6 0.158 ESG 1.4-2 SGSF 40-2-W16 (1) 1.80 2.69 40.00 16.00 11.00 4 1.62 34.0 63.0 100.00 GSFN/U 2.0 0.160 ESG 1.4-2 For user guide, see pages 320-328 (1) Standard GSFN 2.4 mm inserts are not suitable for this tool; for suitable tool, see specific pocket size. (2) Standard GSFN 2.4 mm inserts are not suitable for this tool; for suitable tool, see specific pocket size For inserts, see pages: GSFN (319) GSFU (319) d 314 ISCAR
