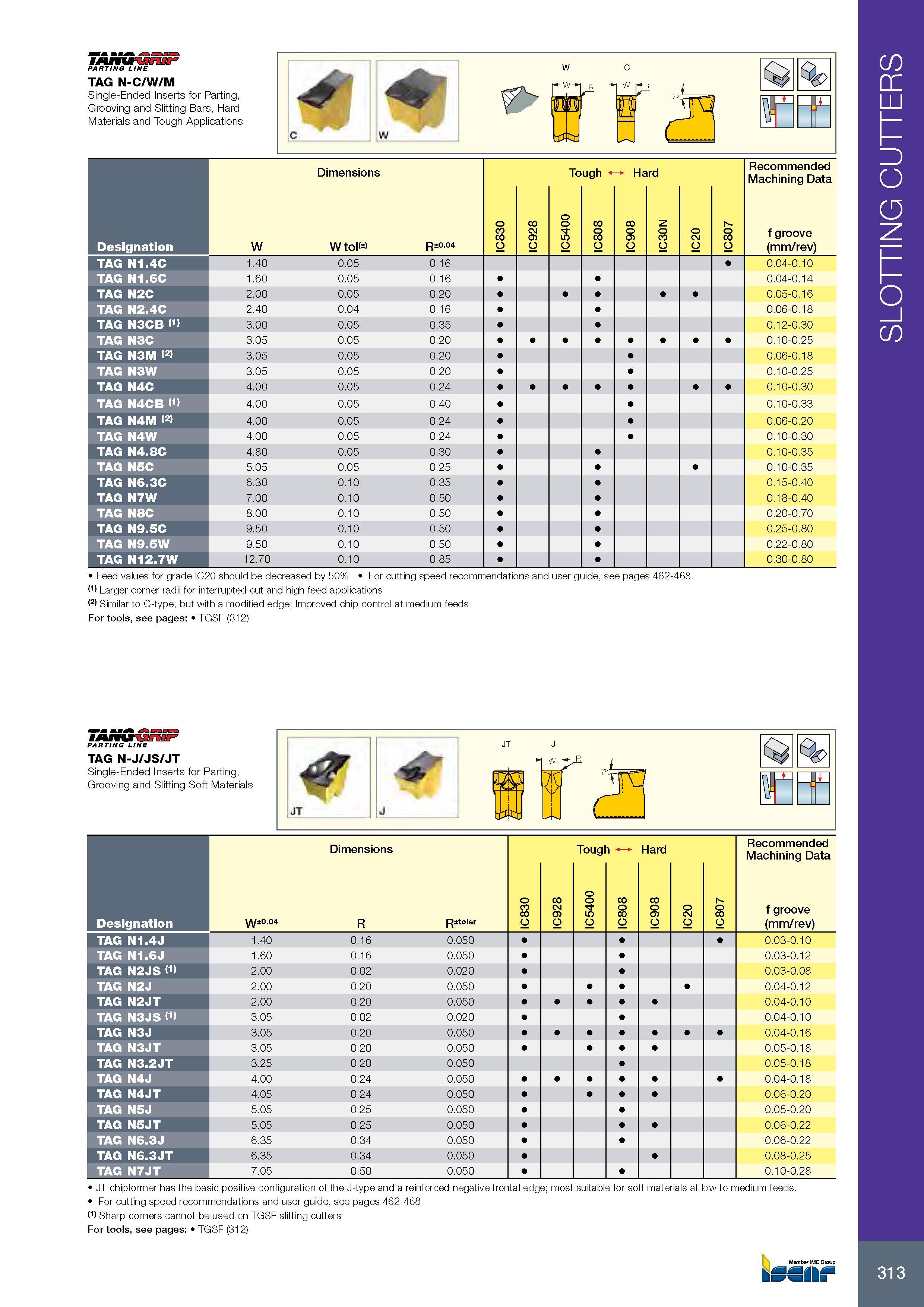

313 TANG alMxP PARTING LINE TAG N-C/W/M Single-Ended Inserts for Parting, Grooving and Slitting Bars, Hard Materials and Tough Applications Размеры в мм Dimensions Tough Hard Режимы резания при металлообработке Recommended Machining Data Обозначение Designation W W tol(±) R±0.04 o 3 8 IC co 2 05 IC o o m IC co 0 8 IC co 0 05 IC z 0 3 IC 0 2 IC 0 8 IC f groove (mm/rev) TAG N1.4C 1.40 0.05 0.16 0.04-0.10 TAG N1.6C 1.60 0.05 0.16 0.04-0.14 TAG N2C 2.00 0.05 0.20 0.05-0.16 TAG N2.4C 2.40 0.04 0.16 0.06-0.18 TAG N3CB I1 3.00 0.05 0.35 0.12-0.30 TAG N3C 3.05 0.05 0.20 0.10-0.25 TAG N3M 2> 3.05 0.05 0.20 0.06-0.18 TAG N3W 3.05 0.05 0.20 0.10-0.25 TAG N4C 4.00 0.05 0.24 0.10-0.30 TAG N4CB 11 4.00 0.05 0.40 0.10-0.33 TAG N4M 2> 4.00 0.05 0.24 0.06-0.20 TAG N4W 4.00 0.05 0.24 0.10-0.30 TAG N4.8C 4.80 0.05 0.30 0.10-0.35 TAG N5C 5.05 0.05 0.25 0.10-0.35 TAG N6.3C 6.30 0.10 0.35 0.15-0.40 TAG N7W 7.00 0.10 0.50 0.18-0.40 TAG N8C 8.00 0.10 0.50 0.20-0.70 TAG N9.5C 9.50 0.10 0.50 0.25-0.80 TAG N9.5W 9.50 0.10 0.50 0.22-0.80 TAG N12.7W 12.70 0.10 0.85 0.30-0.80 Feed values for grade IC20 should be decreased by 50% For cutting speed recommendations and user guide, see pages 462-468 (1) Larger corner radii for interrupted cut and high feed applications Similar to C-type, but with a modified edge; Improved chip control at medium feeds For tools, see pages: TGSF (312) PARTING LINE TAG N-J/JS/JT Single-Ended Inserts for Parting, Grooving and Slitting Soft Materials Размеры в мм Dimensions Tough Hard Режимы резания при металлообработке Recommended Machining Data Обозначение Designation W±0.04 R R±toler 3 8 IC 2 IC IC 0 8 IC 0 IC 0 2 IC 0 8 IC f groove (mm/rev) TAG N1.4J 1.40 0.16 0.050 0.03-0.10 TAG N1.6J 1.60 0.16 0.050 0.03-0.12 TAG N2JS 1> 2.00 0.02 0.020 0.03-0.08 TAG N2J 2.00 0.20 0.050 0.04-0.12 TAG N2JT 2.00 0.20 0.050 0.04-0.10 TAG N3JS 11 3.05 0.02 0.020 0.04-0.10 TAG N3J 3.05 0.20 0.050 0.04-0.16 TAG N3JT 3.05 0.20 0.050 0.05-0.18 TAG N3.2JT 3.25 0.20 0.050 0.05-0.18 TAG N4J 4.00 0.24 0.050 0.04-0.18 TAG N4JT 4.05 0.24 0.050 0.06-0.20 TAG N5J 5.05 0.25 0.050 0.05-0.20 TAG N5JT 5.05 0.25 0.050 0.06-0.22 TAG N6.3J 6.35 0.34 0.050 0.06-0.22 TAG N6.3JT 6.35 0.34 0.050 0.08-0.25 TAG N7JT 7.05 0.50 0.050 0.10-0.28 JT chipformer has the basic positive configuration of the J-type and a reinforced negative frontal edge; most suitable for soft materials at low to medium feeds. For cutting speed recommendations and user guide, see pages 462-468 (1) Sharp corners cannot be used on TGSF slitting cutters For tools, see pages: TGSF (312) SLOTTING CUTTERS
