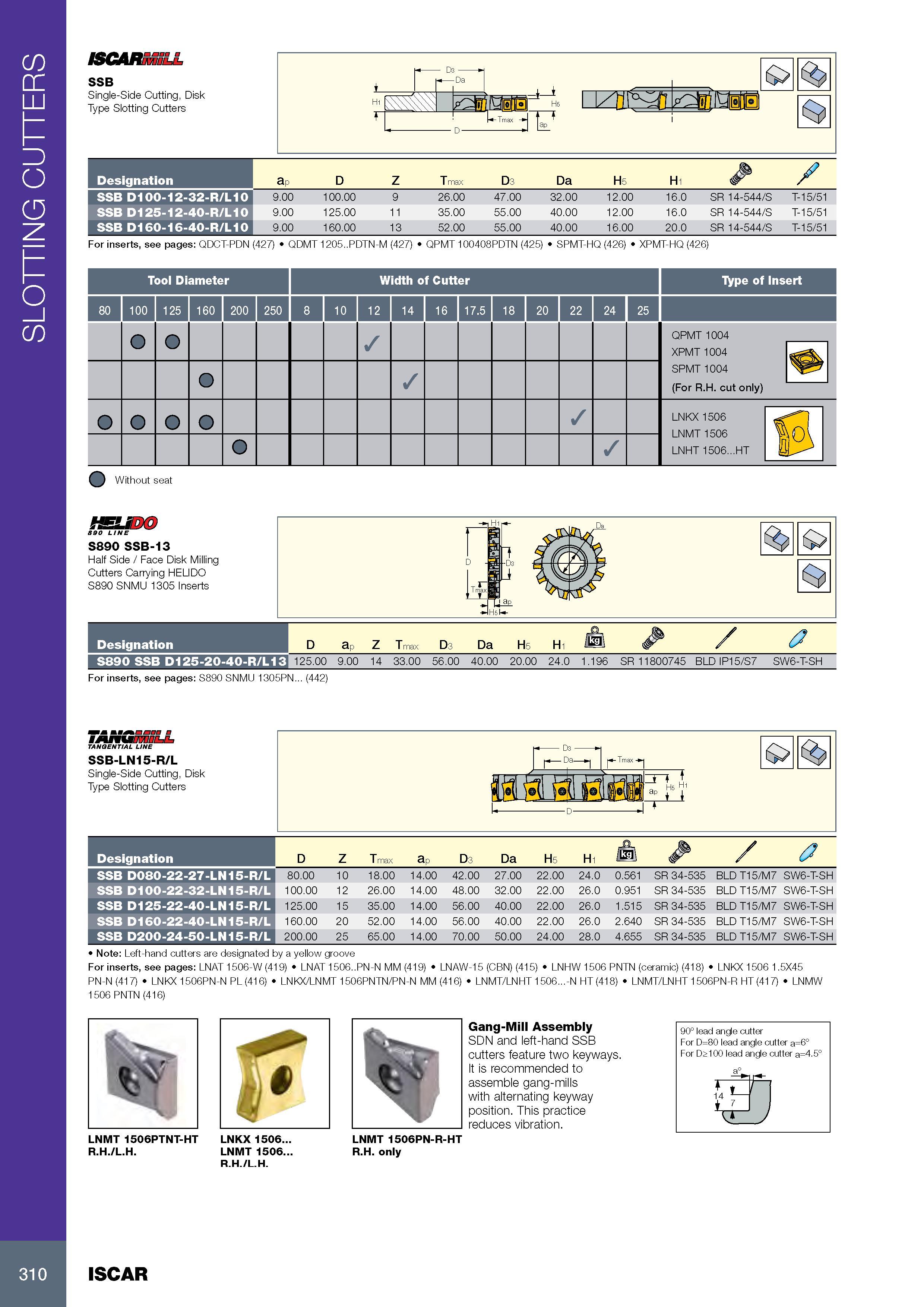

SLOTTING CUTTERS ISCARMiLL SSB Single-Side Cutting, Disk Type Slotting Cutters , r - D 1 Da 1 i r Hi pC ni MR H5 L t U-Tmax - D t t I ap Обозначение Designation ap D Z T max D3 Da H5 H1 z7 SSB D100-12-32-R/L10 9.00 100.00 9 26.00 47.00 32.00 12.00 16.0 SR 14-544/S T-15/51 SSB D125-12-40-R/L10 9.00 125.00 11 35.00 55.00 40.00 12.00 16.0 SR 14-544/S T-15/51 SSB D160-16-40-R/L10 9.00 160.00 13 52.00 55.00 40.00 16.00 20.0 SR 14-544/S T-15/51 For inserts, see pages: QDCT-PDN (427) QDMT 1205..PDTN-M (427) QPMT 100408PDTN (425) SPMT-HQ (426) XPMT-HQ (426) Tool Diameter Width of Cutter 80 100 125 160 200 250 8 10 12 14 16 17.5 18 20 22 24 25 O o / o / o o o O / O / Type of Insert QPMT 1004 XPMT 1004 SPMT 1004 (For R.H. cut only) LNKX 1506 LNMT 1506 LNHT 1506...HT Without seat 890 LINE S890 SSB-13 Half Side / Face Disk Milling Cutters Carrying HELIDO S890 SNMU 1305 Inserts Обозначение Designation D aP Z T max D3 Da H5 H1 (8) ra / S890 SSB D125-20-40-R/L13 125.00 9.00 14 33.00 56.00 40.00 20.00 24.0 1.196 SR 11800745 BLD IP15/S7 SW6-T-SH For inserts, see pages: S890 SNMU 1305PN... (442) SSB-LN15-R/L Single-Side Cutting, Disk Type Slotting Cutters Обозначение Designation D Z T max aP D3 Da H5 H1 5 / SSB D080-22-27-LN15-R/L 80.00 10 18.00 14.00 42.00 27.00 22.00 24.0 0.561 SR 34-535 BLD T15/M7 SW6-T-SH SSB D100-22-32-LN15-R/L 100.00 12 26.00 14.00 48.00 32.00 22.00 26.0 0.951 SR 34-535 BLD T15/M7 SW6-T-SH SSB D125-22-40-LN15-R/L 125.00 15 35.00 14.00 56.00 40.00 22.00 26.0 1.515 SR 34-535 BLD T15/M7 SW6-T-SH SSB D160-22-40-LN15-R/L 160.00 20 52.00 14.00 56.00 40.00 22.00 26.0 2.640 SR 34-535 BLD T15/M7 SW6-T-SH SSB D200-24-50-LN15-R/L 200.00 25 65.00 14.00 70.00 50.00 24.00 28.0 4.655 SR 34-535 BLD T15/M7 SW6-T-SH Note: Left-hand cutters are designated by a yellow groove For inserts, see pages: LNAT 1506-W (419) LNAT 1506..PN-N MM (419) LNAW-15 (CBN) (415) LNHW 1506 PNTN (ceramic) (418) LNKX 1506 1.5X45 PN-N (417) LNKX 1506PN-N PL (416) LNKX/LNMT 1506PNTN/PN-N MM (416) LNMT/LNHT 1506...-N HT (418) LNMT/LNHT 1506PN-R HT (417) LNMW 1506 PNTN (416) LNMT 1506PTNT-HT R.H./L.H. LNKX 1506... LNMT 1506... R.H./L.H. Gang-Mill Assembly SDN and left-hand SSB cutters feature two keyways. It is recommended to assemble gang-mills with alternating keyway position. This practice reduces vibration. LNMT 1506PN-R-HT R.H. only 90° lead angle cu For D=80 lead an For D>100 lead a a° tter gle cutter a=6° ngle cutter a=4.5° A 14 1 i 7 < te: 310 ISCAR
