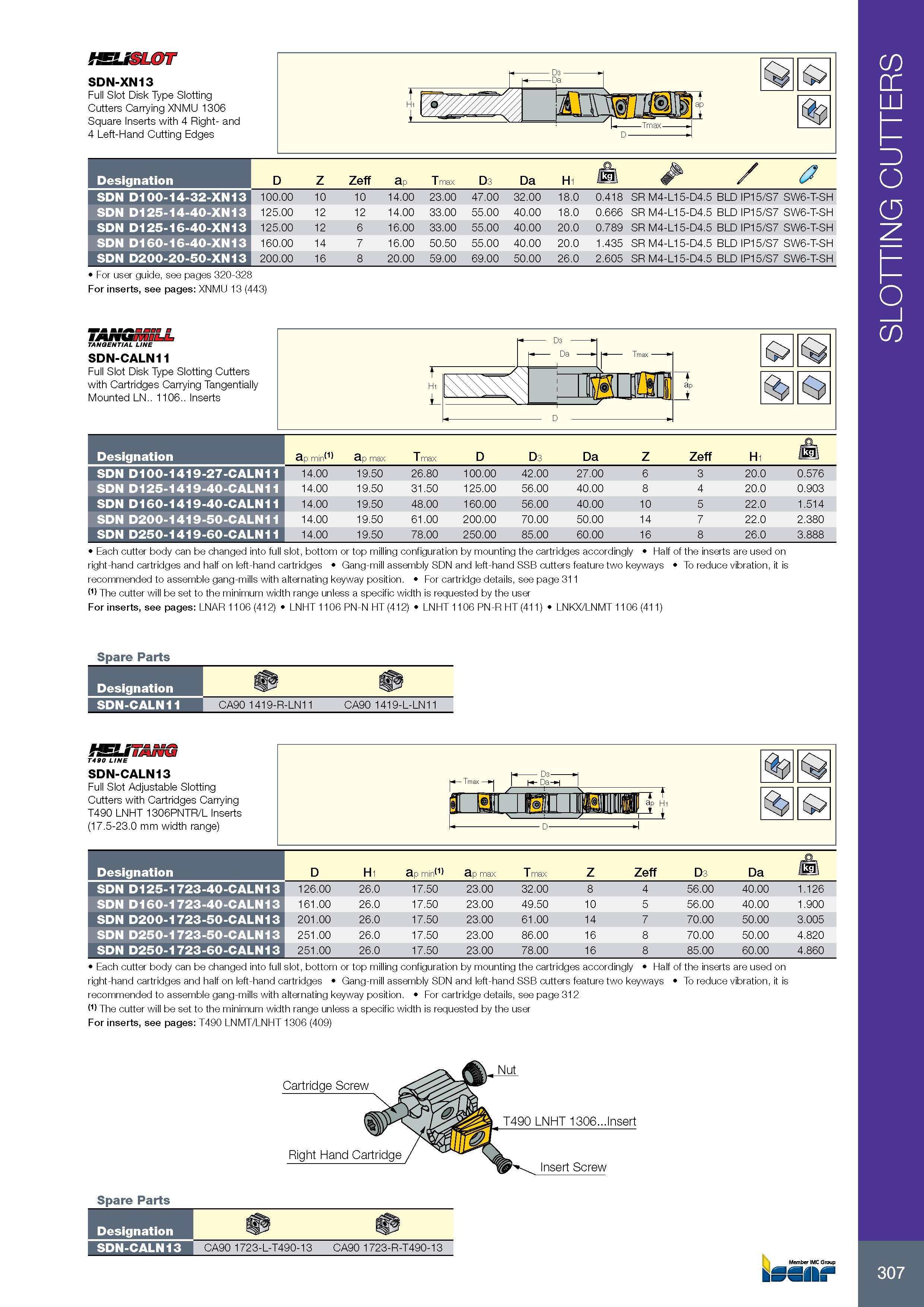

311 Каталог ISCAR 2017 Вращающийся режущий инструмент и инструментальная оснастка Стр.307

Каталог ISCAR 2017 Ротационный инструмент Стр. 307 0311 ENG Lab2u

fSUSLOT SDN-XN13 Full Slot Disk Type Slotting Cutters Carrying XNMU 1306 Square Inserts with 4 Right- and 4 Left-Hand Cutting Edges D Z Zeff ap T max D3 Da H1 X 0 100.00 10 10 14.00 23.00 47.00 32.00 18.0 0.418 SR M4-L15-D4.5 BLD IP15/S7 SW6-T-SH 125.00 12 12 14.00 33.00 55.00 40.00 18.0 0.666 SR M4-L15-D4.5 BLD IP15/S7 SW6-T-SH 125.00 12 6 16.00 33.00 55.00 40.00 20.0 0.789 SR M4-L15-D4.5 BLD IP15/S7 SW6-T-SH 160.00 14 7 16.00 50.50 55.00 40.00 20.0 1.435 SR M4-L15-D4.5 BLD IP15/S7 SW6-T-SH 200.00 16 8 20.00 59.00 69.00 50.00 26.0 2.605 SR M4-L15-D4.5 BLD IP15/S7 SW6-T-SH For user guide, see pages 320-328 For inserts, see pages: XNMU 13 (443) Обозначение Designation SDN D100-14-32-XN13 SDN D125-14-40-XN13 SDN D125-16-40-XN13 SDN D160-16-40-XN13 SDN D200-20-50-XN13 jtnogg a f/UVUVVHIUi TANGENTIAL LINE SDN-CALN11 Full Slot Disk Type Slotting Cutters with Cartridges Carrying Tangentially Mounted LN.. 1106.. Inserts Обозначение Designation ap min<1) ap max Tmax D D3 Da Z Zeff H1 SDN D100-1419-27-CALN11 14.00 19.50 26.80 100.00 42.00 27.00 6 3 20.0 0.576 SDN D125-1419-40-CALN11 14.00 19.50 31.50 125.00 56.00 40.00 8 4 20.0 0.903 SDN D160-1419-40-CALN11 14.00 19.50 48.00 160.00 56.00 40.00 10 5 22.0 1.514 SDN D200-1419-50-CALN11 14.00 19.50 61.00 200.00 70.00 50.00 14 7 22.0 2.380 SDN D250-1419-60-CALN11 14.00 19.50 78.00 250.00 85.00 60.00 16 8 26.0 3.888 Each cutter body can be changed into full slot, bottom or top milling configuration by mounting the cartridges accordingly Half of the inserts are used on right-hand cartridges and half on left-hand cartridges Gang-mill assembly SDN and left-hand SSB cutters feature two keyways To reduce vibration, it is recommended to assemble gang-mills with alternating keyway position. For cartridge details, see page 311 <1) The cutter will be set to the minimum width range unless a specific width is requested by the user For inserts, see pages: LNAR 1106 (412) LNHT 1106 PN-N HT (412) LNHT 1106 PN-R HT (411) LNKX/LNMT 1106 (411) Spare Parts Обозначение Designation fl SDN-CALN11 CA90 1419-R-LN11 CA90 1419-L-LN11 fSLiTANG T490 LINE SDN-CALN13 Full Slot Adjustable Slotting Cutters with Cartridges Carrying T490 LNHT 1306PNTR/L Inserts (17.5-23.0 mm width range) D H1 ap min<1) ap max Tmax Z Zeff D3 126.00 26.0 17.50 23.00 32.00 8 4 56.00 40.00 1.126 161.00 26.0 17.50 23.00 49.50 10 5 56.00 40.00 1.900 201.00 26.0 17.50 23.00 61.00 14 7 70.00 50.00 3.005 251.00 26.0 17.50 23.00 86.00 16 8 70.00 50.00 4.820 251.00 26.0 17.50 23.00 78.00 16 8 85.00 60.00 4.860 Each cutter body can be changed into full slot, bottom or top milling configuration by mounting the cartridges accordingly Half of the inserts are used on right-hand cartridges and half on left-hand cartridges Gang-mill assembly SDN and left-hand SSB cutters feature two keyways To reduce vibration, it is recommended to assemble gang-mills with alternating keyway position. For cartridge details, see page 312 <1) The cutter will be set to the minimum width range unless a specific width is requested by the user For inserts, see pages: T490 LNMT/LNHT 1306 (409) Обозначение Designation SDN D125-1723-40-CALN13 SDN D160-1723-40-CALN13 SDN D200-1723-50-CALN13 SDN D250-1723-50-CALN13 SDN D250-1723-60-CALN13 307 Spare Parts Обозначение Designation SDN-CALN13 CA90 1723-L-T490-13 CA90 1723-R-T490-13 Member IMC Group kSSlIf SLOTTING CUTTERS
