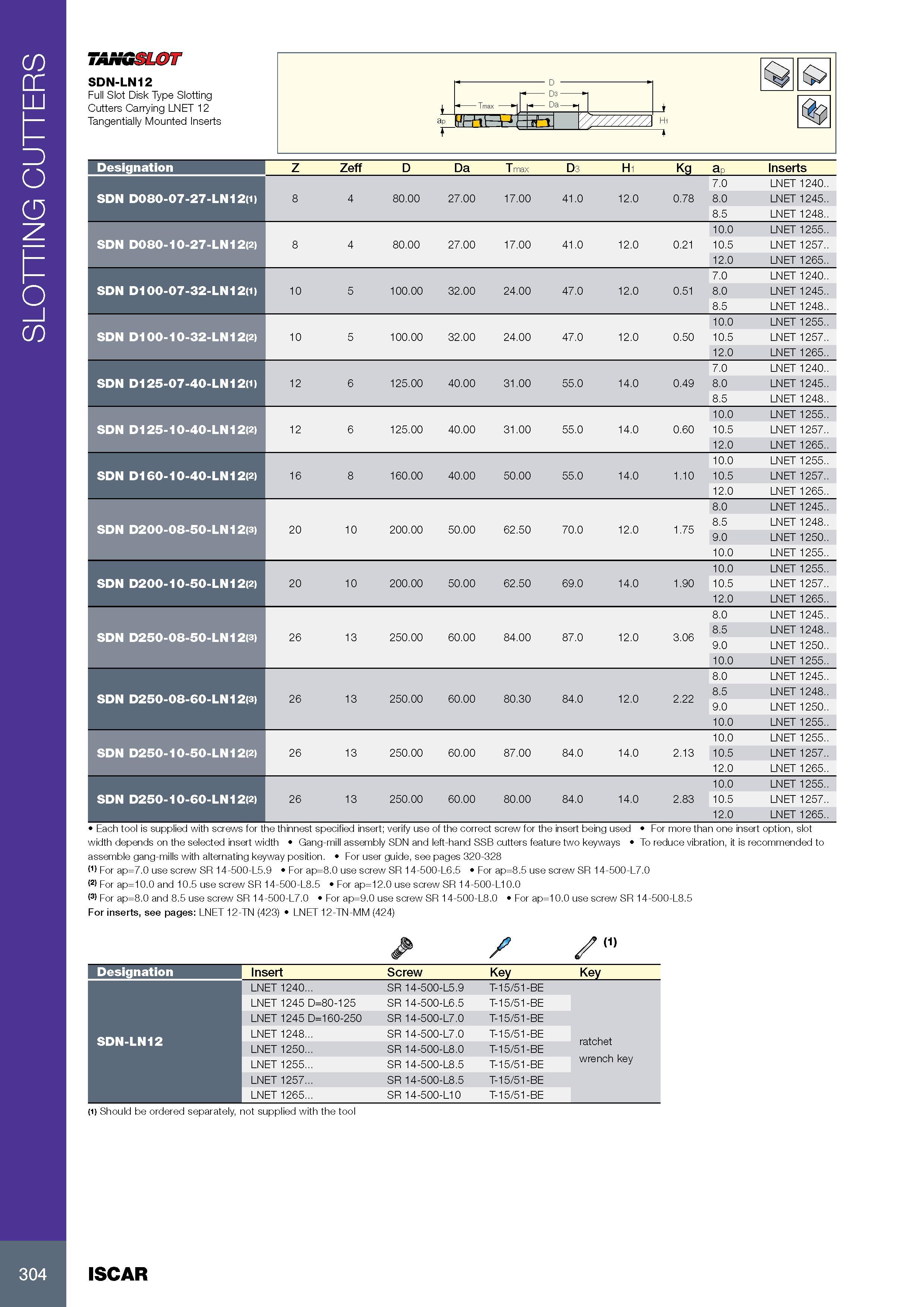

SLOTTING CUTTERS TANGSLOT SDN-LN12 Full Slot Disk Type Slotting Cutters Carrying LNET 12 Tangentially Mounted Inserts Обозначение Designation Z Zeff D Da T max D3 H1 Kg ap Inserts 7.0 LNET 1240.. SDN D080-07-27-LN12(1) 8 4 80.00 27.00 17.00 41.0 12.0 0.78 8.0 LNET 1245.. 8.5 LNET 1248.. 10.0 LNET 1255.. SDN D080-10-27-LN12(2) 8 4 80.00 27.00 17.00 41.0 12.0 0.21 10.5 LNET 1257.. 12.0 LNET 1265.. 7.0 LNET 1240.. SDN D100-07-32-LN12(1) 10 5 100.00 32.00 24.00 47.0 12.0 0.51 8.0 LNET 1245.. 8.5 LNET 1248.. 10.0 LNET 1255.. SDN D100-10-32-LN12(2) 10 5 100.00 32.00 24.00 47.0 12.0 0.50 10.5 LNET 1257.. 12.0 LNET 1265.. 7.0 LNET 1240.. SDN D125-07-40-LN12(1) 12 6 125.00 40.00 31.00 55.0 14.0 0.49 8.0 LNET 1245.. 8.5 LNET 1248.. 10.0 LNET 1255.. SDN D125-10-40-LN12(2) 12 6 125.00 40.00 31.00 55.0 14.0 0.60 10.5 LNET 1257.. 12.0 LNET 1265.. 10.0 LNET 1255.. SDN D160-10-40-LN12(2) 16 8 160.00 40.00 50.00 55.0 14.0 1.10 10.5 LNET 1257.. 12.0 LNET 1265.. 8.0 LNET 1245.. SDN D200-08-50-LN12(3) 20 10 200.00 50.00 62.50 70.0 12.0 1.75 8.5 LNET 1248.. 9.0 LNET 1250.. 10.0 LNET 1255.. 10.0 LNET 1255.. SDN D200-10-50-LN12(2) 20 10 200.00 50.00 62.50 69.0 14.0 1.90 10.5 LNET 1257.. 12.0 LNET 1265.. 8.0 LNET 1245.. SDN D250-08-50-LN12(3) 26 13 250.00 60.00 84.00 87.0 12.0 3.06 8.5 LNET 1248.. 9.0 LNET 1250.. 10.0 LNET 1255.. 8.0 LNET 1245.. SDN D250-08-60-LN12(3) 26 13 250.00 60.00 80.30 84.0 12.0 2.22 8.5 LNET 1248.. 9.0 LNET 1250.. 10.0 LNET 1255.. 10.0 LNET 1255.. SDN D250-10-50-LN12(2) 26 13 250.00 60.00 87.00 84.0 14.0 2.13 10.5 LNET 1257.. 12.0 LNET 1265.. 10.0 LNET 1255.. SDN D250-10-60-LN12(2) 26 13 250.00 60.00 80.00 84.0 14.0 2.83 10.5 LNET 1257.. 12.0 LNET 1265.. Each tool is supplied with screws for the thinnest specified insert; verify use of the correct screw for the insert being used For more than one insert option, slot width depends on the selected insert width Gang-mill assembly SDN and left-hand SSB cutters feature two keyways To reduce vibration, it is recommended to assemble gang-mills with alternating keyway position. For user guide, see pages 320-328 <1) For ap=7.0 use screw SR 14-500-L5.9 For ap=8.0 use screw SR 14-500-L6.5 For ap=8.5 use screw SR 14-500-L7.0 <2) For ap=10.0 and 10.5 use screw SR 14-500-L8.5 For ap=12.0 use screw SR 14-500-L10.0 <3) For ap=8.0 and 8.5 use screw SR 14-500-L7.0 For ap=9.0 use screw SR 14-500-L8.0 For ap=10.0 use screw SR 14-500-L8.5 For inserts, see pages: LNET 12-TN (423) LNET 12-TN-MM (424) & / /(1) Обозначение Designation Insert Screw Key Key LNET 1240... SR 14-500-L5.9 T-15/51-BE LNET 1245 D=80-125 SR 14-500-L6.5 T-15/51-BE LNET 1245 D=160-250 SR 14-500-L7.0 T-15/51-BE SDN-LN12 LNET 1248... SR 14-500-L7.0 T-15/51-BE ratchet wrench key LNET 1250... SR 14-500-L8.0 T-15/51-BE LNET 1255... SR 14-500-L8.5 T-15/51-BE LNET 1257... SR 14-500-L8.5 T-15/51-BE LNET 1265... SR 14-500-L10 T-15/51-BE (1) Should be ordered separately, not supplied with the tool 304 ISCAR
