309 Каталог ISCAR 2017 Вращающийся режущий инструмент и инструментальная оснастка Стр.305

Каталог ISCAR 2017 Ротационный инструмент Стр. 305 0309 ENG Lab2u

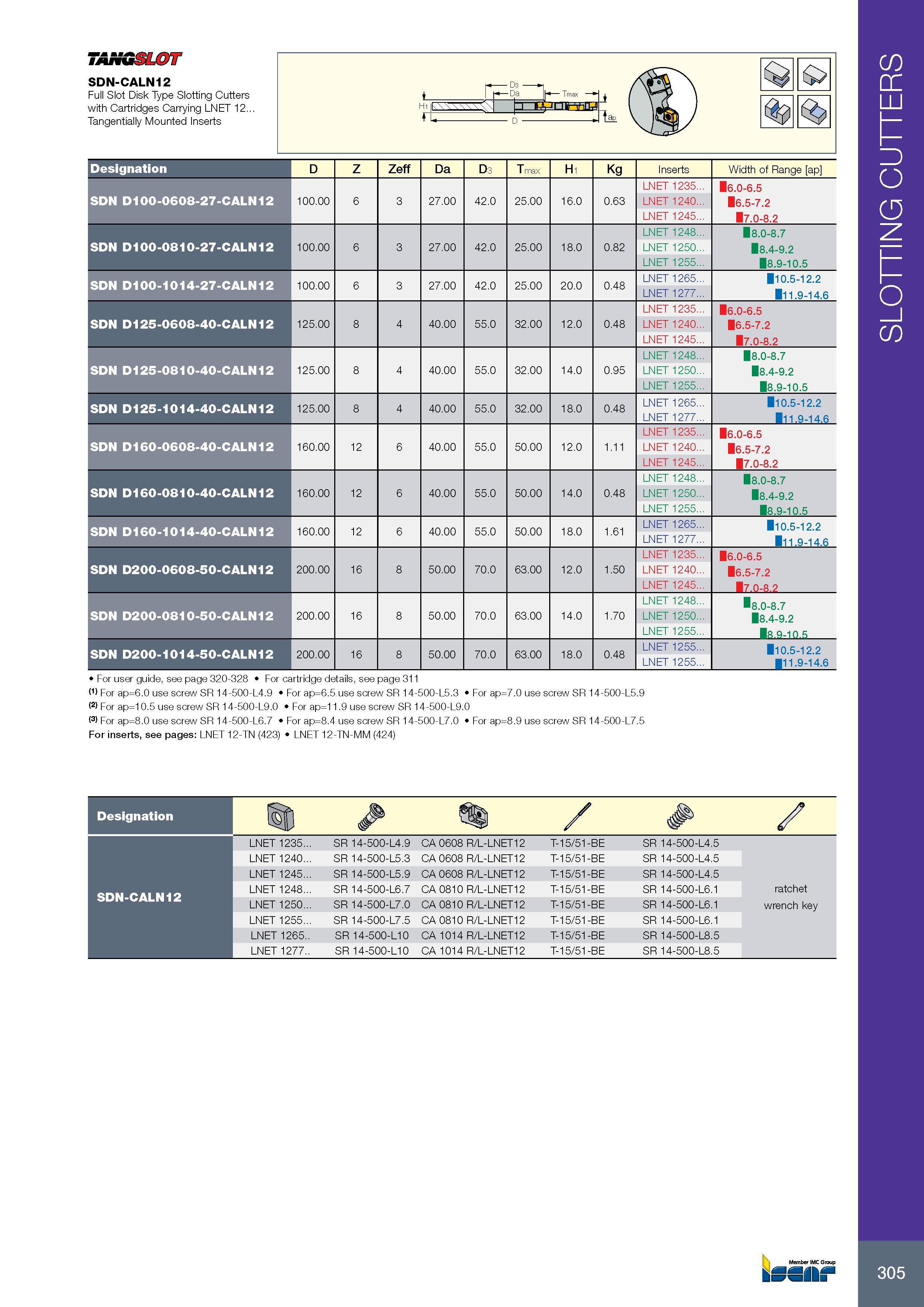

TANGSLOT SDN-CALN12 Full Slot Disk Type Slotting Cutters with Cartridges Carrying LNET 12... Tangentially Mounted Inserts Hi f D a h" Tmax H i i cpi-m-wra -< J Обозначение Designation D Z Zeff Da D3 T max H1 Kg Inserts Width of Range ap SDN D100-0608-27-CALN12 100.00 6 3 27.00 42.0 25.00 16.0 0.63 LNET 1235. LNET 1240. LNET 1245. 16.0-6.5 16.5-7.2 7.0-8.2 SDN D100-0810-27-CALN12 100.00 6 3 27.00 42.0 25.00 18.0 0.82 LNET 1248. LNET 1250. LNET 1255. 8.0-8.7 18.4-9.2 8.9-10.5 SDN D100-1014-27-CALN12 100.00 6 3 27.00 42.0 25.00 20.0 0.48 LNET 1265. LNET 1277. 10.5-12.2 11.9-14.6 SDN D125-0608-40-CALN12 125.00 8 4 40.00 55.0 32.00 12.0 0.48 LNET 1235. LNET 1240. LNET 1245. 16.0-6.5 B6.5-7.2 7.0-8.2 SDN D125-0810-40-CALN12 125.00 8 4 40.00 55.0 32.00 14.0 0.95 LNET 1248. LNET 1250. LNET 1255. 8.0-8.7 18.4-9.2 8.9-10.5 SDN D125-1014-40-CALN12 125.00 8 4 40.00 55.0 32.00 18.0 0.48 LNET 1265. LNET 1277. 10.5-12.2 11.9-14.6 SDN D160-0608-40-CALN12 160.00 12 6 40.00 55.0 50.00 12.0 1.11 LNET 1235. LNET 1240. LNET 1245. 16.0-6.5 6.5-7.2 7.0-8.2 SDN D160-0810-40-CALN12 160.00 12 6 40.00 55.0 50.00 14.0 0.48 LNET 1248. LNET 1250. LNET 1255. 8.0-8.7 18.4-9.2 8.9-10.5 SDN D160-1014-40-CALN12 160.00 12 6 40.00 55.0 50.00 18.0 1.61 LNET 1265.. LNET 1277.. 10.5-12.2 11.9-14.6 SDN D200-0608-50-CALN12 200.00 16 8 50.00 70.0 63.00 12.0 1.50 LNET 1235.. LNET 1240.. LNET 1245.. 16.0-6.5 6.5-7.2 7.0-8.2 SDN D200-0810-50-CALN12 200.00 16 8 50.00 70.0 63.00 14.0 1.70 LNET 1248.. LNET 1250.. LNET 1255.. 8.0-8.7 18.4-9.2 8.9-10.5 SDN D200-1014-50-CALN12 200.00 16 8 50.00 70.0 63.00 18.0 0.48 LNET 1255.. LNET 1255.. 10.5-12.2 11.9-14.6 For user guide, see page 320-328 For cartridge details, see page 311 (1) For ap=6.0 use screw SR 14-500-L4.9 For ap=6.5 use screw SR 14-500-L5.3 For ap=7.0 use screw SR 14-500-L5.9 (2) For ap=10.5 use screw SR 14-500-L9.0 For ap=11.9 use screw SR 14-500-L9.0 For ap=8.0 use screw SR 14-500-L6.7 For ap=8.4 use screw SR 14-500-L7.0 For ap=8.9 use screw SR 14-500-L7.5 For inserts, see pages: LNET 12-TN (423) LNET 12-TN-MM (424) Обозначение Designation LNET 1235... SR 14-500-L4.9 CA 0608 R/L-LNET12 T-15/51-BE SR 14-500-L4.5 LNET 1240... SR 14-500-L5.3 CA 0608 R/L-LNET12 T-15/51-BE SR 14-500-L4.5 LNET 1245... SR 14-500-L5.9 CA 0608 R/L-LNET12 T-15/51-BE SR 14-500-L4.5 LNET 1248... SR 14-500-L6.7 CA 0810 R/L-LNET12 T-15/51-BE SR 14-500-L6.1 ratchet LNET 1250... SR 14-500-L7.0 CA 0810 R/L-LNET12 T-15/51-BE SR 14-500-L6.1 wrench key LNET 1255... SR 14-500-L7.5 CA 0810 R/L-LNET12 T-15/51-BE SR 14-500-L6.1 LNET 1265.. SR 14-500-L10 CA 1014 R/L-LNET12 T-15/51-BE SR 14-500-L8.5 LNET 1277.. SR 14-500-L10 CA 1014 R/L-LNET12 T-15/51-BE SR 14-500-L8.5 305 SLOTTING CUTTERS
