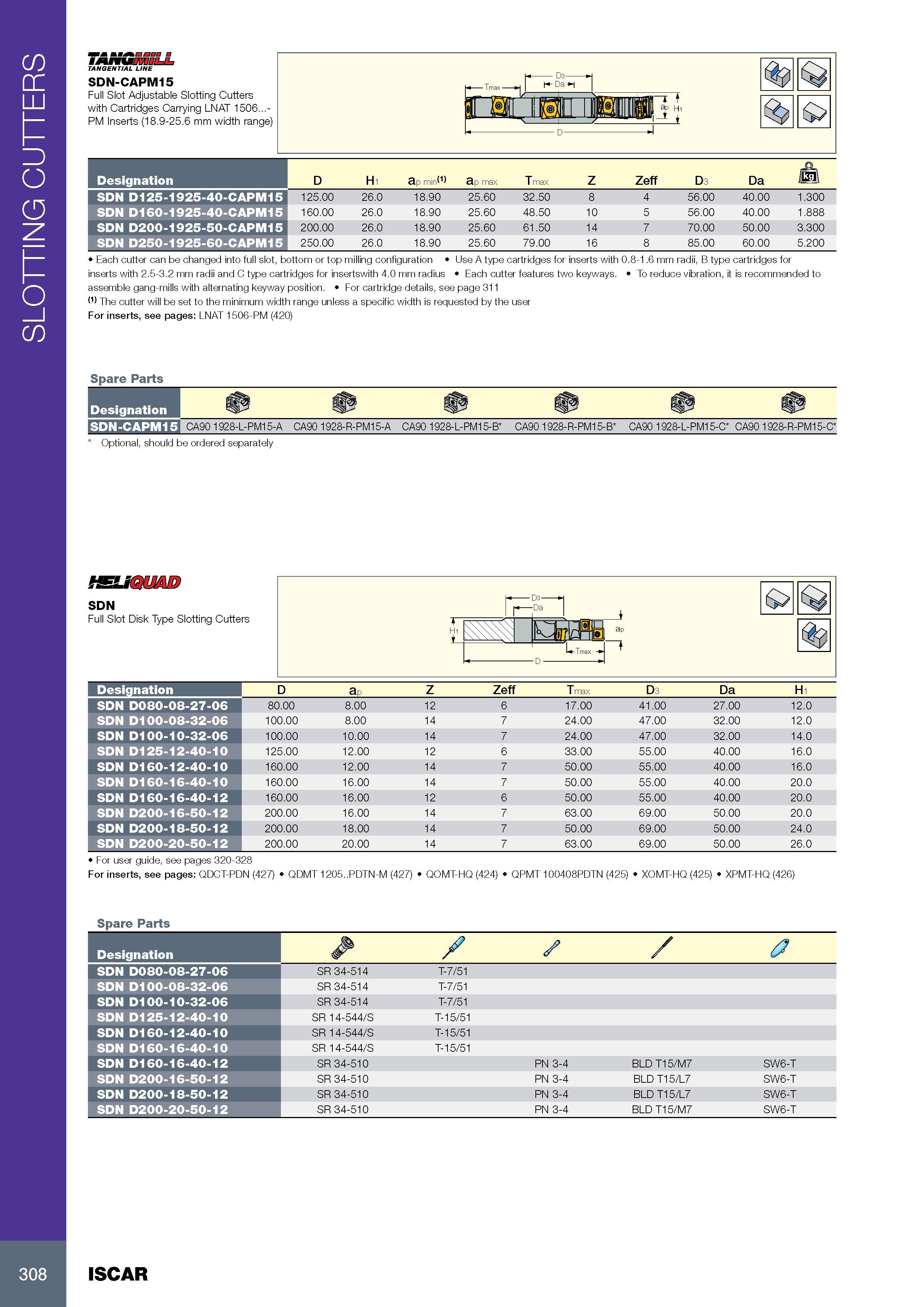

SLOTTING CUTTERS TANGENTIAL LINE SDN-CAPM15 Full Slot Adjustable Slotting Cutters with Cartridges Carrying LNAT 1506...-PM inserts (18.9-25.6 mm width range) Обозначение Designation D H1 ap minI1) ap max Tmax Z Zeff D3 Da /kaft SDN D125-1925-40-CAPM15 125.00 26.0 18.90 25.60 32.50 8 4 56.00 40.00 1.300 SDN D160-1925-40-CAPM15 160.00 26.0 18.90 25.60 48.50 10 5 56.00 40.00 1.888 SDN D200-1925-50-CAPM15 200.00 26.0 18.90 25.60 61.50 14 7 70.00 50.00 3.300 SDN D250-1925-60-CAPM15 250.00 26.0 18.90 25.60 79.00 16 8 85.00 60.00 5.200 Each cutter can be changed into full slot, bottom or top milling configuration Use A type cartridges for inserts with 0.8-1.6 mm radii, B type cartridges for inserts with 2.5-3.2 mm radii and C type cartridges for insertswith 4.0 mm radius Each cutter features two keyways. To reduce vibration, it is recommended to assemble gang-mills with alternating keyway position. For cartridge details, see page 311 I1) The cutter will be set to the minimum width range unless a specific width is requested by the user For inserts, see pages: LNAT 1506-PM (420) Spare Parts Обозначение Designation m m SDN-CAPM15 CA90 1 928-L-PM15-A CA90 1928-R-PM15-A CA90 1928-L-PM15-B CA90 1928-R-PM15-B CA90 1 928-L-PM15-C CA90 1 928-R-PM15-C Optional, should be ordered separately HELIQUAD SDN Full Slot Disk Type Slotting Cutters D ap Z Zeff Tmax D3 Da H1 SDN D080-08-27-06 80.00 8.00 12 6 17.00 41.00 27.00 12.0 SDN D100-08-32-06 100.00 8.00 14 7 24.00 47.00 32.00 12.0 SDN D100-10-32-06 100.00 10.00 14 7 24.00 47.00 32.00 14.0 SDN D125-12-40-10 125.00 12.00 12 6 33.00 55.00 40.00 16.0 SDN D160-12-40-10 160.00 12.00 14 7 50.00 55.00 40.00 16.0 SDN D160-16-40-10 160.00 16.00 14 7 50.00 55.00 40.00 20.0 SDN D160-16-40-12 160.00 16.00 12 6 50.00 55.00 40.00 20.0 SDN D200-16-50-12 200.00 16.00 14 7 63.00 69.00 50.00 20.0 SDN D200-18-50-12 200.00 18.00 14 7 50.00 69.00 50.00 24.0 SDN D200-20-50-12 200.00 20.00 14 7 63.00 69.00 50.00 26.0 For user guide, see pages 320-328 For inserts, see pages: QDCT-PDN (427) QDMT 1205..PDTN-M (427) QOMT-HQ (424) QPMT 100408PDTN (425) XOMT-HQ (425) XPMT-HQ (426) Spare Parts Обозначение Designation 0 SDN D080-08-27-06 SR 34-514 T-7/51 SDN D100-08-32-06 SR 34-514 T-7/51 SDN D100-10-32-06 SR 34-514 T-7/51 SDN D125-12-40-10 SR 14-544/S T-15/51 SDN D160-12-40-10 SR 14-544/S T-15/51 SDN D160-16-40-10 SR 14-544/S T-15/51 SDN D160-16-40-12 SR 34-510 PN 3-4 BLD T15/M7 SW6-T SDN D200-16-50-12 SR 34-510 PN 3-4 BLD T15/L7 SW6-T SDN D200-18-50-12 SR 34-510 PN 3-4 BLD T15/L7 SW6-T SDN D200-20-50-12 SR 34-510 PN 3-4 BLD T15/M7 SW6-T 308 ISCAR
