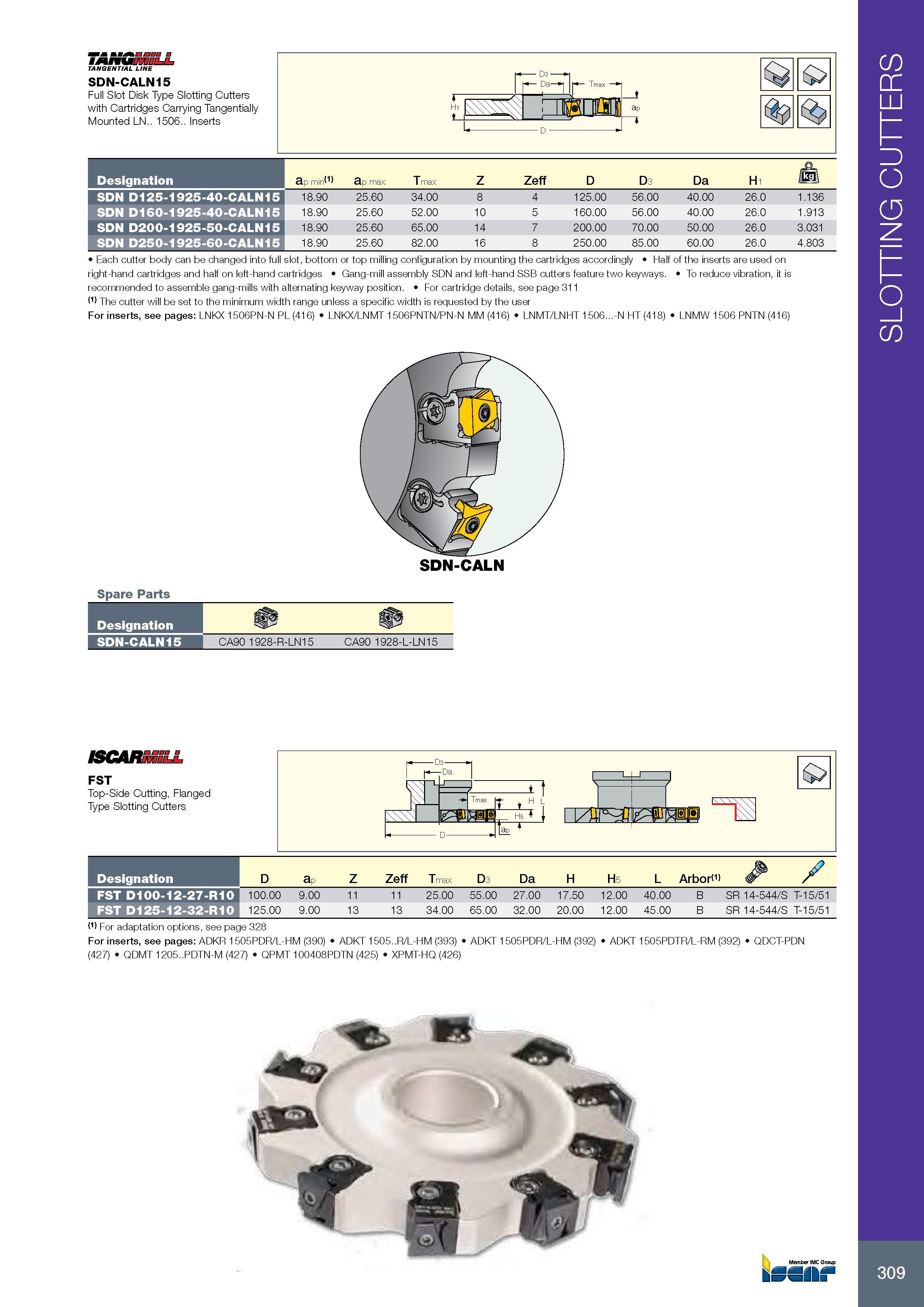

TANGENTIAL LINE SDN-CALN15 Full Slot Disk Type Slotting Cutters with Cartridges Carrying Tangentially Mounted LN.. 1506.. Inserts r D3 Da I" - Tmax L ap Обозначение Designation ap min(1) ap max T max Z Zeff D D3 Da H1 SDN D125-1925-40-CALN15 18.90 25.60 34.00 8 4 125.00 56.00 40.00 26.0 1.136 SDN D160-1925-40-CALN15 18.90 25.60 52.00 10 5 160.00 56.00 40.00 26.0 1.913 SDN D200-1925-50-CALN15 18.90 25.60 65.00 14 7 200.00 70.00 50.00 26.0 3.031 SDN D250-1925-60-CALN15 18.90 25.60 82.00 16 8 250.00 85.00 60.00 26.0 4.803 Each cutter body can be changed into full slot, bottom or top milling configuration by mounting the cartridges accordingly Half of the inserts are used on right-hand cartridges and half on left-hand cartridges Gang-mill assembly SDN and left-hand SSB cutters feature two keyways. To reduce vibration, it is recommended to assemble gang-mills with alternating keyway position. For cartridge details, see page 311 (1) The cutter will be set to the minimum width range unless a specific width is requested by the user For inserts, see pages: LNKX 1506PN-N PL (416) LNKX/LNMT 1506PNTN/PN-N MM (416) LNMT/LNHT 1506...-N HT (418) LNMW 1506 PNTN (416) SDN-CALN Spare Parts Обозначение Designation SDN-CALN15 CA90 1928-R-LN15 CA90 1928-L-LN15 ISCARMILL FST Top-Side Cutting, Flanged Type Slotting Cutters rs K \\ L 3 Da J 1 i i V Tmax - T IT H L 1 1 H5 1 1 s\\\x p. 17 Обозначение Designation D ap Z Zeff Tmax D3 Da H H5 L Arbors & FST D100-12-27-R10 100.00 9.00 11 11 25.00 55.00 27.00 17.50 12.00 40.00 B /S 4/ 4 LO IX 5 /51 LO T- FST D125-12-32-R10 125.00 9.00 13 13 34.00 65.00 32.00 20.00 12.00 45.00 B /S 4/ 4 LO IX 5 /51 LO T- (1) For adaptation options, see page 328 For inserts, see pages: ADKR 1505PDR/L-HM (390) ADKT 1505..R/L-HM (393) ADKT 1505PDR/L-HM (392) ADKT 1505PDTR/L-RM (392) QDCT-PDN (427) QDMT 1205..PDTN-M (427) QPMT 100408PDTN (425) XPMT-HQ (426) h S Member IMC Group 309 SLOTTING CUTTERS
