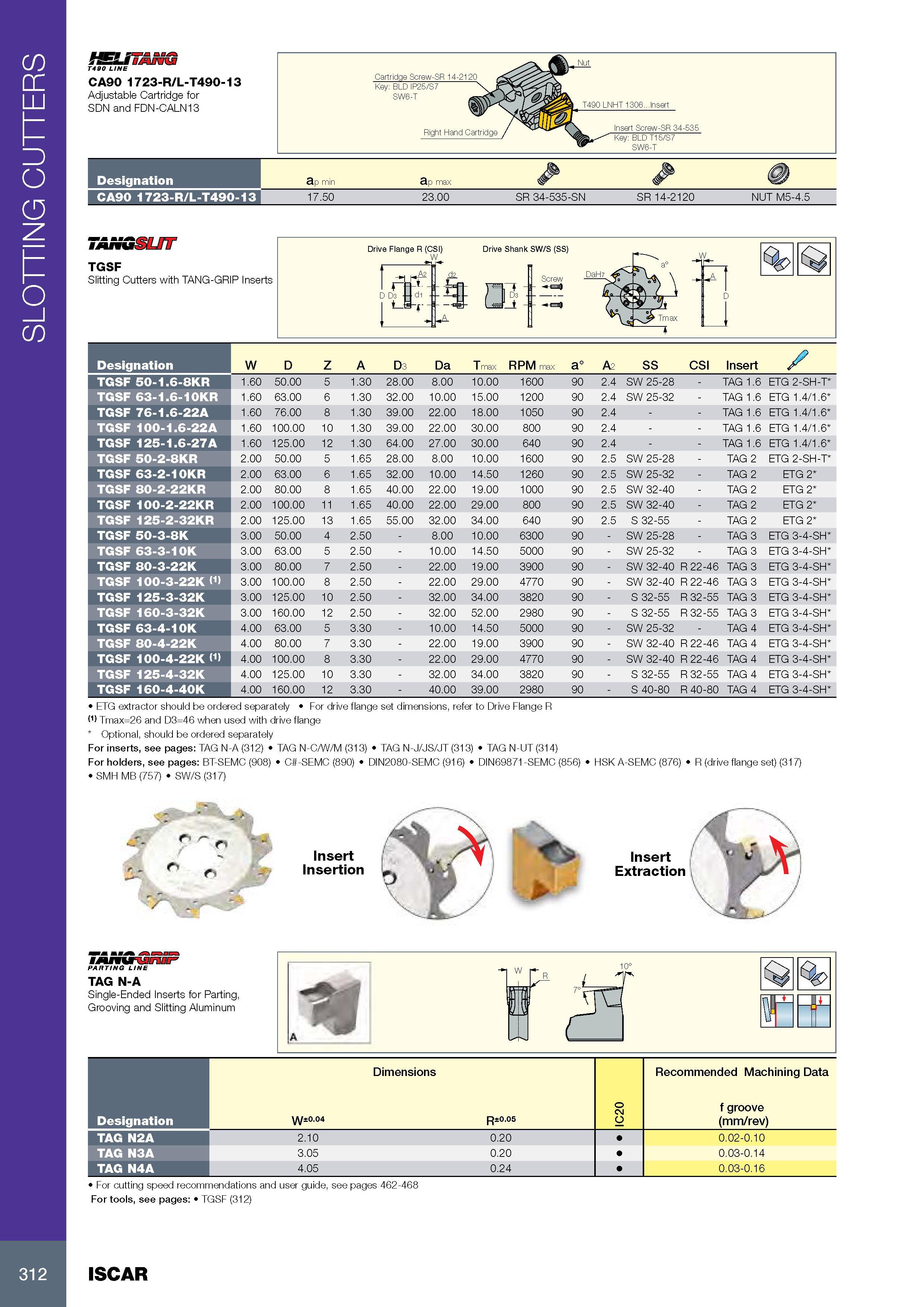

SLOTTING CUTTERS iBsiuSnu T4B0 LINE CA90 1723-R/L-T490-13 Adjustable Cartridge for SDN and FDN-CALN13 Обозначение Designation ap min ap max & CA90 1723-R/L-T490-13 17.50 23.00 SR 34-535-SN SR 14-2120 NUT M5-4.5 TAMGSLOT TGSF Slitting Cutters with TANG-GRIP Inserts Drive Flange R (CSI) W D D3 Drive Shank SW/S (SS) rr D3 Обозначение Designation W D Z A D3 Da T max RPM max a° A2 SS CSI Insert X TGSF 50-1.6-8KR 1.60 50.00 5 1.30 28.00 8.00 10.00 1600 90 2.4 SW 25-28 - TAG 1.6 ETG 2-SH-T TGSF 63-1.6-10KR 1.60 63.00 6 1.30 32.00 10.00 15.00 1200 90 2.4 SW 25-32 - TAG 1.6 ETG 1.4/1.6 TGSF 76-1.6-22A 1.60 76.00 8 1.30 39.00 22.00 18.00 1050 90 2.4 TAG 1.6 ETG 1.4/1.6 TGSF 100-1.6-22A 1.60 100.00 10 1.30 39.00 22.00 30.00 800 90 2.4 TAG 1.6 ETG 1.4/1.6 TGSF 125-1.6-27A 1.60 125.00 12 1.30 64.00 27.00 30.00 640 90 2.4 TAG 1.6 ETG 1.4/1.6 TGSF 50-2-8KR 2.00 50.00 5 1.65 28.00 8.00 10.00 1600 90 2.5 SW 25-28 - TAG 2 ETG 2-SH-T TGSF 63-2-10KR 2.00 63.00 6 1.65 32.00 10.00 14.50 1260 90 2.5 SW 25-32 - TAG 2 ETG 2 TGSF 80-2-22KR 2.00 80.00 8 1.65 40.00 22.00 19.00 1000 90 2.5 SW 32-40 - TAG 2 ETG 2 TGSF 100-2-22KR 2.00 100.00 11 1.65 40.00 22.00 29.00 800 90 2.5 SW 32-40 - TAG 2 ETG 2 TGSF 125-2-32KR 2.00 125.00 13 1.65 55.00 32.00 34.00 640 90 2.5 S 32-55 - TAG 2 ETG 2 TGSF 50-3-8K 3.00 50.00 4 2.50 - 8.00 10.00 6300 90 - SW 25-28 - TAG 3 ETG 3-4-SH TGSF 63-3-10K 3.00 63.00 5 2.50 - 10.00 14.50 5000 90 - SW 25-32 - TAG 3 ETG 3-4-SH TGSF 80-3-22K 3.00 80.00 7 2.50 - 22.00 19.00 3900 90 - SW 32-40 R 22-46 TAG 3 ETG 3-4-SH TGSF 100-3-22K (1) 3.00 100.00 8 2.50 - 22.00 29.00 4770 90 - SW 32-40 R 22-46 TAG 3 ETG 3-4-SH TGSF 125-3-32K 3.00 125.00 10 2.50 - 32.00 34.00 3820 90 - S 32-55 R 32-55 TAG 3 ETG 3-4-SH TGSF 160-3-32K 3.00 160.00 12 2.50 - 32.00 52.00 2980 90 - S 32-55 R 32-55 TAG 3 ETG 3-4-SH TGSF 63-4-10K 4.00 63.00 5 3.30 - 10.00 14.50 5000 90 - SW 25-32 - TAG 4 ETG 3-4-SH TGSF 80-4-22K 4.00 80.00 7 3.30 - 22.00 19.00 3900 90 - SW 32-40 R 22-46 TAG 4 ETG 3-4-SH TGSF 100-4-22K (1) 4.00 100.00 8 3.30 - 22.00 29.00 4770 90 - SW 32-40 R 22-46 TAG 4 ETG 3-4-SH TGSF 125-4-32K 4.00 125.00 10 3.30 - 32.00 34.00 3820 90 - S 32-55 R 32-55 TAG 4 ETG 3-4-SH TGSF 160-4-40K 4.00 160.00 12 3.30 - 40.00 39.00 2980 90 - S 40-80 R 40-80 TAG 4 ETG 3-4-SH ETG extractor should be ordered separately For drive flange set dimensions, refer to Drive Flange R (1) Tmax=26 and D3=46 when used with drive flange Optional, should be ordered separately For inserts, see pages: TAG N-A (312) TAG N-C/W/M (313) TAG N-J/JS/JT (313) TAG N-UT (314) For holders, see pages: BT-SEMC (908) SMH MB (757) SW/S (317) C -SEMC (890) DIN2080-SEMC (916) DIN69871-SEMC (856) HSK A-SEMC (876) R (drive flange set) (317) Insert Insertion PARTING LINE TAG N-A Single-Ended Inserts for Parting, Grooving and Slitting Aluminum n Размеры в мм Dimensions IC20 Режимы резания при металлообработке Recommended Machining Data Обозначение Designation W±0.04 R±°.°5 f groove (mm/rev) TAG N2A 2.10 0.20 0.02-0.10 TAG N3A 3.05 0.20 0.03-0.14 TAG N4A 4.05 0.24 0.03-0.16 For cutting speed recommendations and user guide, see pages 462-468 For tools, see pages: TGSF (312) D A 312 ISCAR
