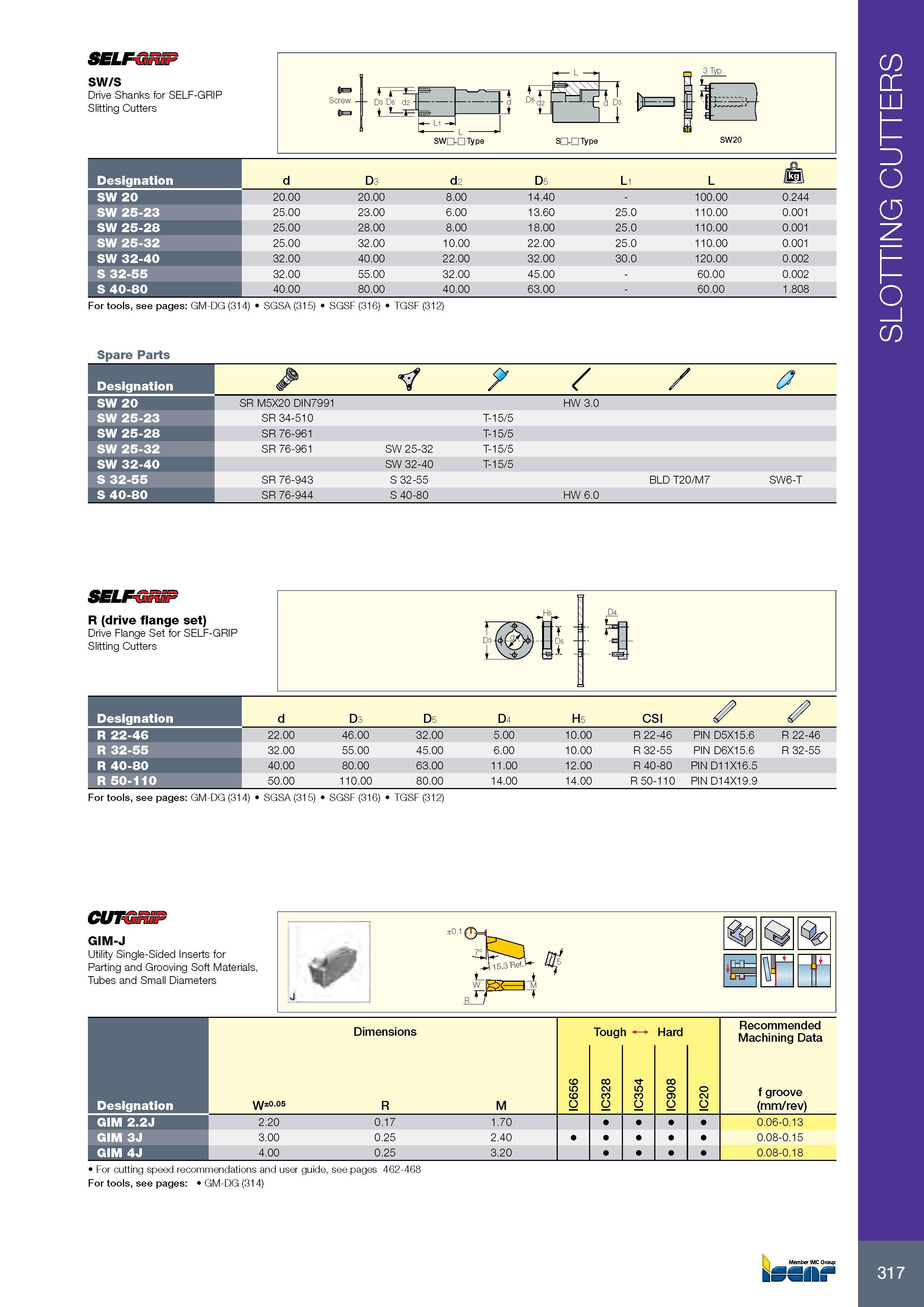

321 Каталог ISCAR 2017 Вращающийся режущий инструмент и инструментальная оснастка Стр.317

Каталог ISCAR 2017 Ротационный инструмент Стр. 317 0321 ENG Lab2u

317 SELF-dniF SW/S Drive Shanks for SELF-GRIP Slitting Cutters Обозначение Designation d D3 d2 D5 L1 L o SW 20 20.00 20.00 8.00 14.40 - 100.00 0.244 SW 25-23 25.00 23.00 6.00 13.60 25.0 110.00 0.001 SW 25-28 25.00 28.00 8.00 18.00 25.0 110.00 0.001 SW 25-32 25.00 32.00 10.00 22.00 25.0 110.00 0.001 SW 32-40 32.00 40.00 22.00 32.00 30.0 120.00 0.002 S 32-55 32.00 55.00 32.00 45.00 - 60.00 0.002 S 40-80 40.00 80.00 40.00 63.00 - 60.00 1.808 For tools, see pages: GM-DG (314) SGSA (315) SGSF (316) TGSF (312) Spare Parts Обозначение Designation a SW 20 SR M5X20 DIN7991 HW 3.0 SW 25-23 SR 34-510 T-15/5 SW 25-28 SR 76-961 T-15/5 SW 25-32 SR 76-961 SW 25-32 T-15/5 SW 32-40 SW 32-40 T-15/5 S 32-55 SR 76-943 S 32-55 BLD T20/M7 SW6-T S 40-80 SR 76-944 S 40-80 HW 6.0 SELF-GniF R (drive flange set) Drive Flange Set for SELF-GRIP Slitting Cutters Обозначение Designation R 22-46 R 32-55 R 40-80 R 50-110 d D3 D5 D4 H5 CSI 22.00 32.00 40.00 50.00 46.00 55.00 80.00 110.00 32.00 45.00 63.00 80.00 5.00 6.00 11.00 14.00 10.00 10.00 12.00 14.00 R 22-46 R 32-55 R 40-80 R 50-110 PIN D5X15.6 PIN D6X15.6 PIN D11X16.5 PIN D14X19.9 For tools, see pages: GM-DG (314) SGSA (315) SGSF (316) TGSF (312) R 22-46 R 32-55 CUT-GniF GIM-J Utility Single-Sided Inserts for Parting and Grooving Soft Materials, Tubes and Small Diameters Jil5.3Ref> l 4 rm Обозначение Designation GIM 2.2J GIM 3J GIM 4J Размеры в мм Dimensions Tough Hard Режимы резания при металлообработке Recommended Machining Data W±0.05 R M IC656 IC328 5 IC IC908 IC20 f groove (mm/rev) 2.20 0.17 1.70 0.06-0.13 3.00 0.25 2.40 0.08-0.15 4.00 0.25 3.20 0.08-0.18 For cutting speed recommendations and user guide, see pages 462-468 For tools, see pages: GM-DG (314) SLOTTING CUTTERS
