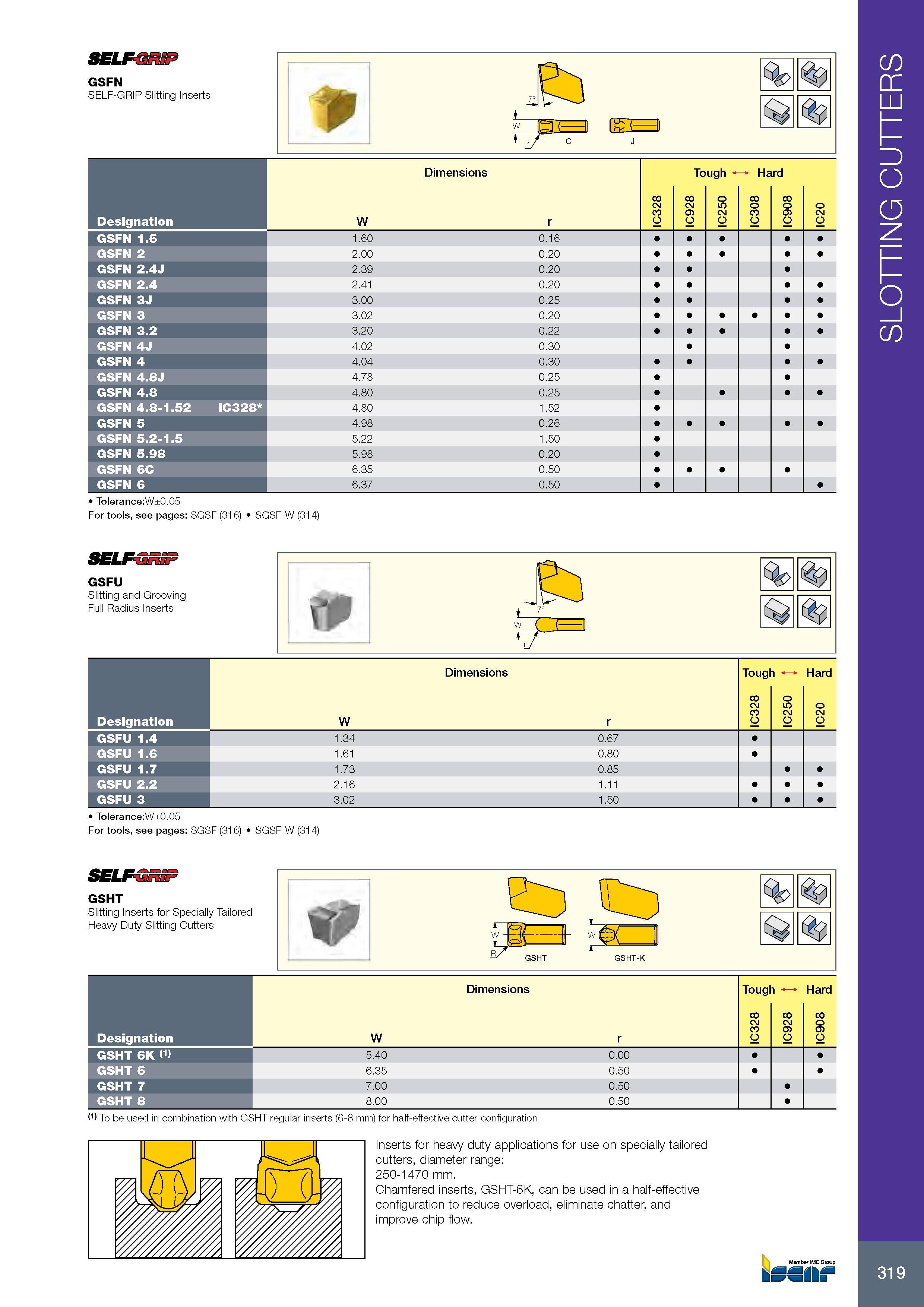

323 Каталог ISCAR 2017 Вращающийся режущий инструмент и инструментальная оснастка Стр.319

Каталог ISCAR 2017 Ротационный инструмент Стр. 319 0323 ENG Lab2u

Designation GSFN 1.6 GSFN 2 GSFN 2.4J GSFN 2.4 GSFN 3J GSFN 3 GSFN 3.2 GSFN 4J GSFN 4 GSFN 4.8J GSFN 4.8 GSFN 4.8-1.52 IC328 GSFN 5 GSFN 5.2-1.5 GSFN 5.98 GSFN 6C GSFN 6 Размеры в мм Dimensions W 1.60 2.00 2.39 2.41 3.00 3.02 3.20 4.02 4.04 4.78 4.80 4.80 4.98 5.22 5.98 6.35 6.37 r 0.16 0.20 0.20 0.20 0.25 0.20 0.22 0.30 0.30 0.25 0.25 1.52 0.26 1.50 0.20 0.50 0.50 Tough Hard IC328 IC928 IC250 IC308 IC908 0 2 C Tolerance:W±0.05 For tools, see pages: SGSF (316) 1 SGSF-W (314) GSFU Slitting and Grooving Full Radius Inserts W Размеры в мм Dimensions Tough Hard Обозначение Designation W r IC328 IC250 IC20 GSFU 1.4 1.34 0.67 GSFU 1.6 1.61 0.80 GSFU 1.7 1.73 0.85 GSFU 2.2 2.16 1.11 GSFU 3 3.02 1.50 Tolerance:W±0.05 For tools, see pages: SGSF (316) SGSF-W (314) SELF-GRSF GSHT Slitting Inserts for Specially Tailored Heavy Duty Slitting Cutters W Размеры в мм Dimensions Tough Hard Обозначение Designation W r IC328 IC928 IC908 GSHT 6K <1> 5.40 0.00 GSHT 6 6.35 0.50 GSHT 7 7.00 0.50 GSHT 8 8.00 0.50 To be used in combination with GSHT regular inserts (6-8 mm) for half-effective cutter configuration Inserts for heavy duty applications for use on specially tailored cutters, diameter range: 250-1470 mm. Chamfered inserts, GSHT-6K, can be used in a half-effective configuration to reduce overload, eliminate chatter, and improve chip flow. Member IMC Group kSSII t SLOTTING CUTTERS
