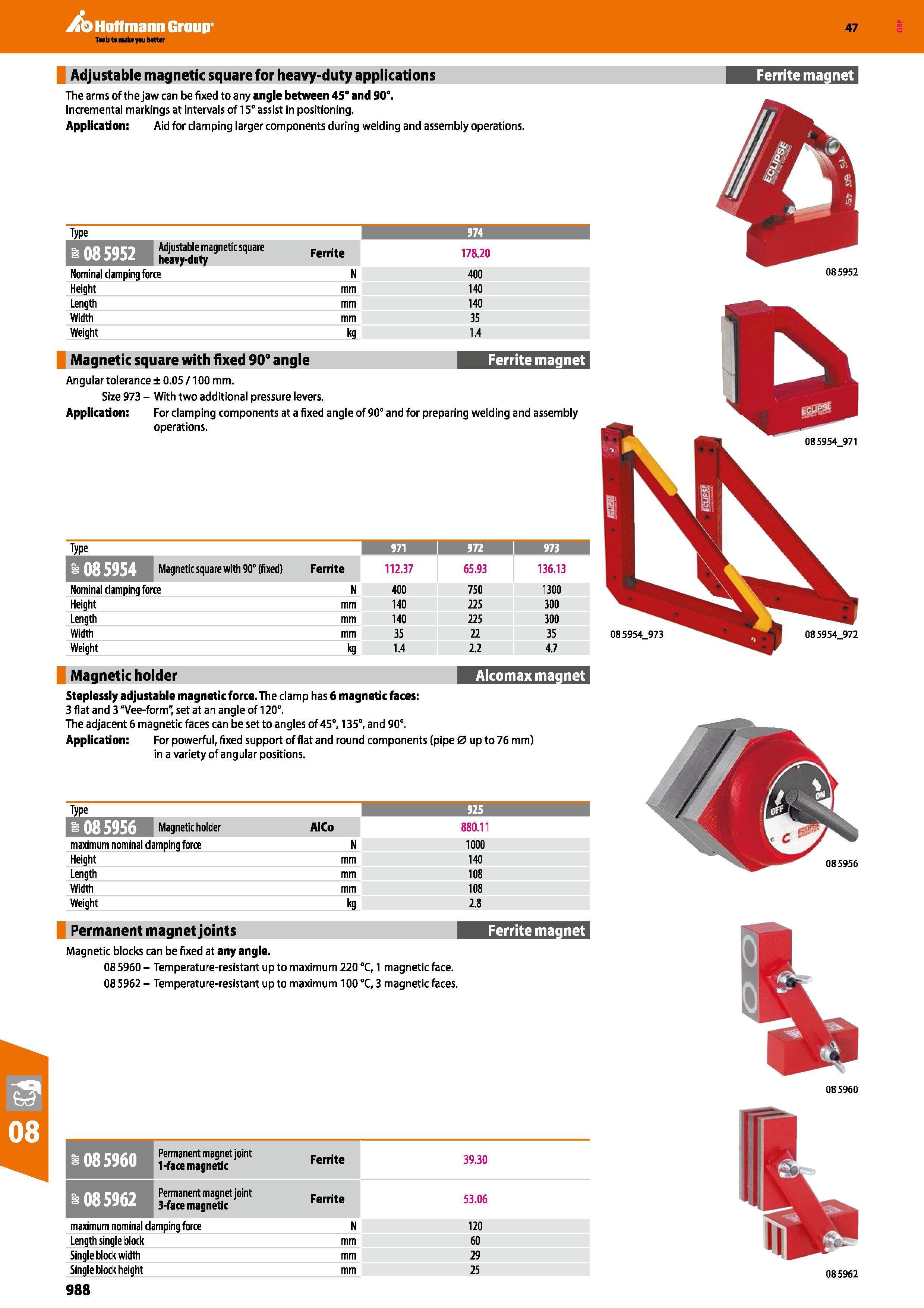

Hoffmann Group 47 Adjustable magnetic square for heavy-duty applications The arms of the jaw can be fixed to any angle between 45° and 90°. Incremental markings at intervals of 15° assist in positioning. Application: Aid for clamping larger components during welding and assembly operations. Type 974 m 85952 Adjustable magnetic square _ heavy-duty herme 178.20 Nominal damping force Height Length Width Weight mm kg 400 140 140 35 1.4 085952 Ferrite magnet Magnetic square with fixed 90° angle Angular tolerance ± 0.05 /100 mm. Size 973 - With two additional pressure levers. Application: For clamping components at a fixed angle of 90° and for preparing welding and assembly operations. Type 1 971 972 I 73 Magnetic sq uare with 90° (fixed) Ferrite 112.37 65.93 136.13 Nominal clamping force N 400 750 1300 Height mm 140 225 300 Length mm 140 225 300 Width mm 35 22 35 Weight ls_ 1.4 2.2 4.7 Magnetic holder KEEEES3E1 Steplessly adjustable magnetic force. The clamp has 6 magnetic faces: 3 flat and 3 "Vee-form", set at an angle of 120°. The adjacent 6 magnetic faces can be set to angles of 45°, 135°, and 90°. Application: For powerful, fixed support of flat and round components (pipe 0 up to 76 mm) in a variety of angular positions. Type 925 mmiim Magnetic holder AlCo 880.11 maximum nominal clamping force N 1000 Height mm 140 Length mm 108 Width mm 108 Weight kg 2.8 Permanent magnet joints mtmmm Magnetic blocks can be fixed at any angle. 085960- Temperature-resistant up to maximum 220 °C,1 magnetic face. 085962- Temperature-resistant upto maximum 100°C,3 magnetic faces. mm Permanent magnet joint 1-faie magnetic Ferrite 39.30 085962 Permanent magnet joint 3-face magnetic Ferrite 53.06 maximum nominal clamping force N 120 Length single block mm 60 Single block width mm 29 Single block height mm 25 988 08 5954_973 08 5954_972 08 5954_971 085956 085960
