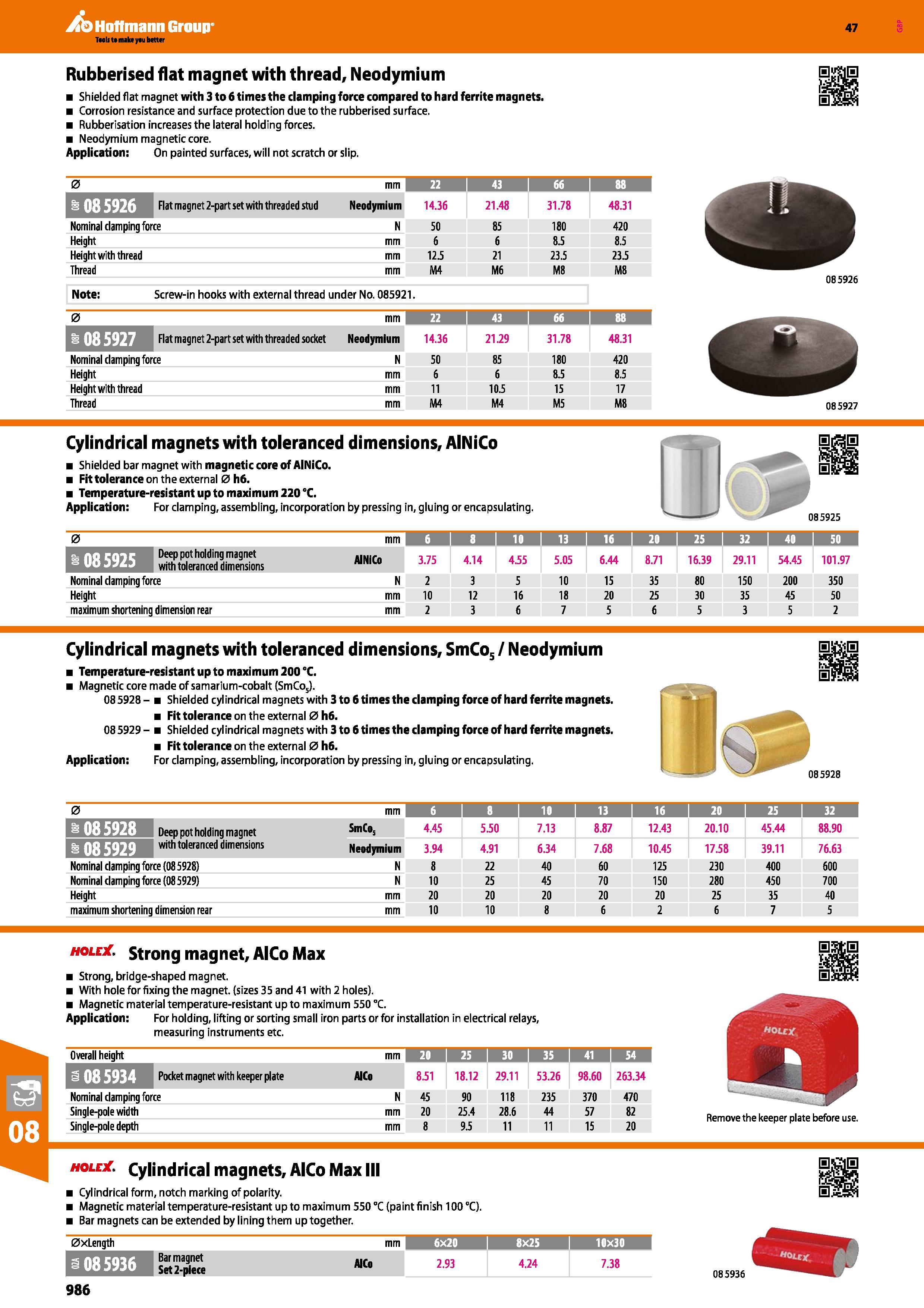

Hoffmann Group 47 Rubberised flat magnet with thread, Neodymium Shielded flat magnet with 3 to 6 times the clamping force compared to hard ferrite magnets. Corrosion resistance and surface protection due to the rubberised surface. Rubberisation increases the lateral holding forces. Neodymium magnetic core. Application: On painted surfaces, will not scratch or slip. 0 mm 22 43 66 1 88 Flat magnet 2-part set with threaded stud Neodymium 14.36 21.48 31.78 48.31 Nominal clamping force N 50 85 180 420 Height mm 6 6 8.5 8.5 Height with thread mm 12.5 21 23.5 23.5 Thread mm M4 M6 M8 M8 Note: Screw-in hooks with external thread under No. 085921. 0 mm 22 43 1 66 88 Flat magnet 2-part set with threaded socket Neodymium 14.36 21.29 31.78 48.31 Nominal clamping force N 50 85 180 420 Height mm 6 6 8.5 8.5 Height with thread mm 11 10.5 15 17 Thread mm M4 M4 M5 M8 085926 085927 Cylindrical magnets with toleranced dimensions, AlNiCo Shielded bar magnet with magnetic core of AlNiCo. Fit tolerance on the external 0 h6. Temperature-resistant up to maximum 220 °C. Application: For clamping, assembling, incorporation by pressing in, gluing or encapsulating. 085925 0 mm 6 i 10 1 13 16 20 1 25 1 32 j 40 1 50 1 Deep pot holding magnet with toleranced dimensions AlNiCo 3.75 4.14 4.55 5.05 6.44 8.71 16.39 29.11 54.45 101.97 Nominal clamping force N 2 3 5 10 15 35 80 150 200 350 Height mm 10 12 16 18 20 25 30 35 45 50 maximum shortening dimension rear mm 2 3 6 7 5 6 5 3 5 2 Cylindrical magnets with toleranced dimensions, SmCo5 / Neodymium Temperature-resistant up to maximum 200 °C. Magnetic core made of samarium-cobalt (SmCo5). 08 5928 - Shielded cylindrical magnets with 3 to 6 times the clamping force of hard ferrite magnets. Fit tolerance on the external 0h6. 08 5929 - Shielded cylindrical magnets with 3 to 6 times the clamping force of hard ferrite magnets. Fit tolerance on the external 0h6. Application: For clamping, assembling, incorporation by pressing in, gluing or encapsulating. 085928 0 mm 6 i 8 I 10 I 13 i 16 1 20 I 25 I 32 Deep pot holding magnet SmCos 4.45 5.50 7.13 8.87 12.43 20.10 45.44 88.90 with toleranced dimensions Neodymium 3.94 4.91 6.34 7.68 10.45 17.58 39.11 76.63 Nominal clamping force (08 5928) N 8 22 40 60 125 230 400 600 Nominal clamping force (08 5929) N 10 25 45 70 150 280 450 700 Height mm 20 20 20 20 20 25 35 40 maximum shortening dimension rear mm 10 10 8 6 2 6 7 5 hole , strong magnet, AlCo Max Strong, bridge-shaped magnet. With hole for fixing the magnet, (sizes 35 and 41 with 2 holes). Magnetic material temperature-resistant up to maximum 550 °C. Application: For holding, lifting or sorting small iron parts or for installation in electrical relays, measuring instruments etc. Overall height mm 20 I 25 I 30 I 35 I 41 I 54 Pocket magnet with keeper plate AlCo 8.51 18.12 29.11 53.26 98.60 263.34 Nominal clamping force N 45 90 118 235 370 470 Single-pole width mm 20 25.4 28.6 44 57 82 Single-pole depth mm 8 9.5 11 11 15 20 Remove the keeper plate before use. holeCylindrical magnets, AlCo Max III Cylindrical form, notch marking of polarity. Magnetic material temperature-resistant up to maximum 550 °C (paint finish 100 °C). Bar magnets can be extended by lining them up together. 0xLength mm 6x20 8x25 i 10x30 1 08 5936 Bar magnet Set 2-piece AlCo 2.93 4.24 7.38 986 085936
