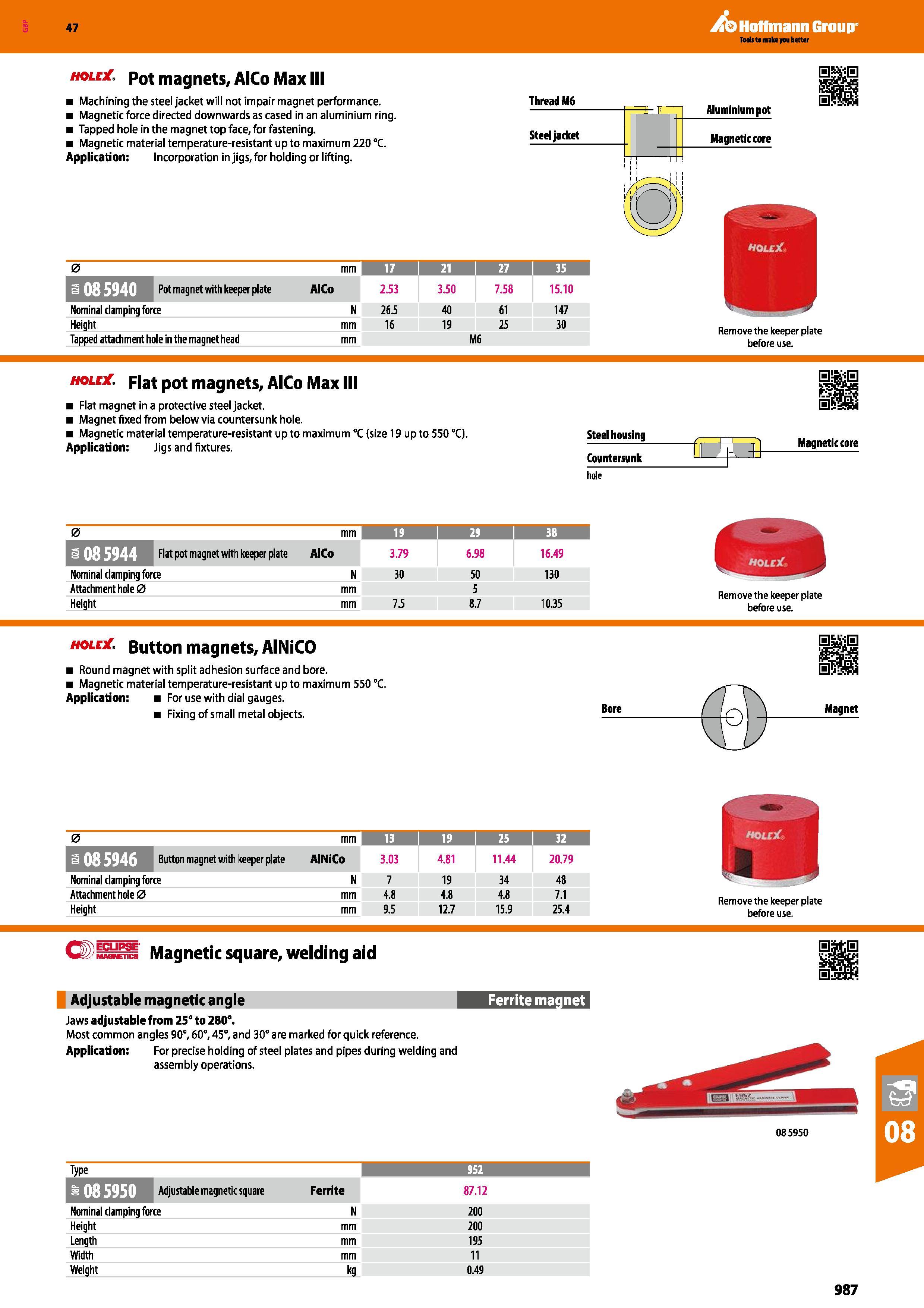

Hoffmann Group 47 hole . p0t magnets, AlCo Max III Machining the steel jacket will not impair magnet performance. Magnetic force directed downwards as cased in an aluminium ring. Tapped hole in the magnet top face, for fastening. Magnetic material temperature-resistant up to maximum 220 °C. Application: Incorporation in jigs, for holding or lifting. Thread M6 Steel jacket Aluminium pot Magnetic core 0 mm 17 I 21 I 27 I 35 llKJVZjTM Pot magnet with keeper plate AlCo 2.53 3.50 7.58 15.10 Nominal damping force N 26.5 40 61 147 Height mm 16 19 25 30 Tapped attachment hole in the magnet head mm M6 Remove the keeper plate before use. hole . F at pot magnets, AlCo Max III Flat magnet in a protective steel jacket. Magnet fixed from below via countersunk hole. Magnetic material temperature-resistant up to maximum °C (size 19 up to 550 °C). Application: Jigs and fixtures. Steel housing Countersunk hole Magnetic core 0 mm 19 29 38 1 Flat pot magnet with keeper plate AlCo 3.79 6.98 16.49 Nominal clamping force N 30 50 130 Attachment hole 0 mm 5 Height mm 7.5 8.7 10.35 Remove the keeper plate before use. hole . Button magnets, AINiCO Round magnet with split adhesion surface and bore. Magnetic material temperature-resistant up to maximum 550 °C. Application: For use with dial gauges. Fixing of small metal objects. 0 mm 13 1 25 I 32 aiKCViT Button magnet with keeper plate AINiCo 3.03 4.81 11.44 20.79 Nominal clamping force N 7 19 34 48 Attachment hole 0 mm 4.8 4.8 4.8 7.1 Height mm 9.5 12.7 15.9 25.4 Remove the keeper plate before use. Magnetic square, welding aid Adjustable magnetic angle Jaws adjustable from 25° to 280°. Most common angles 90°, 60°, 45°, and 30° are marked for quick reference. Application: For precise holding of steel plates and pipes during welding and assembly operations. Type 952 1 Adjustable magnetic square Ferrite 87.12 Nominal clamping force N 200 Height mm 200 Length mm 195 Width mm 11 Weight kg 0.49 987
