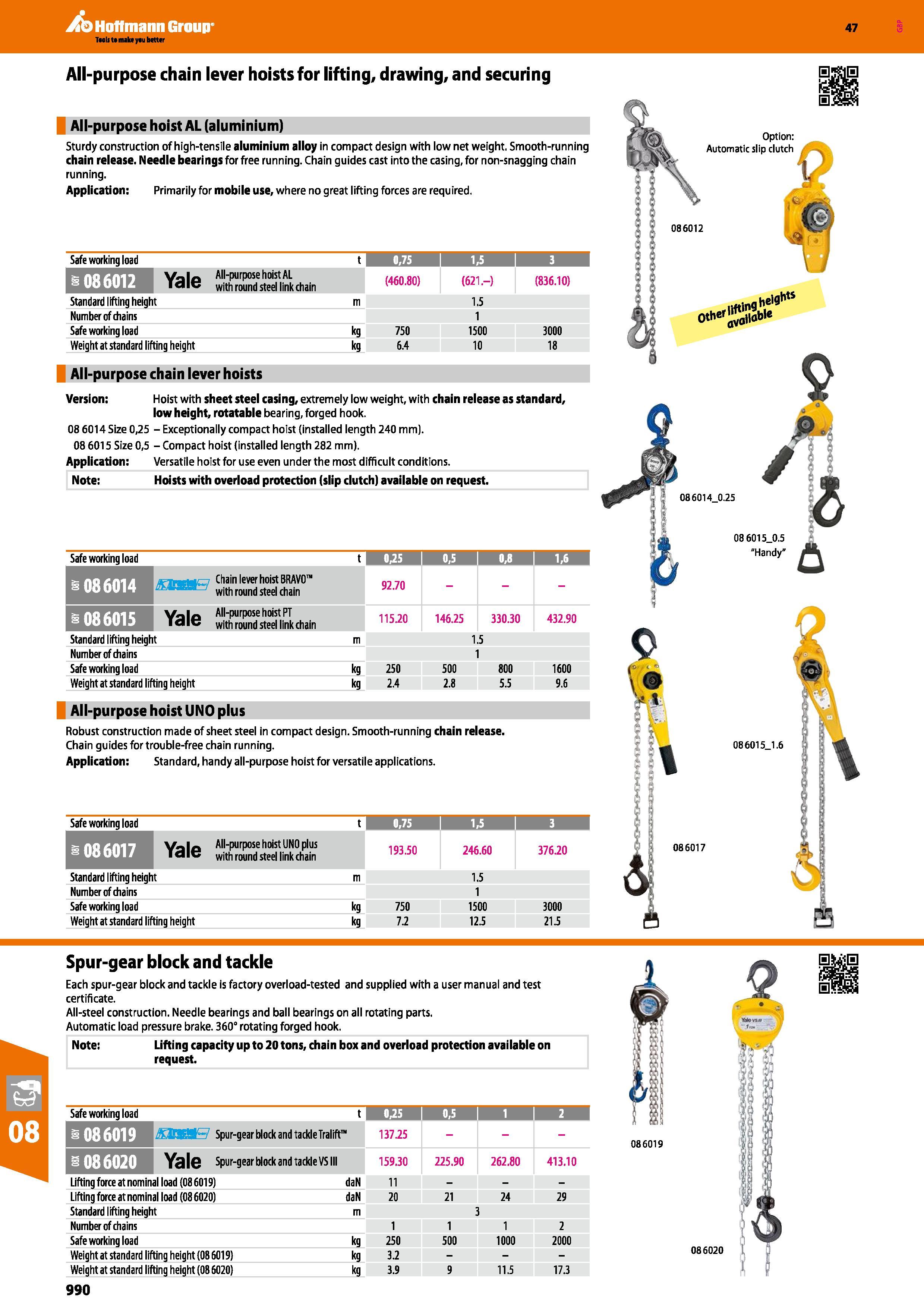

Hoffmann Group 47 All-purpose chain lever hoists for lifting, drawing, and securing All-purpose hoist AL (aluminium) Sturdy construction of high-tensile aluminium alloy in compact design with low net weight. Smooth-running chain release. Needle bearings for free running. Chain guides cast into the casing, for non-snagging chain running. Application: Primarily for mobile use, where no great lifting forces are required. Safe working load t ,75 I 1,5 i 3 BTT77TM Yale All-purpose hoist AL with round steel link chain (460.80) (621.-) (836.10) Standard lifting height m 1.5 Number of diains 1 Safe working load kg 750 1500 3000 Weight at standard lifting height kg 6.4 10 18 All-purpose chain lever hoists Version: Moist with sheet steel casing, extremely low weight, with chain release as standard, low height, rotatable bearing, forged hook. 08 6014 Size 0,25 - Exceptionally compact hoist (installed length 240 mm). 08 6015 Size 0,5 - Compact hoist (installed length 282 mm). Application: Versatile hoist for use even under the most difficult conditions. Note: Hoists with overload protection (slip clutch) available on request. Safe working load t 0,25 i 0,5 I 0,8 i 1,6 I Chain lever hoist BRAVO with round steel chain 92.70 086015 All-purpose hoist PT with round steel link chain 115.20 146.25 330.30 432.90 Standard lifting height m 1.5 Number of diains 1 Safe working load kg 250 500 800 1600 Weight at standard lifting height kg 2.4 2.8 5.5 9.6 All-purpose hoist UNO plus Robust construction made of sheet steel in compact design. Smooth-running chain release. Chain guides for trouble-free chain running. Application: Standard, handy all-purpose hoist for versatile applications. Safe working load t 0,75 I 1,5 1 3 s 086017 All-purpose hoist UNO plus with round steel link chain 193.50 246.60 376.20 Standard lifting height m 1.5 Number of diains 1 Safe working load kg 750 1500 3000 Weight at standard lifting height kg 7.2 12.5 21J Spur-gear block and tackle Each spur-gear block and tackle is factory overload-tested and supplied with a user manual and test certificate. All-steel construction. Needle bearings and ball bearings on all rotating parts. Automatic load pressure brake. 360° rotating forged hook. Note; Lifting capacity up to 20 tons, chain box and overload protection available on request. Q Safe working load t 0,25 0,5 I 1 1 2 Spur-gear block and tackle Tralift' M 137.25 Yale Spur-gear block and tackle VS III 159.30 225.90 262.80 413.10 Lifting force at nominal load (08 6019) daN 11 Lifting force at nominal load (08 6020) daN 20 21 24 29 Standard lifting height m 3 Number of chains 1 1 1 2 Safe working load kg 250 500 1000 2000 Weight at standard lifting height (08 6019) kg 3.2 Weight at standard lifting height (08 6020) kg 3.9 9 11.5 17.3 990 086019 086020 Option: Automatic slip clutch 086012 086014_0.25 08 6015_0.5 "Handy" 086015_1.6 086017
