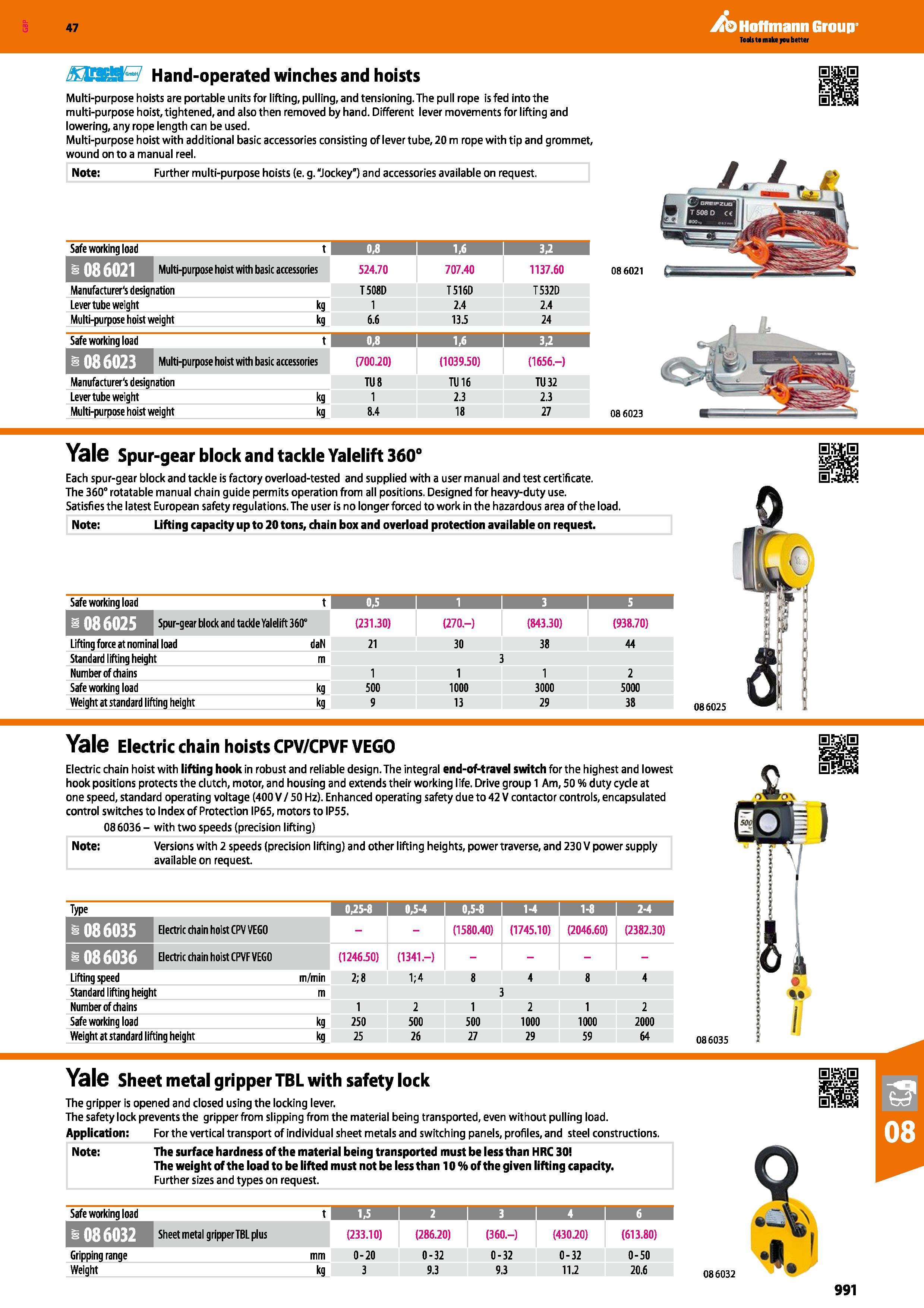

Hoffmann Group 47 Hand-operated winches and hoists Multi-purpose hoists are portable units for lifting, pulling, and tensioning. The pull rope is fed into the multi-purpose hoist, tightened, and also then removed by hand. Different lever movements for lifting and lowering, any rope length can be used. Multi-purpose hoist with additional basic accessories consisting of lever tube, 20 m rope with tip and grommet, wound on to a manual reel. Note: Further multi-purpose hoists (e. g. “Jockey") and accessories available on request. Safe working load t 0,8 1,6 3,2 I Multi-purpose hoist with basic accessories 524.70 707.40 1137.60 Manufacturer's designation T508D T516D T532D Lever tube weight kg 1 2.4 2.4 Multi-purpose hoist weight kg 6.6 13.5 24 Safe working load t 0,8 I i. 3,2 Multi-purpose hoist with basic accessories (700.20) (1039.50) (1656.-) Manufacturer's designation TU 8 TU 16 TU 32 Lever tube weight kg 1 2.3 2.3 Multi-purpose hoist weight kg 8.4 18 27 08 6021 08 6023 Yale Spur-gear block and tackle Yalelift 360° Each spur-gear block and tackle is factory overload-tested and supplied with a user manual and test certificate. The 360° rotatable manual chain guide permits operation from all positions. Designed for heavy-duty use. Satisfies the latest European safety regulations. The user is no longer forced to work in the hazardous area of the load. Note: Lifting capacity up to 20 tons, chain box and overload protection available on request. Safe working load Spur-gear block and tackle Yalelift 360° Lifting force at nominal load daN Standard lifting height Number of chains Safe working load Weight at standard lifting height kg kg (231.30) 21 1 500 9 I 1 I 3 I 5 (270.-) (843.30) (938.70) 30 38 44 3 1 1 2 1000 3000 5000 29 38 086025 Yale Electric chain hoists CPV/CPVF VEGO Electric chain hoist with lifting hook in robust and reliable design. The integral end-of-travel switch for the highest and lowest hook positions protects the clutch, motor, and housing and extends their working life. Drive group 1 Am, 50 % duty cycle at one speed, standard operating voltage (400 V/ 50 Hz). Enhanced operating safety due to 42 V contactor controls, encapsulated control switches to Index of Protection IP65, motors to IP55. 086036 - with two speeds (precision lifting) Note: Versions with 2 speeds (precision lifting) and other lifting heights, power traverse, and 230 V power supply available on request. Type H 0,25-8 0,5-4 1 0,5-8 j 1-4 i 1-8 I 2-4 Electric chain hoist CPV VEGO (1580.40) (1745.10) (2046.60) (2382.30) Electric chain hoist CF’VF VEGO (1246.50) (1341.-) - Lifting speed m/min 2; 8 1;4 8 4 8 4 Standard lifting height m 3 Number of chains 1 2 1 2 1 2 Safe working load Weight at standard lifting height kg kg 250 25 500 26 500 27 1000 29 1000 59 2000 64 086035 Yale Sheet metal gripper TBL with safety lock The gripper is opened and closed using the locking lever. The safety lock prevents the gripper from slipping from the material being transported, even without pulling load. Application: For the vertical transport of individual sheet metals and switching panels, profiles, and steel constructions. Note: The surface hardness of the material being transported must be less than HRC 30 The weight of the load to be lifted must not be less than 10 % of the given lifting capacity. Further sizes and types on request. Safe working load mm 1.5 1 2 1 3 1 4 1 6 Sheet metal gripper TBL plus (233.10) (286.20) (360.-) (430.20) (613.80) Gripping range mm 0-20 0-32 0-32 0-32 0-50 Weight kg 3 9.3 9.3 11.2 20.6 086032
