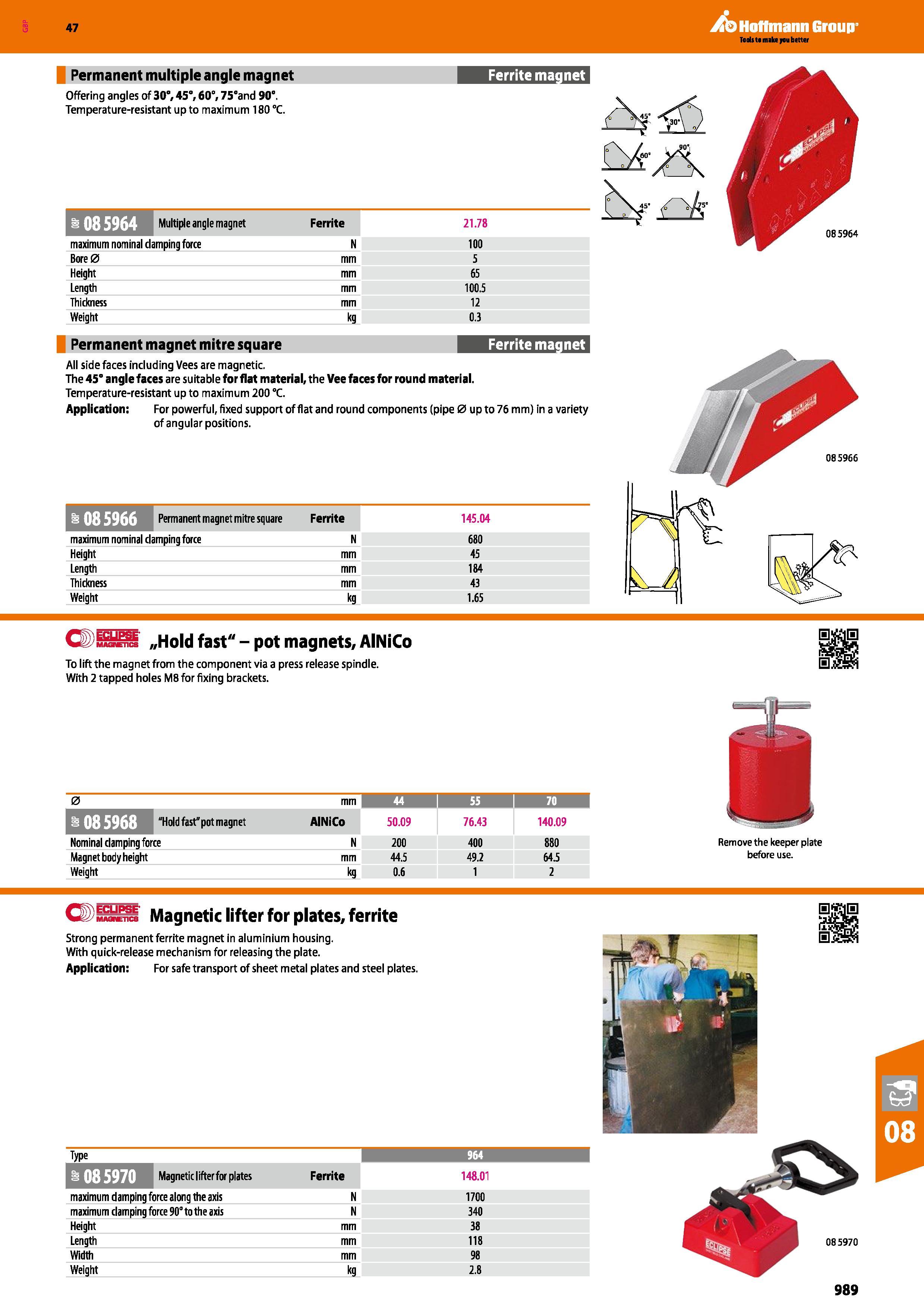

989 Каталог HOFFMANN GROUP 2016 Слесарно-монтажный и измерительный инструмент Вер. 47 ENG Стр.989

Каталог HOFFMANN GROUP 2016 Слесарный и мерительный инструмент Стр. 989 0989 ENG Lab2u

Hoffmann Group 47 Permanent multiple angle magnet Offering angles of 30°, 45°, 60°, 75°and 90°. Temperature-resistant upto maximum 180°C. Multiple angle magnet Ferrite 21.78 maximum nominal clamping force N 100 Bore0 mm 5 Height mm 65 Length mm 100.5 Thickness mm 12 Weight kg 0.3 Permanent magnet mitre square All side faces including Vees are magnetic. The 45° angle faces are suitable for flat material, the Vee faces for round material. Temperature-resistant up to maximum 200 °C. Application: For powerful, fixed support of flat and round components (pipe 0 up to 76 mm) in a variety of angular positions. ajTjRTiJiJ Permanent magnet mitre square Ferrite 145.04 maximum nominal damping force N 680 Height mm 45 Length mm 184 Thickness mm 43 Weight kg 1.65 CvTBHI „Hold fast" - pot magnets, AINiCo To lift the magnet from the component via a press release spindle. With 2 tapped holes M8 for fixing brackets. 0 mm 44 1 55 70 "Hold fast"pot magnet AINiCo 50.09 76.43 140.09 Nominal damping force N 200 400 880 Magnet body height mm 44.5 49.2 64.5 Weight kg 0.6 1 2 C Magnetic lifter for plates, ferrite Strong permanent ferrite magnet in aluminium housing. With quick-release mechanism for releasing the plate. Application: For safe transport of sheet metal plates and steel plates. Type 964 Magnetic lifter for plates Ferrite 148.01 maximum damping force along the axis N 1700 maximum clamping force 90° to the axis N 340 Height mm 38 Length mm 118 Width mm 98 Weight kg 2.8 085964 085966 Remove the keeper plate before use. 085970 989
