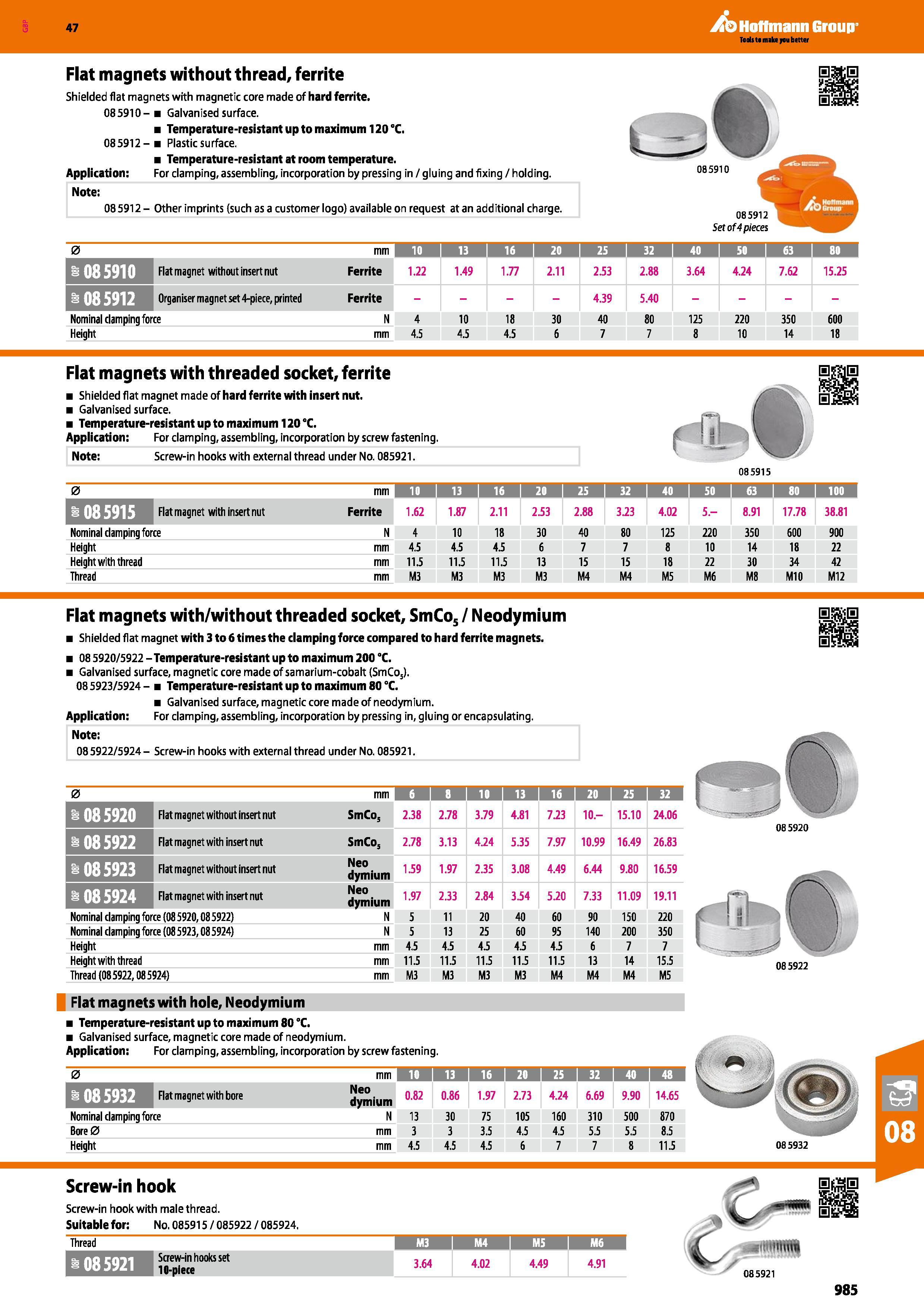

Hoffmann Group 47 Flat magnets without thread, ferrite Shielded flat magnets with magnetic core made of hard ferrite. 085910- Galvanised surface. Temperature-resistant up to maximum 120 °C. 085912- Plastic surface. Temperature-resistant at room temperature. Application: For clamping, assembling, incorporation by pressing in / gluing and fixing / holding. Note: 085912 - Other imprints (such as a customer logo) available on request at an additional charge. 0 mm 10 I 13 1 16 1 20 I 25 I 32 I 40 1 50 i 3 80 Flat magnet without insert nut Ferrite 1.22 1.49 1.77 2.11 2.53 2.88 3.64 4.24 7.62 15.25 HlKfrWlH Organiser magnet set 4-piece, printed Ferrite - 4.39 5.40 - Nominal clamping force N 4 10 18 30 40 80 125 220 350 600 Height mm 4.5 4.5 4.5 6 7 7 8 10 14 18 Flat magnets with threaded socket, ferrite Shielded flat magnet made of hard ferrite with insert nut. Galvanised surface. Temperature-resistant up to maximum 120 °C. Application: For clamping, assembling, incorporation by screw fastening. Note: Screw-in hooks with external thread under No. 085921. 085915 0 mm 10 1 13 1 16 1 20 1 25 1 32 1 40 50 I 63 KM1 100 1 Flat magnet with insert nut Ferrite 1.62 1.87 2.11 2.53 2.88 3.23 4.02 5.- 8.91 17.78 38.81 Nominal clamping force N 4 10 18 30 40 80 125 220 350 600 900 Height mm 4.5 4.5 4.5 6 7 7 8 10 14 18 22 Height with thread mm 11.5 11.5 11.5 13 15 15 18 22 30 34 42 Thread mm M3 M3 M3 M3 M4 M4 M5 M6 M8 M10 M12 Flat magnets with/without threaded socket, SmCo5 / Neodymium Shielded flat magnet with 3 to 6 times the clamping force compared to hard ferrite magnets. 08 5920/5922 -Temperature-resistant up to maximum 200 °C. Galvanised surface, magnetic core made of samarium-cobalt (SmCo5). 08 5923/5924 - Temperature-resistant up to maximum 80 °C. Galvanised surface, magnetic core made of neodymium. Application: For clamping, assembling, incorporation by pressing in, gluing or encapsulating. Note: 08 5922/5924 - Screw-in hooks with external thread under No. 085921. 0 mm 6 I 8 I 10 I 13 I 16 I 20 I 25 I 32 085920 Flat magnet without insert nut SmCo, 2.38 2.78 3.79 4.81 7.23 10.- 15.10 24.06 085922 Flat magnet with insert nut SmCo, 2.78 3.13 4.24 5.35 7.97 10.99 16.49 26.83 085923 Flat magnet without insert nut Neo dymium 1.59 1.97 2.35 3.08 4.49 6.44 9.80 16.59 085924 Flat magnet with insert nut Neo dymium 1.97 2.33 2.84 3.54 5.20 7.33 11.09 19.11 Nominal clamping force (08 5920,08 5922) N 5 11 20 40 60 90 150 220 Nominal clamping force (08 5923,08 5924) N 5 13 25 60 95 140 200 350 Height mm 4.5 4.5 4.5 4.5 4.5 6 7 7 Height with thread mm 11.5 11.5 11.5 11.5 11.5 13 14 15.5 Thread (085922,085924) mm M3 M3 M3 M3 M4 M4 M4 M5 085910 085912 Set of 4 pieces Flat magnets with hole, Neodymium Temperature-resistant up to maximum 80 °C. Galvanised surface, magnetic core made of neodymium. Application: For clamping, assembling, incorporation by screw fastening. 0 m Flat magnet with bore Neo dymium 0.82 0.86 1.97 2.73 4.24 6.69 9.90 14.65 Nominal clamping force N 13 30 75 105 160 310 500 870 Bore0 mm 3 3 3.5 4.5 4.5 5.5 5.5 8.5 Height mm 4.5 4.5 4.5 6 7 7 8 11J 085922 085932 Screw-in hook Screw-in hook with male thread. Suitable for: No. 085915 / 085922 / 085924. Thread Screw-in hooks set 10-piece 3.64 4.02 4.49 4.91 085921 985
