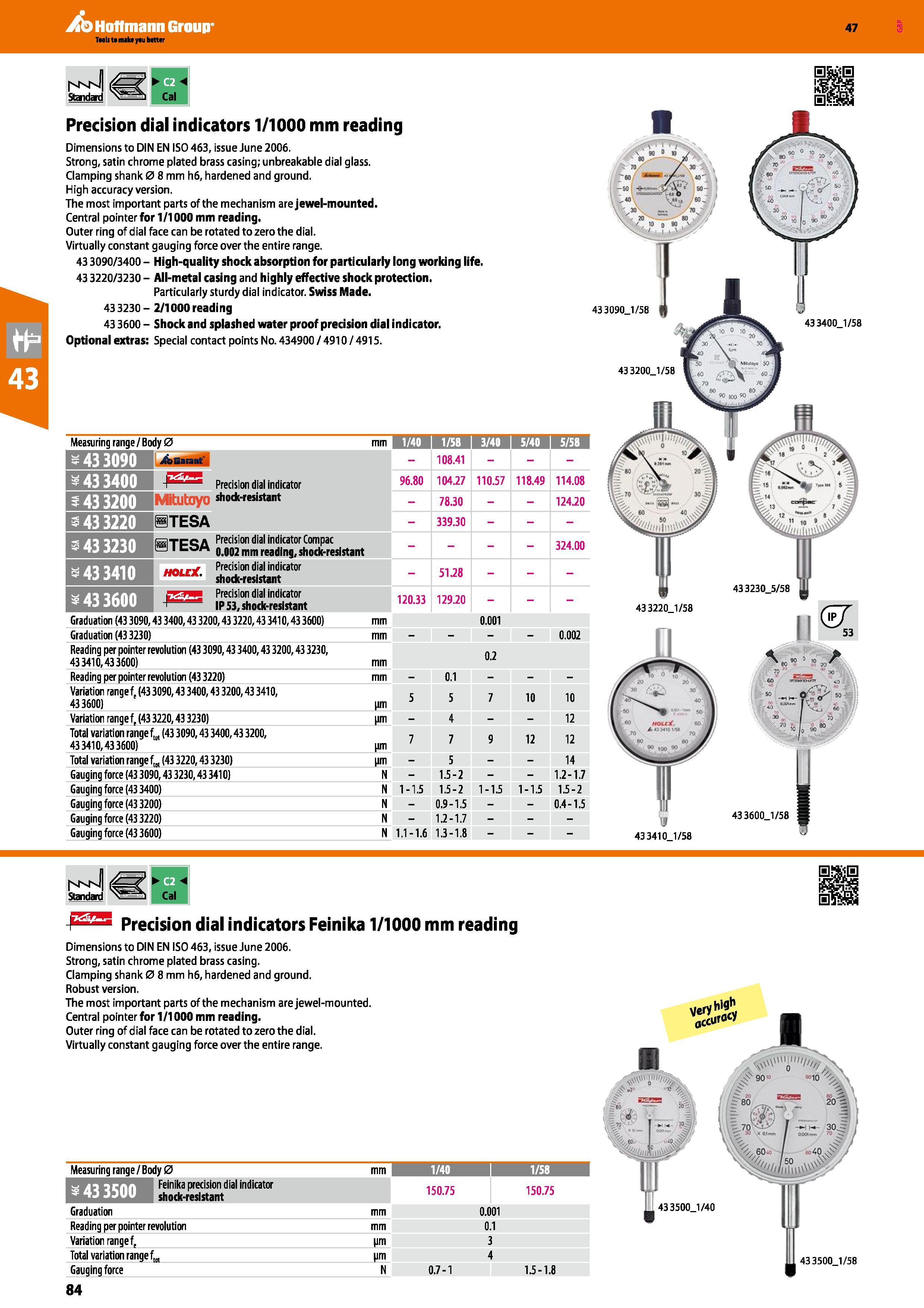

Hoffmann Group 47 Precision dial indicators 1/1000 mm reading Dimensions to DIN EN ISO 463, issue June 2006. Strong, satin chrome plated brass casing; unbreakable dial glass. Clamping shank 0 8 mm h6, hardened and ground. High accuracy version. The most important parts of the mechanism are jewel-mounted. Central pointer for 1/1000 mm reading. Outer ring of dial face can be rotated to zero the dial. Virtually constant gauging force over the entire range. 43 3090/3400 - High-quality shock absorption for particularly long working life. 43 3220/3230 - All-metal casing and highly effective shock protection. Particularly sturdy dial indicator. Swiss Made. 433230 - 2/1000reading 43 3600 - Shock and splashed water proof precision dial indicator. Optional extras: Special contact points No. 434900 / 4910 / 4915. Measuring range / Body 0 mm 1/40 I 1/58 1 3/40 1 5/40 1 5/58 -433090 X JSarant - 108.41 -433400 Precision dial indicator 96.80 104.27 110.57 118.49 114.08 5 433200 MiblbOyO shodc-resistant - 78.30 124.20 s433220 BTESA - 339.30 s433230 HTFQA Precision dial indicator Compac M 1 0.002 mm reading, shock-resistant - 324.00 M3 3410 unir Precision dial indicator shodc-resistant - 51.28 s 43 3600 Precision dial indicator 1 IP 53, shock-resistant 120.33 129.20 Graduation (43 3090,43 3400,43 3200,43 3220,43 3410,43 3600) mm 0.001 Graduation (43 3230) mm - 0.002 Reading per pointer revolution (43 3090,43 3400,43 3200,43 3230, 433410,433600) mm 0.2 Reading per pointer revolution (43 3220) mm - 0.1 Variation rangef, (43 3090,43 3400,43 3200,43 3410, 5 5 7 10 10 433600) im Variation rangef,(433220,43 3230) im - 4 12 Total variation range fm (43 3090,43 3400,43 3200, 433410,433600) im 7 7 9 12 12 Total variation range ftIt (43 3220,43 3230) im - 5 14 Gauging force (43 3090,43 3230,43 3410) N - 1.5-2 1.2-1.7 Gauging force (43 3400) N 1-1.5 1.5-2 1-1.5 1-1.5 1.5-2 Gauging force (43 3200) N - 0.9-1.5 0.4-1.5 Gauging force (43 3220) N - 1.2-1.7 Gauging force (43 3600) N 1.1-1.6 13-1.8 T‘r',rrs Precision dial indicators Feinika 1/1000 mm reading Dimensions to DIN EN ISO 463, issue June 2006. Strong, satin chrome plated brass casing. Clamping shank 0 8 mm h6, hardened and ground. Robust version. The most important parts of the mechanism are jewel-mounted. Central pointer for 1/1000 mm reading. Outer ring of dial face can be rotated to zero the dial. Virtually constant gauging force over the entire range. Measuring range/Body 0 mm 1/40 1 1/58 I Feinika precision dial indicator 150.75 150.75 Graduation mm 0.001 Reading per pointer revolution mm 0.1 Variation rangef, pm 3 Total variation range f„ urn 4 Gauging force N 0.7-1 1.5-1.8 84 433090_1/58 433400_1/58 43 3230_5/58 433220_1/58 433600_1/58 433410_1/58
