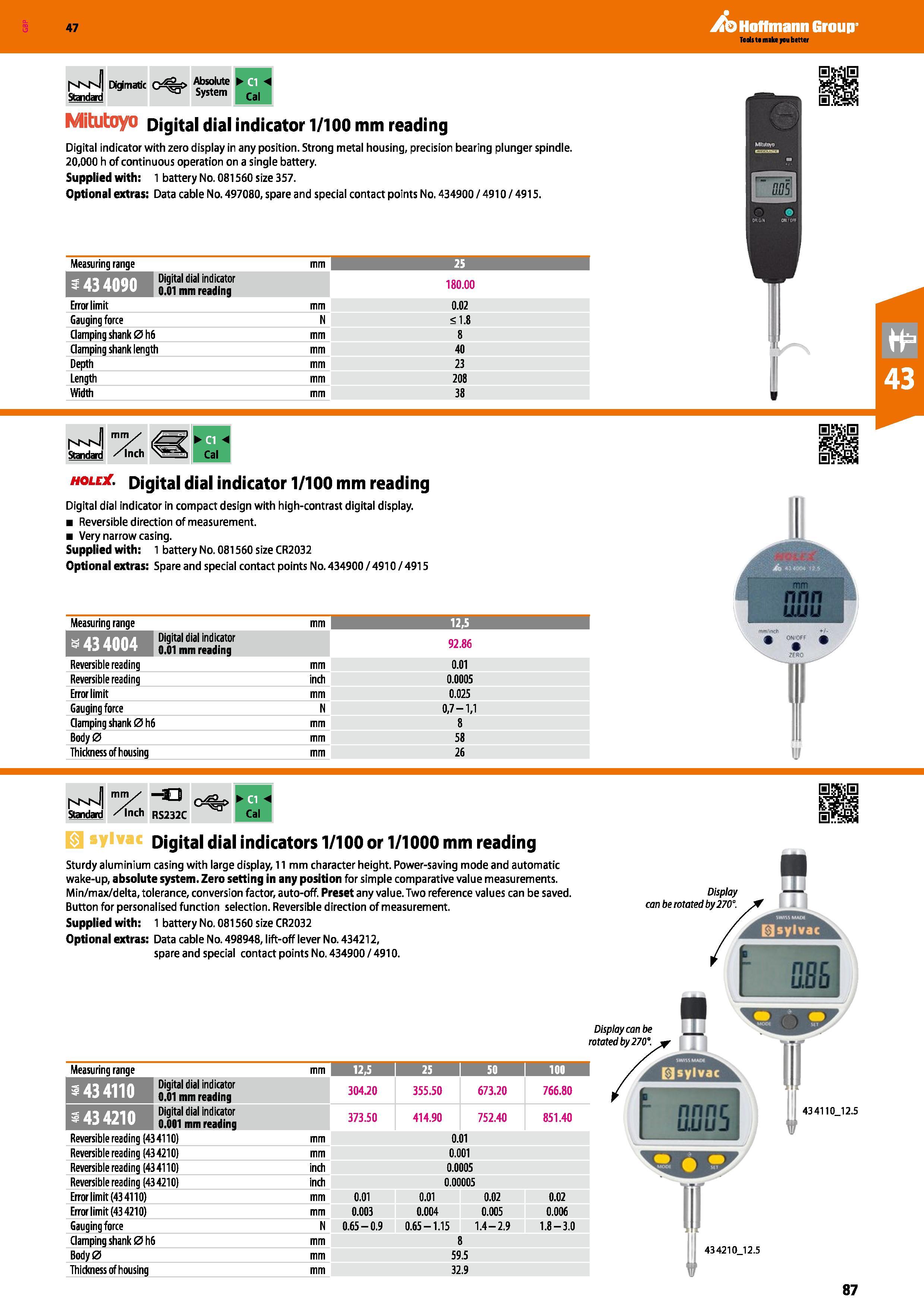

Hoffmann Group 47 Standard Digimatic Absolute System H Cal Mitutoyo Digital dial indicator 1/100 mm reading Digital indicator with zero display in any position. Strong metal housing, precision bearing plunger spindle. 20,000 h of continuous operation on a single battery. Supplied with: 1 battery No. 081560 size 357. Optional extras: Data cable No. 497080, spare and special contact points No. 434900 / 4910 / 4915. Measuring range mm 25 1 Digital dial indicator 0.01 mm reading 180.00 Error limit mm 0.02 Gauging force N <1.8 Clamping shank 0h6 mm 8 Clamping shank length mm 40 Depth mm 23 Length mm 208 Width mm 38 Cal hole . Digital dial indicator 1/100 mm reading Digital dial indicator in compact design with high-contrast digital display. Reversible direction of measurement. Very narrow casing. Supplied with: 1 battery No. 081560 size CR2032 Optional extras: Spare and special contact points No. 434900 / 4910 / 4915 Measuring range mm 12,5 I HVfVTfflVH Digital dial indicator 0.01 mm reading 92.86 Reversible reading mm 0.01 Reversible reading inch 0.0005 Error limit mm 0.025 Gauging force N 0,7-1,1 Clamping shank 0 h6 mm 8 Body0 mm 58 Thickness of housing mm 26 Standard /Inch -o RS232C C%> H Cal Digital dial indicators 1/100 or 1/1000 mm reading Sturdy aluminium casing with large display, 11 mm character height. Power-saving mode and automatic wake-up, absolute system. Zero setting in any position for simple comparative value measurements. Min/max/delta, tolerance, conversion factor, auto-crff. Preset any value. Two reference values can be saved. Button for personalised function selection. Reversible direction of measurement. Supplied with: 1 battery No. 081560 size CR2032 Optional extras: Data cable No. 498948, lift-off lever No. 434212, spare and special contact points No. 434900/4910. Display can be rotated by270°. Display can be rotated by270°. Measuring range mm 12,5 25 50 100 EVCVKVJV Digital dial indicator 0.01 mm reading 304.20 355.50 673.20 766.80 IVfVRVW Digital dial indicator 0.001 mm reading 373.50 414.90 752.40 851.40 Reversible reading (434110) mm 0.01 Reversible reading (434210) mm 0.001 Reversible reading (434110) inch 0.0005 Reversible reading (434210) inch 0.00005 Error limit (43 4110) mm 0.01 0.01 0.02 0.02 Error limit (43 4210) mm 0.003 0.004 0.005 0.006 Gauging force N 0.65-0.9 0.65-1.15 1.4-2.9 1.8-3.0 Clamping shank 0h6 mm 8 Body0 mm 59.5 Thickness of housing mm 32.9 434110_12.5 434210 87
