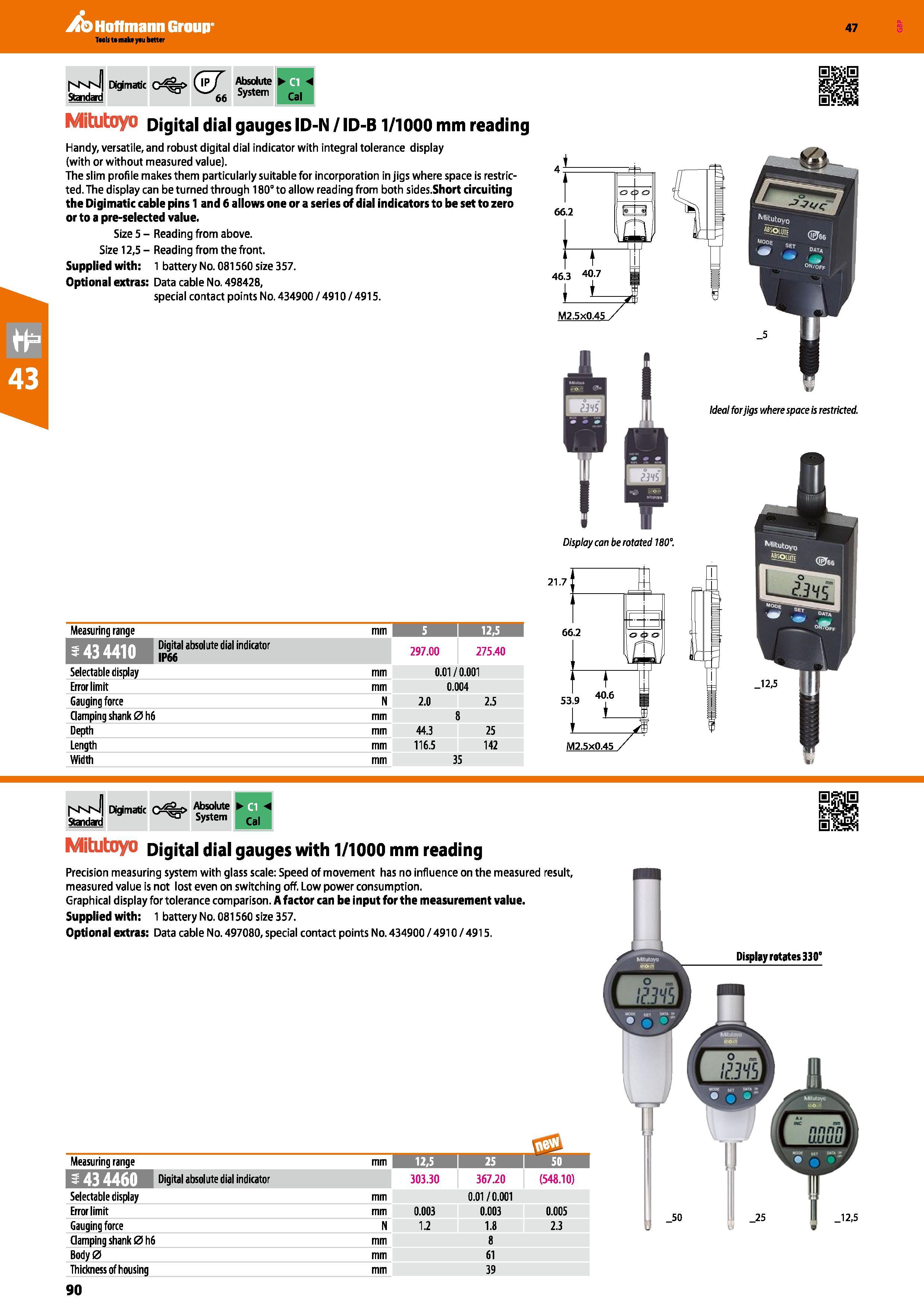

Hoffmann Group 47 Standard Digimatic c<%>& 66 Absolute System Cal Mitutoyo Digital dial gauges ID-N / ID-B1/1000 mm reading Handy, versatile, and robust digital dial indicator with integral tolerance display (with or without measured value). The slim profile makes them particularly suitable for incorporation in jigs where space is restricted. The display can be turned through 180° to allow reading from both sides.Short circuiting the Digimatic cable pins 1 and 6 allows one or a series of dial indicators to be set to zero or to a pre-selected value. Size 5 - Reading from above. Size 12,5 - Reading from the front. Supplied with: 1 battery No. 081560 size 357. Optional extras: Data cable No. 498428, special contact points No. 434900 / 4910 / 4915. Ideal forjigs where space is restricted. Display can be rotated 180°. Measuring range mm 5 1 12,5 43 4410 Digital absolute dial indicator IP66 297.00 275.40 Selectable display mm 0.01/0.001 Error limit mm 0.004 Gauging force N 2.0 2.5 Clamping shank 0 h6 mm 8 Depth mm 44.3 25 Length mm 116.5 142 Width mm 35 Digimatic 5s ute Standard S>'stem Cal Mitutoyo Digital dial gauges with 1/1000 mm reading Precision measuring system with glass scale: Speed of movement has no influence on the measured result, measured value is not lost even on switching off. Low power consumption. Graphical display for tolerance comparison. A factor can be input for the measurement value. Supplied with: 1 battery No. 081560 size 357. Optional extras: Data cable No. 497080, special contact points No. 434900 / 4910 / 4915. 90 Measuring range mm 12,5 1 25 1 50 a ute dial indicator 303.30 367.20 (548.10) Selectable display mm 0.01/0.001 Error limit mm 0.003 0.003 0.005 Gauging force N 1.2 1.8 2.3 Clamping shank 0 h6 mm 8 Body0 mm 61 Thickness of housing mm 39 Display rotates 330°
