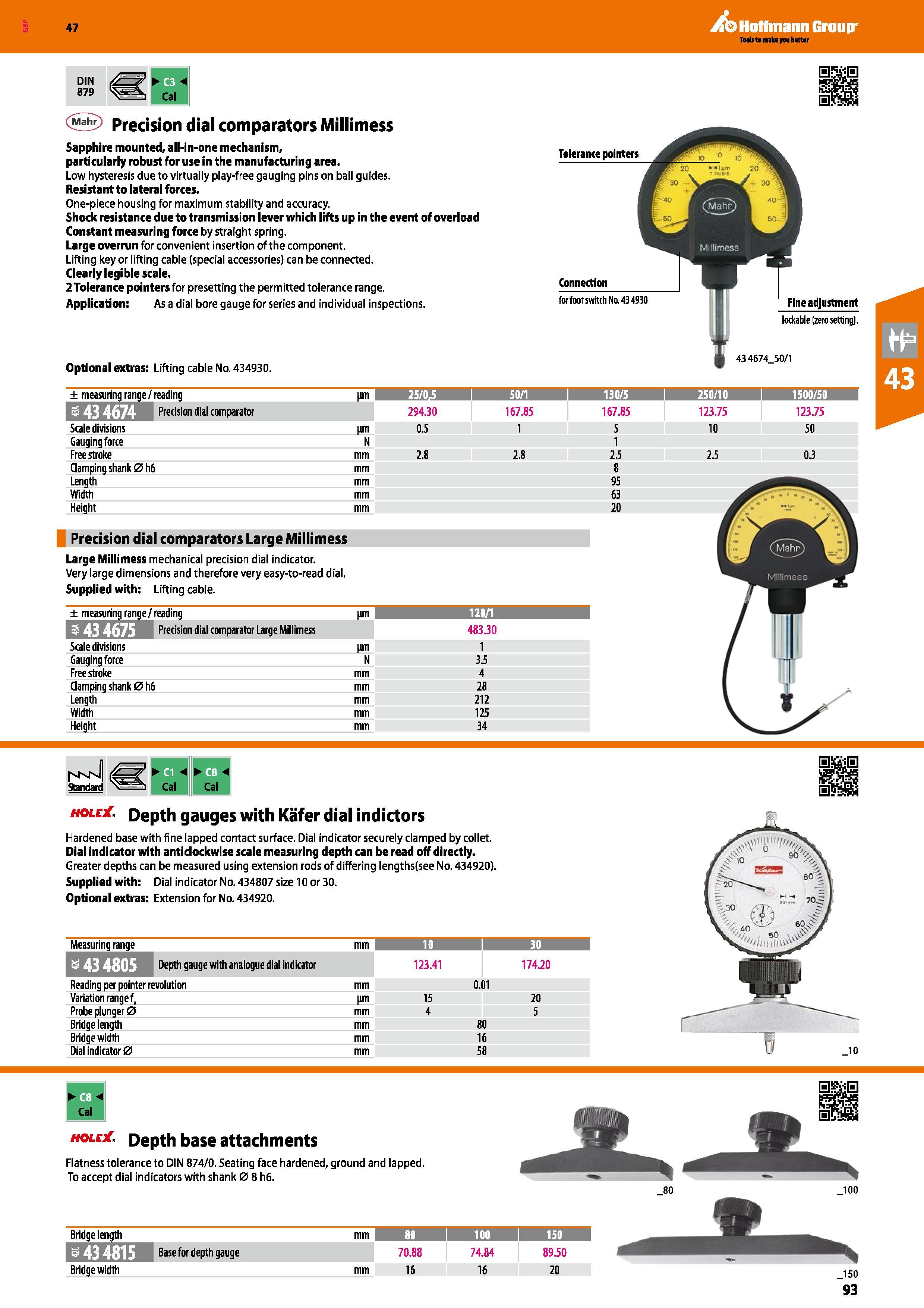

Hoffmann Group 47 DIN 879 CMahr) Precision dial comparators Millimess Sapphire mounted, all-in-one mechanism, particularly robust for use in the manufacturing area. Low hysteresis due to virtually play-free gauging pins on ball guides. Resistant to lateral forces. One-piece housing for maximum stability and accuracy. Shock resistance due to transmission lever which lifts up in the event of overload Constant measuring force by straight spring. Large overrun for convenient insertion of the component. Lifting key or lifting cable (special accessories) can be connected. Clearly legible scale. 2 Tolerance pointers for presetting the permitted tolerance range. Application: As a dial bore gauge for series and individual inspections. Optional extras: Lifting cable No. 434930. 43 4674_50/1 ± measuring I range/reading fim 50/1 130/5 250/10 1500/50 Precision dial comparator 294.30 167.85 167.85 123.75 123.75 Scale divisions urn 0.5 1 5 10 50 Gauging force N 1 Free stroke mm 2.8 2.8 2.5 2.5 0.3 Clampinq shank 0h6 mm 8 Length mm 95 Height mm 20 Precision dial comparators Large Millimess Large Millimess mechanical precision dial indicator. Very large dimensions and therefore very easy-to-read dial. Supplied with: Lifting cable. ± measuring range /reading im 120/1 Precision dial comparator Large Millimess 483.30 Scale divisions urn 1 Gauging force N 3.5 Free stroke mm 4 Clamping shank 0 h6 mm 28 Length mm 212 Width mm 125 Height mm 34 H < H < Standard N 1 J Cal Cal holex. Depth gauges with Kafer dial indictors Hardened base with fine lapped contact surface. Dial indicator securely clamped by collet. Dial indicator with anticlockwise scale measuring depth can be read off directly. Greater depths can be measured using extension rods of differing lengths(see No. 434920). Supplied with: Dial indicator No. 434807 size 10 or 30. Optional extras: Extension for No. 434920. Measuring range mm 10 1 30 ZfcCMlVB Depth gauge with analogue dial indicator 123.41 174.20 Reading per pointer revolution mm 0.01 Variation rangef, im 15 20 Probe plunger 0 mm 4 5 Bridge length Bridge width Dial indicator 0 mm 16 58 holeX Depth base attachments Flatness tolerance to DIN 874/0. Seating face hardened, ground and lapped. To accept dial indicators with shank 0 8 h6. Bridge length mm 80 1 no 150 Base for depth gauge 70.88 74.84 89.50 Bridge width mm 16 16 20
