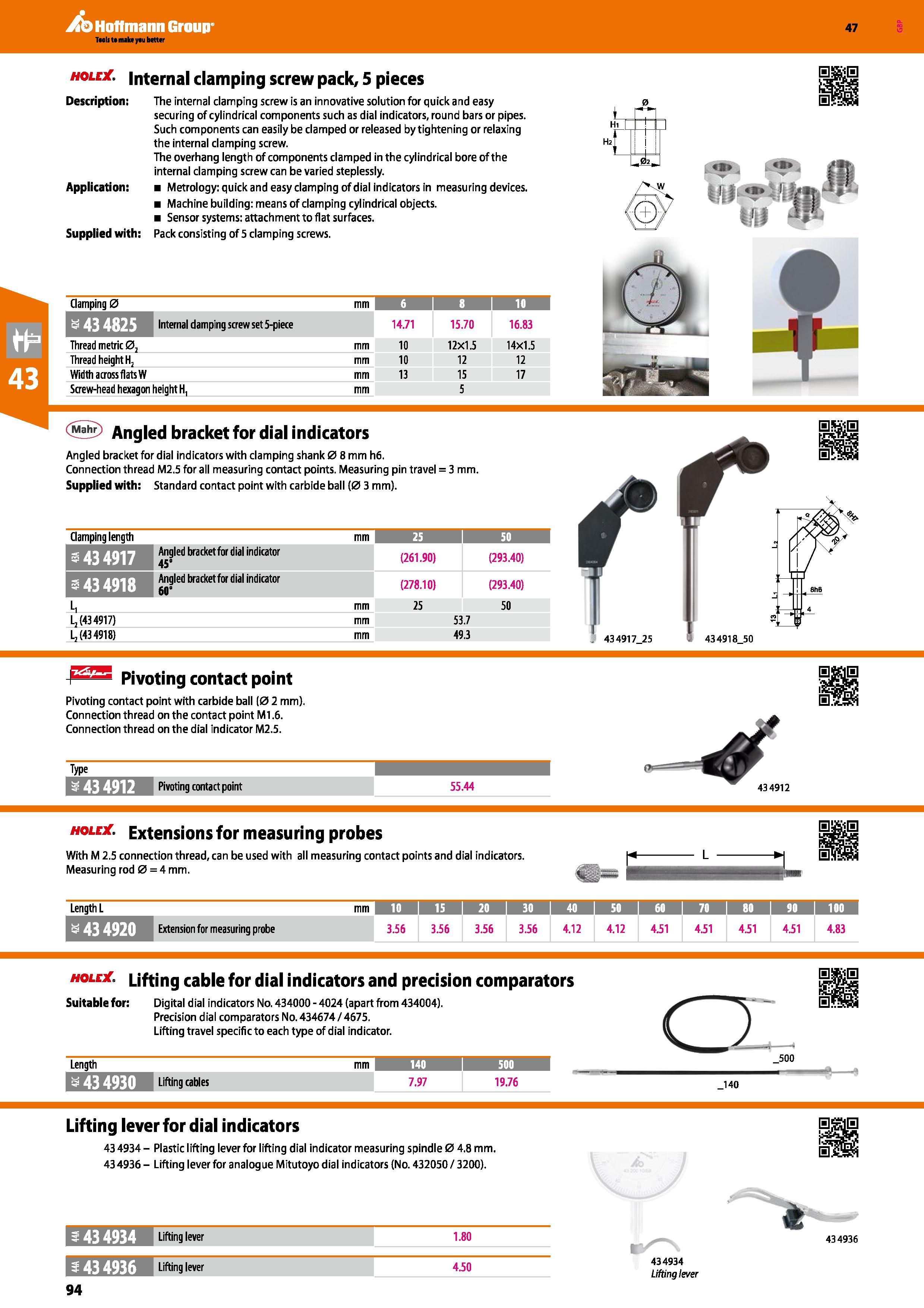

Hoffmann Group 47 hole , internal clamping screw pack, 5 pieces Description: The internal damping screw is an innovative solution for quick and easy securing of cylindrical components such as dial indicators, round bars or pipes. Such components can easily be clamped or released by tightening or relaxing the internal clamping screw. The overhang length of components clamped in the cylindrical bore of the internal clamping screw can be varied steplessly. Application: Metrology: quick and easy clamping of dial indicators in measuring devices. Machine building: means of clamping cylindrical objects. Sensor systems: attachment to flat surfaces. Supplied with: Pack consisting of 5 clamping screws. Hi H,r .02. Clamping 0 mm 6 I 8 I n 3 43 4825 Internal damping screw set 5-piece 14.71 15.70 16.83 Thread metric 0, mm 10 12x1.5 14x1.5 Thread height H2 mm 10 12 12 Width across flats W mm 13 15 17 Screw-head hexagon height H. mm 5 (Mahr) Angled bracket for dial indicators Angled bracket for dial indicators with clamping shank 0 8 mm h6. Connection thread M2.5 for all measuring contact points. Measuring pin travel; Supplied with: Standard contact point with carbide ball (0 3 mm). = 3 mm. Clamping length mm 25 I 50 Angled bracket for dial indicator 45° (261.90) (293.40) 3 43 4918 Angled bracket for dial indicator 60° (278.10) (293.40) L, mm 25 50 L2 (43 4917) mm 53.7 L2 43 4918) mm 49.3 AI 434917_25 8 434918_50 f,TrrTS Pivoting contact point Pivoting contact point with carbide ball (0 2 mm). Connection thread on the contact point Ml.6. Connection thread on the dial indicator M2.5. Type 434912 Pivoting contact point 55.44 434912 holex. Extensions for measuring probes With M 2.5 connection thread, can be used with all measuring contact points and dial indicators. Measuring rod 0 = 4 mm. Length L mm 10 1 15 I 20 ; 30 i 40 KM 60 ; 70 I 80 I 90 i 100 I S43 Extension for measuring probe 3.56 3.56 3.56 3.56 4.12 4.12 4.51 4.51 4.51 4.51 4.83 holex. Lifting cable for dial indicators and precision comparators Suitable for: Digital dial indicators No. 434000 - 4024 (apart from 434004). Precision dial comparators No. 434674/4675. Lifting travel specific to each type of dial indicator. Length mm 140 1 500 Is 43 4930 7.97 19.76 500 _140 Lifting lever for dial indicators 43 4934 - Plastic lifting lever for lifting dial indicator measuring spindle 0 4.8 mm. 43 4936 - Lifting lever for analogue Mitutoyo dial indicators (No. 432050 / 3200). Lifting lever Lifting lever 4.50 434934 Lifting lever 94 434936
